Inner Cone & Outer Cone Cable Connectors

Inner Cone Plugs

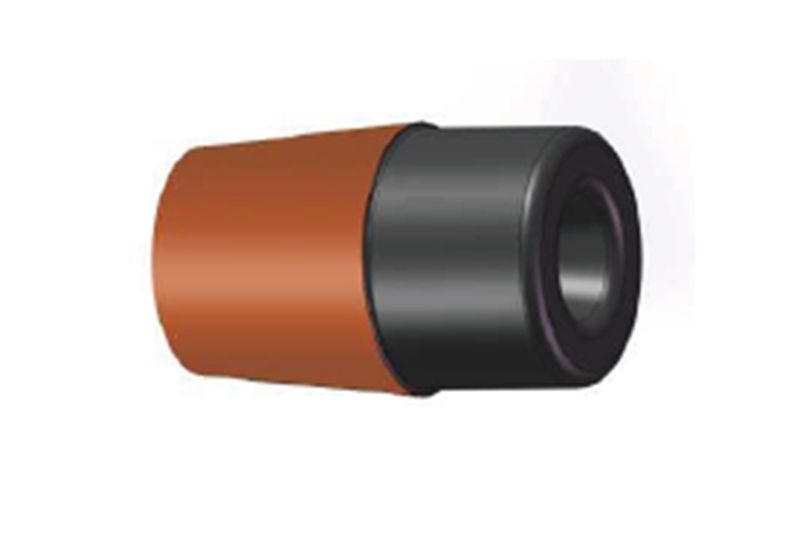

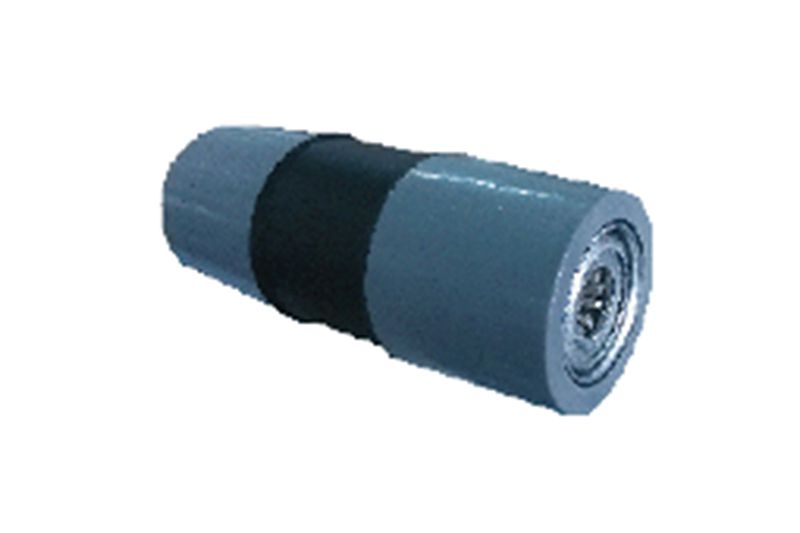

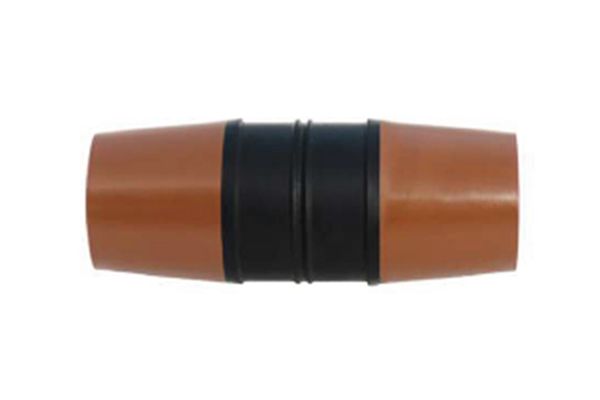

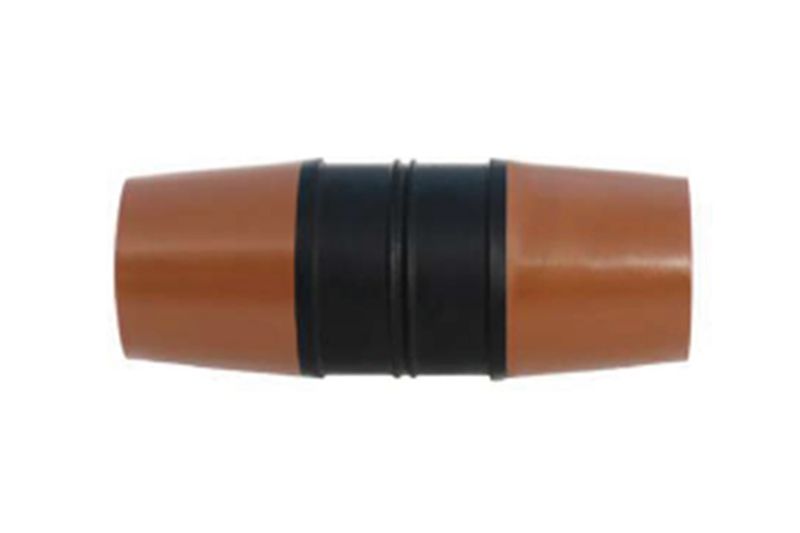

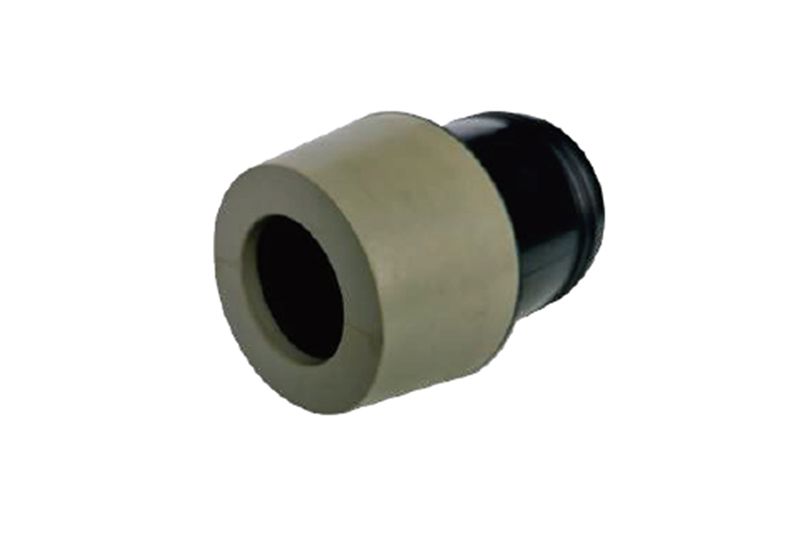

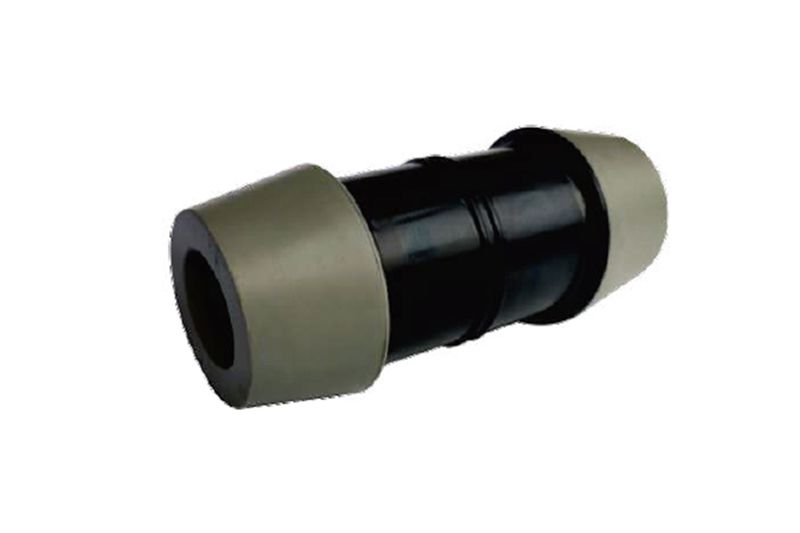

Inner cone cable connector

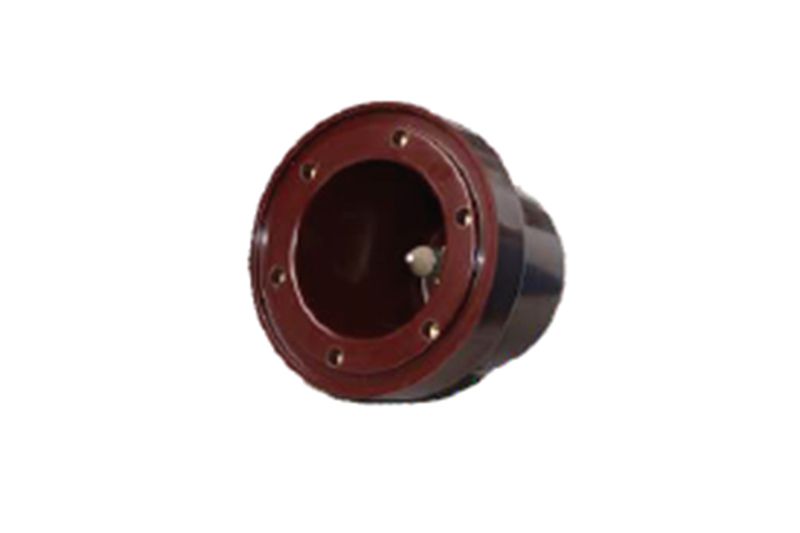

  • Inner Cone Plugs

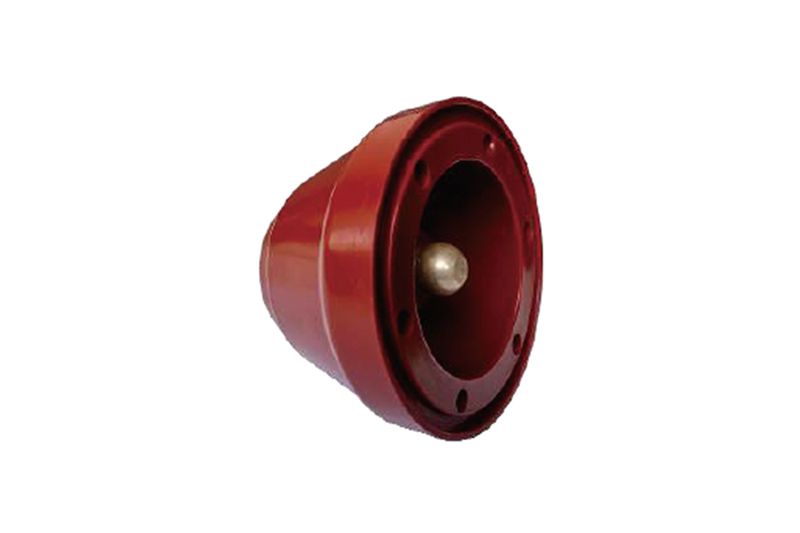

  • Inner Cone Plugs

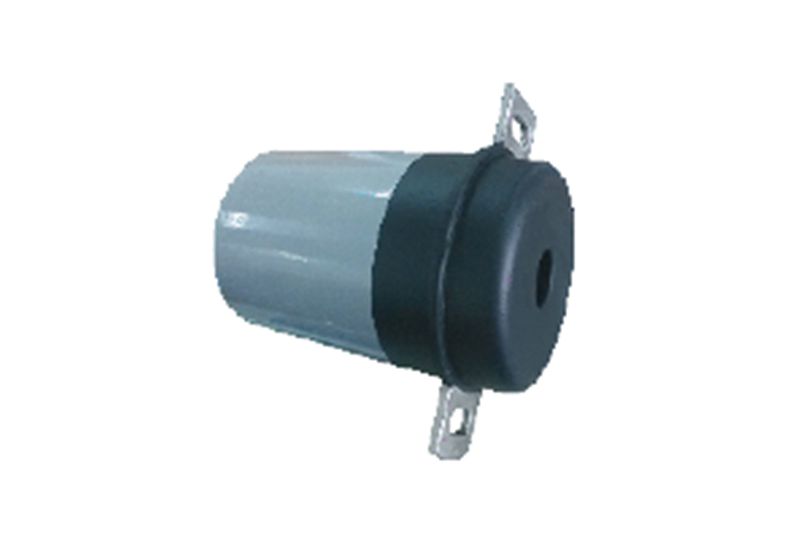

  • Inner Cone Plugs

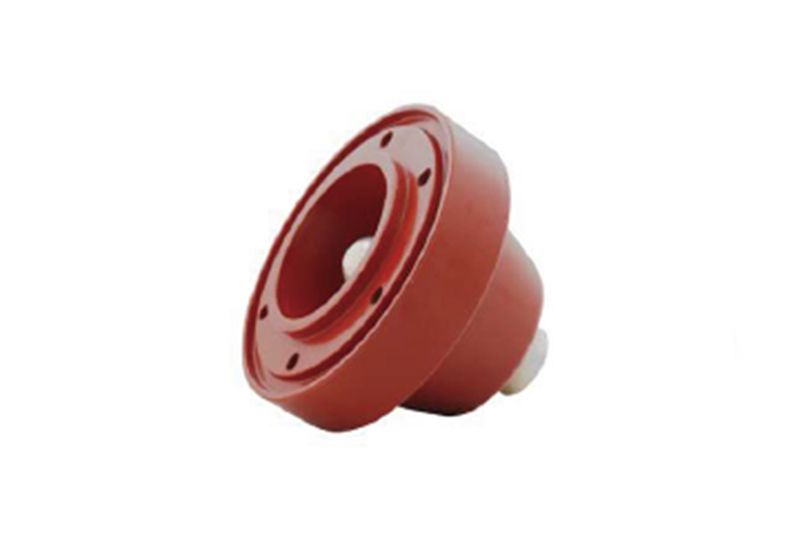

  • Inner Cone Plugs
  • Inner Cone Plugs
  • Inner Cone Plugs
  • Inner Cone Plugs
  • Inner Cone Plugs
  • Inner Cone Plugs
Request a Quote
Download
Selection Table 1
Selection Table 2
Selection Table 3
Applications

The inner cone cable connector is suitable for power systems at 24kV and below under American standards. It is used to connect electrical equipment of different units, such as ring main units, cable branch boxes, transformers, switchgear, etc., to achieve a fully insulated electrical connection between equipment and build a ring network system.

Standards

The inner cone plug fulfills Europe HD629.1 and IEC60502.4 standards, as well as China GB/T12706.4 standards. It is also approved by type test report provided by a third-party authoritative lab.

Technical Data
Voltage Class 15kV
Rated Current 600A
AC Withstand Voltage 48kV for 1min
Partial Discharge 15kV,≤10pC
Impulse Withstand Voltage (15 times for each polarity) 95kV
Screen Resistance ≤5000Ω
Temperature Rise ≤65K

Outer Cone Connectors

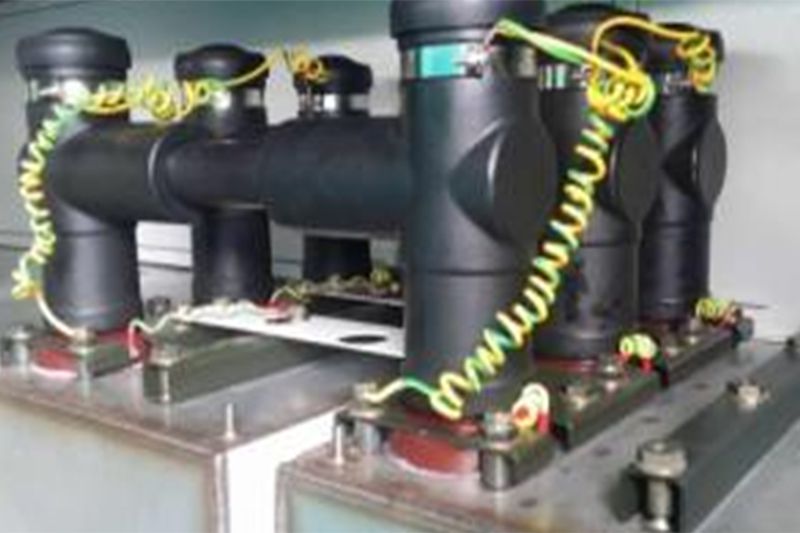

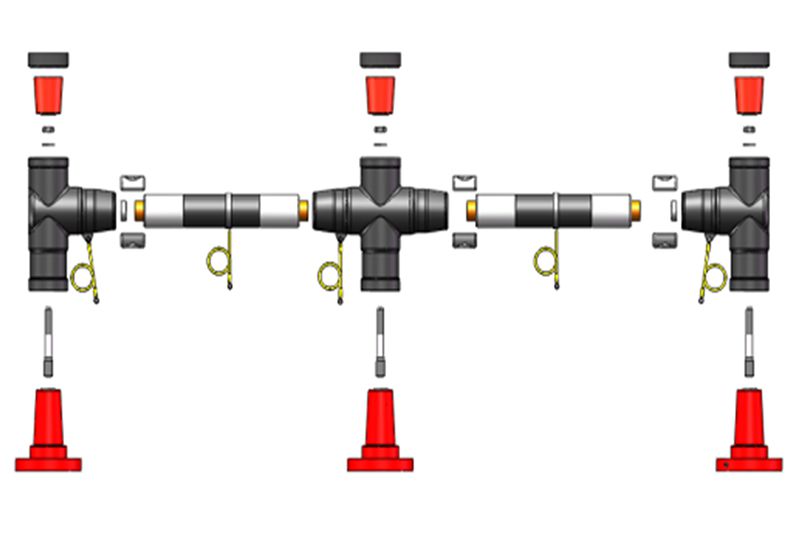

Outer cone cable connector

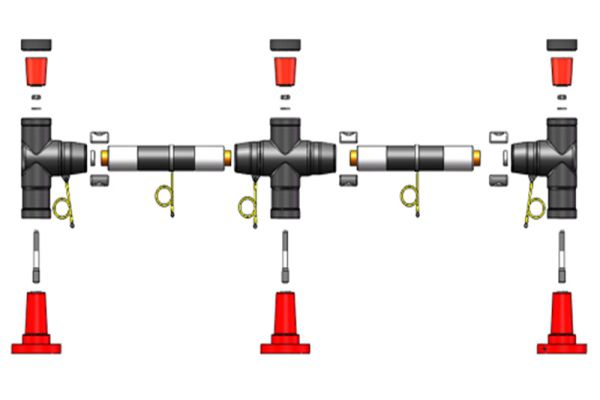

  • Outer Cone Connectors

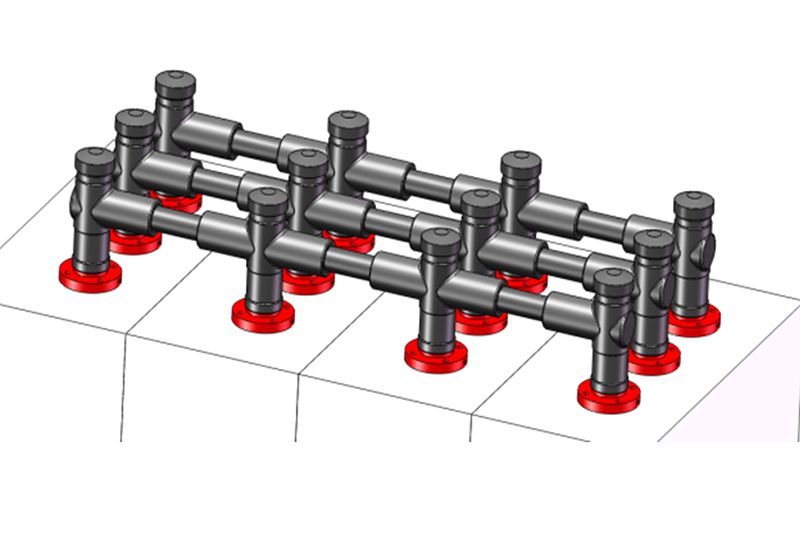

  • Outer Cone Connectors
  • Outer Cone Connectors
Request a Quote
Download
Selection Table 1
Selection Table 2
Applications

The outer cone cable connector is suitable for power systems at 40.5kV and below under American standards. It is used to connect electrical equipment of different units, such as ring main units, cable branch boxes, transformers, switchgear, etc., to achieve a fully insulated electrical connection between equipment and build a ring network system.

Standards

This product meets the requirements of Europe EN50181&50180 and IEC60502.4 standards, as well as China GB/T12706.4 standards. It is also approved by type test report provided by a third-party authoritative lab.

Technical Data
Voltage Class 40.5kV
Rated Current 1250A
AC Withstand Voltage 95kV for 1min
Partial Discharge 45kV,≤10pC
Impulse Withstand Voltage (15 times for each polarity) 200kV
Screen Resistance ≤5000Ω

The cable connector features a compact size and easy installation. OEM customized service is available such as laser printing of the client company name on the product surface. Fully tested and approved by the factory, the cable connector is directly supplied by the factory to offer you the best performance at the lowest price. The shorter delivery period saves you time and energy.
Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
