Heat Shrink Cable Repair Sleeve

Heat Shrink Cable Repair Sleeve
  • Heat Shrink Cable Repair Sleeve
  • Heat Shrink Cable Repair Sleeve
  • Heat Shrink Cable Repair Sleeve

    • Heat Shrink Cable Repair Sleeve

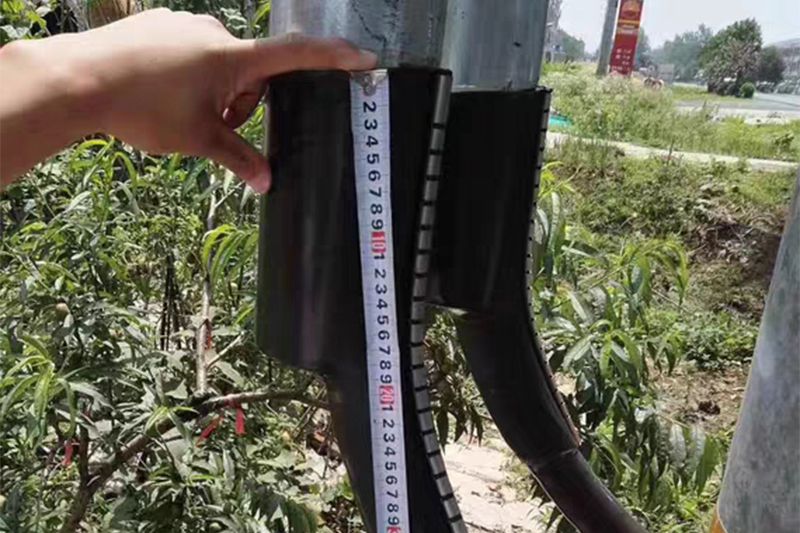

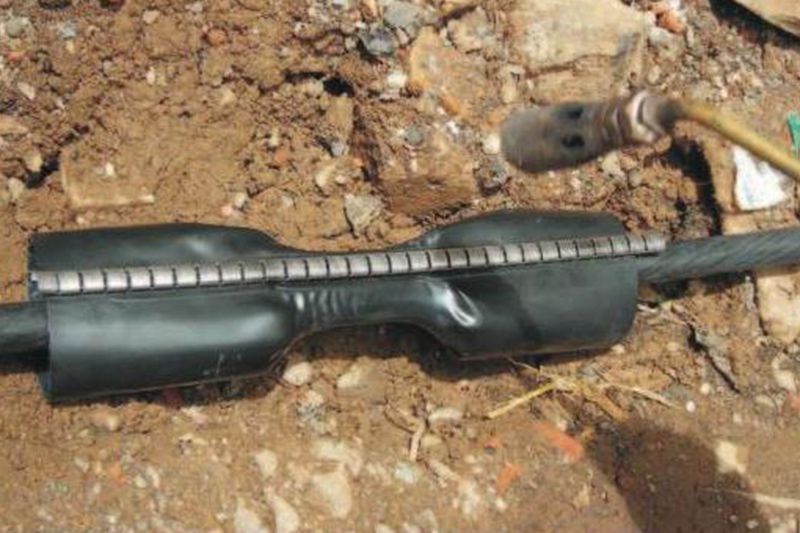

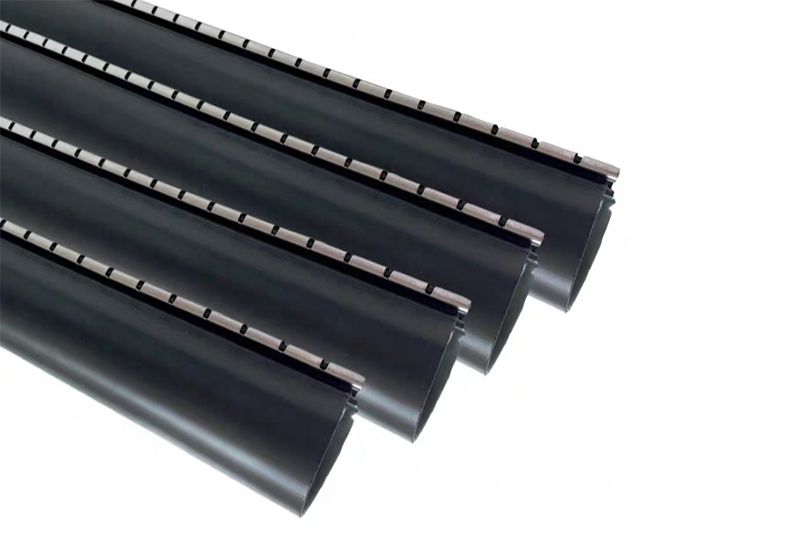

    This heat shrink cable repair sleeve is made of polyolefin. With a unique wraparound design, it is intended to be used as insulation materials on cables up to 1000V and as jacket repair materials on cables up to 35kV. The inner wall has been coated with adhesives that, when being heated, will help make a safe and watertight bond with cables. In addition, a metal clip has also been applied to fully seal the cable repair sleeve.

    Request a Quote
    Download
    Features
    • Complete range of specifications;
    • Easy installation, even in small space;
    • Excellent tensile strength, resistance to corrosion&wear and tear;
    Technical Data
    Property Test Method Standard Value
    Tensile Strength ASTM-D-638 ≥12MPa
    Elongation at Break ASTM-D-638 ≥300%
    Tensile Strength After Heat Aging (130℃×168 h) ASTM-D-5510 ≤±20%
    Elongation at Break After Heat Aging (130℃×168 h) ASTM-D-5510 ≤±20%
    Dielectric Strength IEC 60243 ≥15kV (mm)
    Volume Resistivity IEC 60093 ≥1× Ω.cm
    Brittle Temperature ISO 974 -40℃
    Heat Shock 160℃, 4h No Crack
    Water Absorption ISO 62 ≤0.1%
    Hardness (Shore A) ISO 868 ≥80
    Longitudinal Shrinkage ASTM-D-2671 ≤10%
    Eccentricity ASTM-D-2671 ≤30%
    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
