    Heat Shrink Anti-Tracking Rain Shed

    This heat shrink anti-tracking rain shed is used for extending the creepage path for cable terminations. It is made of quality polyolefin that ensures excellent insulation performance. In addition, adhesives are smeared along the inner wall to deliver outstanding sealing performance. The anti-tracking rain shed is applicable for switch-gear and low-to-high voltage equipment, since it can avoid tracking, outdoor pollution flashover and creepage.

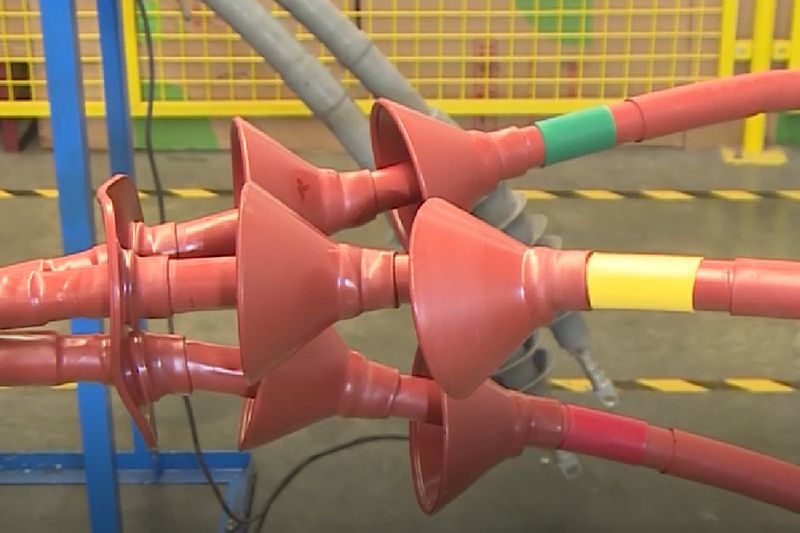

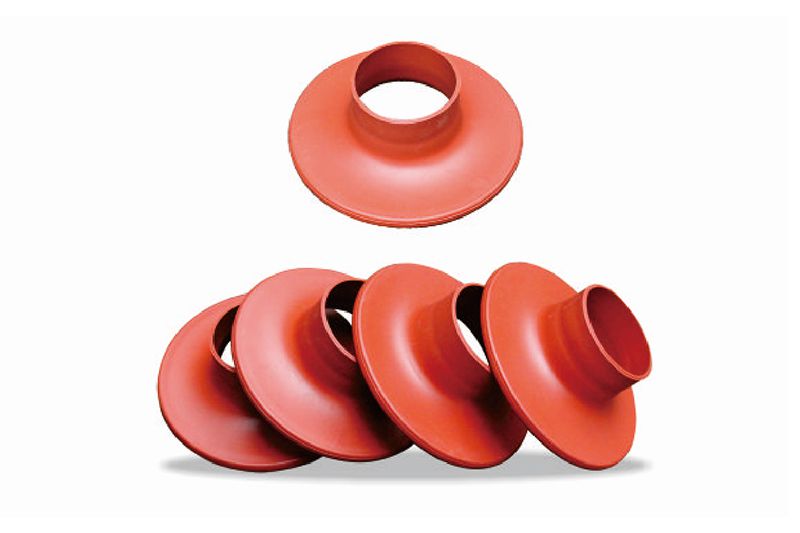

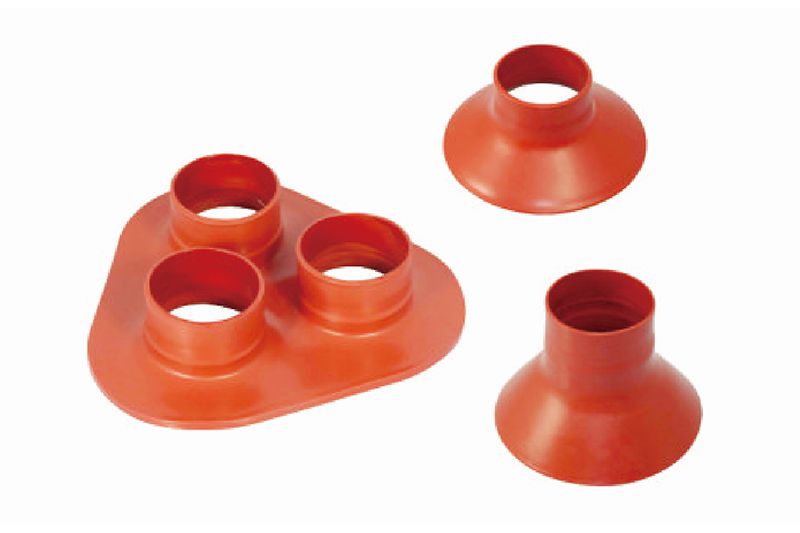

    In WOER, two types of rain sheds are supplied, one with a tilted surface, or WRSSQ, and the other with a flat surface, or WRSRS.

    Technical Data
    Property Test Method Standard Value
    Tensile Strength ASTM-D-638 ≥12MPa
    Elongation at Break ASTM-D-638 ≥300%
    Tensile Strength After Heat Aging (130℃×168h) ASTM-D-5510 ≤±30%
    Elongation at Break After Heat Aging (130℃×168h) ASTM-D-5510 ≤±30%
    Volume Resistivity IEC 60093 ≥1× Ω.cm
    Dielectric Strength IEC 60243 ≥15kV (mm)
    Tracking Strength IEC 60587 1A3.5
    Dielectric Constant IEC 60250 ≤5
    Heat Shock 160℃, 4h No Crack
    Water Absorption
    (23±2)℃ 24h     		ISO 62 ≤0.1%
    Hardness (Shore A) ISO 868 ≥80
    Brittle Temperature ISO 974 -40℃
    Dimensions

    WRSSQ SERIES: 1-core

    Spec. As Supplied (mm) After Recovered (mm)
    Inner Diameter
    (±5)     		Wall Thickness
    (±20%)     		Inner Diameter
    (±5)     		Wall Thickness
    (±20%)
    WRSSQ-35/17
    		 35 1.9 17 2.7
    WRSSQ-40/24
    		 40 1.9 24 2.7
    WRSSQ-50/24
    		 50 1.9 24 2.7
    WRSSQ-60/32
    		 60 2.4 32 4.0
    WRSSQ-70/32
    		 70 2.4 32 4.0

    WRSSQ SERIES: 3-core

    Spec. As Supplied (mm) After Recovered (mm)
    Inner Diameter
    (±5)     		Wall Thickness
    (±20%)     		Inner Diameter
    (±5)     		Wall Thickness
    (±20%)
    WRSSQ-35/16
    		 35 1.1 16 2.7
    WRSSQ-45/22
    		 45 1.1 22 3.0
    WRSSQ-50/22
    		 50 1.1 22 3.0

    WRSRS SERIES

    Spec. D (mm)((±5) As Supplied (mm) After Recovered (mm)
    Inner Diameter
    (±5)     		Inner Diameter
    (±5)     		Wall Thickness
    (±0.4)
    WRSRS-30/12
    		 90 30 12 2.8
    WRSRS-35/12
    		 90 35 12 2.8
    WRSRS-40/20
    		 120 40 20 2.8
    WRSRS-45/20
    		 120 45 20 2.8
    WRSRS-50/20
    		 120 50 20 2.8
    WRSRS-55/20
    		 120 55 20 2.8
    WRSRS-60/20
    		 120 60 20 2.8
    WRSRS-75/30
    		 140 75 30 2.6
    WRSRS-80/30
    		 140 80 30 2.6
