    Heat Shrink Cable Entry Seal / Cable Feedthrough

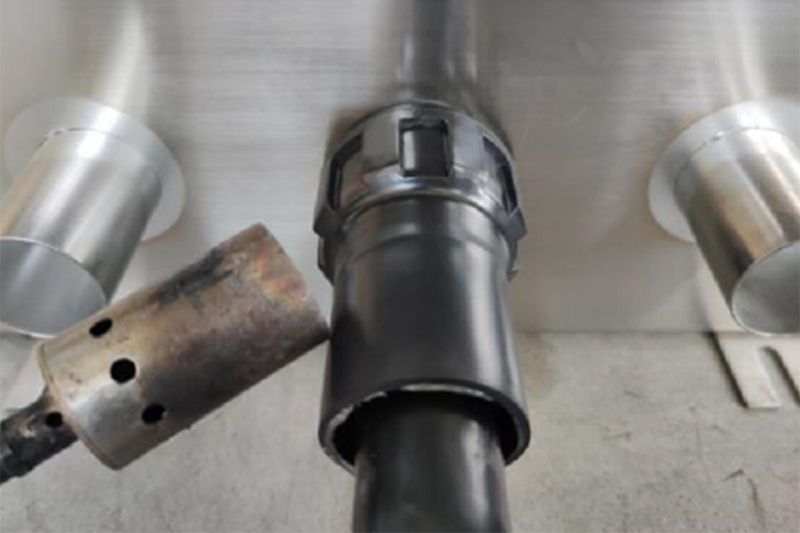

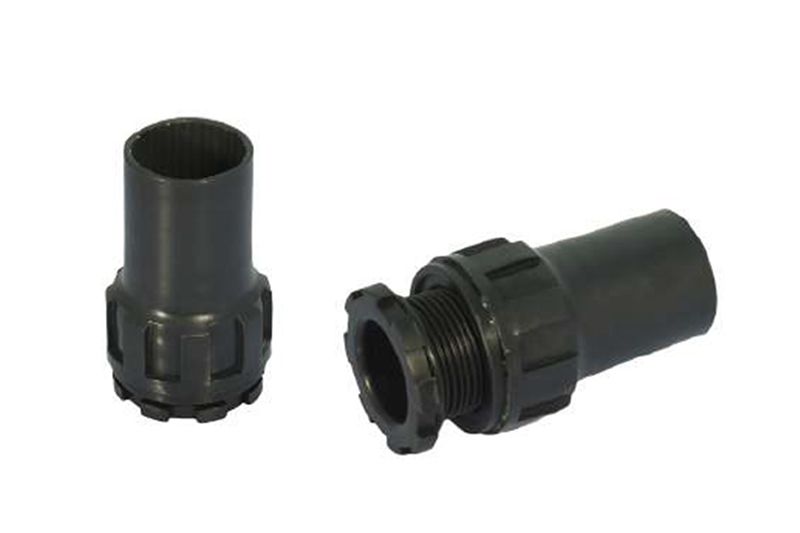

    This heat shrink cable feedthrough, or cable entry seal, protects and seals cables when they pass through connection boxes, bulkheads or other enclosures. Damages caused by the friction between the cables and a wall will also be avoided. This cable entry seal is made of flame-retardant polyolefin that is light and non-toxic. It also features brilliant dielectric properties, excellent insulation performance and outstanding resistance to chemical corrosion. The heat shrink feedthrough has adhesive lining that helps make a safe and watertight bond with the cables.

    Download
    Selection Table
    Specification
    Technical Data
    Property Test Method Standard Value
    Tensile Strength ASTM ≥ 10MPa
    Elongation at Break ASTM ≥300%
    Tensile Strength After Heat Aging (130℃×168h) ASTM ≤±20%
    Elongation at Break After Heat Aging (130℃×168h) ASTM ≤±20%
    Water Absorption ISO 62 ≤0.1 %
    Dielectric Strength IEC 60243 ≥20kV (mm)
    Volume Resistivity IEC 60093 ≥1x Ω.cm
    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
