Epoxy Bushing

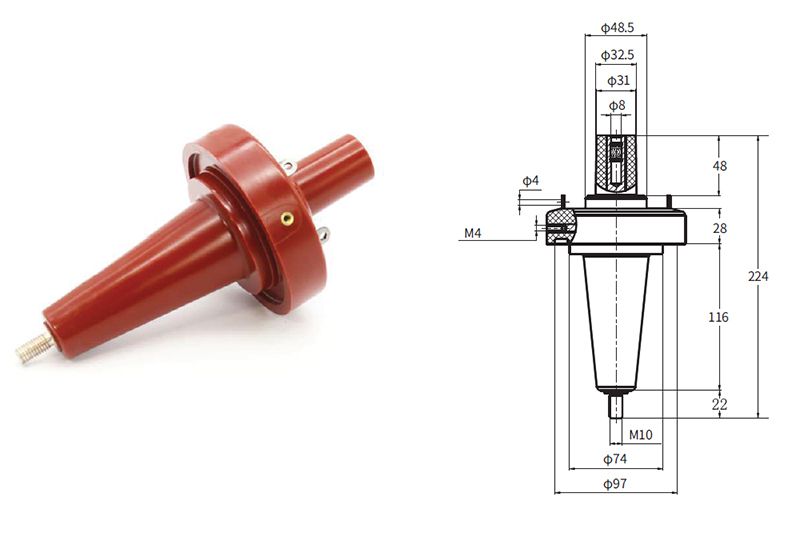

Interface A Bushing (250A)

250A epoxy bushing meets the requirement of EN50181 standard on the design of Type-A interface. It is made of epoxy resins with one end sealed within SF6 or high voltage insulating oil and the other end suitable for connection with European 250A elbow connector or European 250A straight connector. The bushing is applicable for connecting the cabinet body and 250A elbow connector or European 250A straight connector.

We provide various types of this product as below

WETGZ-24/250
250A Plug-in Elbow Connector
Download

Technical Data

Voltage Class 12kV 24kV
Continuous Current 250A 250A
AC Withstand Voltage 42kV for 1 min 65kV for 1 min
Partial Discharge 13.2kV, 10pC 26.4kV, 10pC
Impulse Withstand Voltage (10 times for each polarity) 75kV 125kV
WEATG-CQ12/250
250A Plug-in Elbow Connector
Download

Technical Data

Voltage Class 12kV
Continuous Current 250A
AC Withstand Voltage 42kV for 1 min
Partial Discharge 13.2kV, 10pC
Impulse Withstand Voltage(10 times for each polarity) 75kV

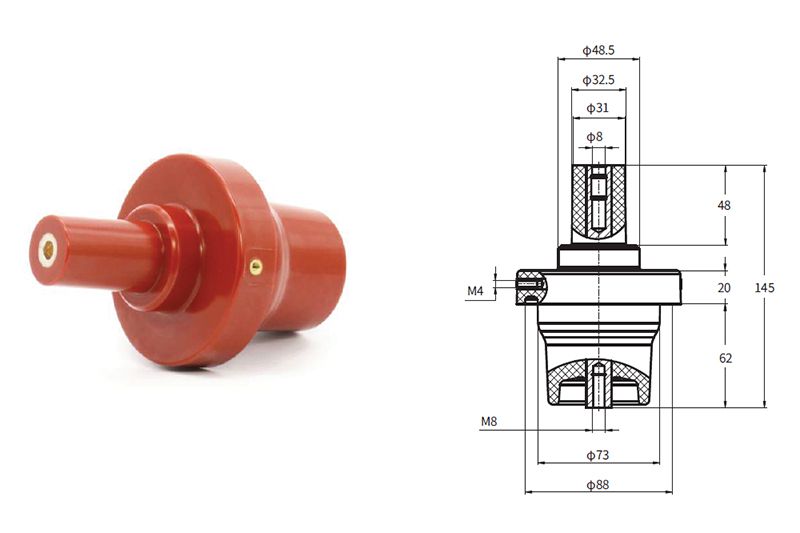

Interface C Bushing (630A)

630A epoxy bushing fulfills the standard of EN50181 in design and is made of epoxy resins. One terminal is sealed within SF6 or high-voltage insulating oil and the other terminal can connect with the European T connector or insulating cap. It is applied in connecting the cabinet body and European T connector.

We offer various types of this product below

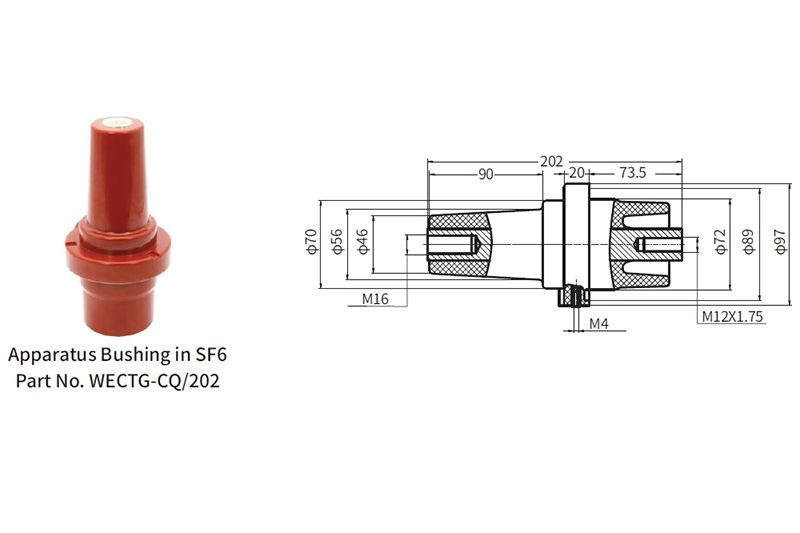

WECTG-CQ/202
250A Plug-in Elbow Connector
Download

Technical Data

Voltage Class 12kV 24kV
Continuous Current 630A 630A
AC Withstand Voltage 42kV for 1 min 65kV for 1 min
Partial Discharge 13.2kV, 10pC 26.4kV, 10pC
Impulse Withstand Voltage(10 times for each polarity) 75kV 125kV
WECTG-CQ/285
250A Plug-in Elbow Connector

Technical Data

Voltage Class 12kV
Continuous Current 630A
AC Withstand Voltage 42kV for 1 min
Partial Discharge 13.2kV, 10pC
Impulse Withstand Voltage(10 times for each polarity) 75kV

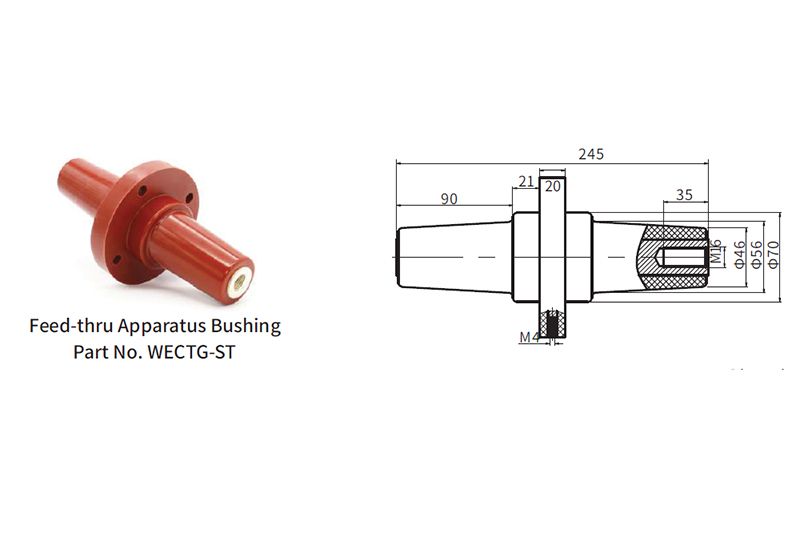

WECTG-ST
250A Plug-in Elbow Connector

Technical Data

Voltage Class 12kV 24kV
Continuous Current 630A 630A
AC Withstand Voltage 42kV for 1 min 65kV for 1 min
Partial Discharge 13.2kV, 10pC 26.4kV, 10pC
Impulse Withstand Voltage(10 times for each polarity) 75kV 125kV
Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
