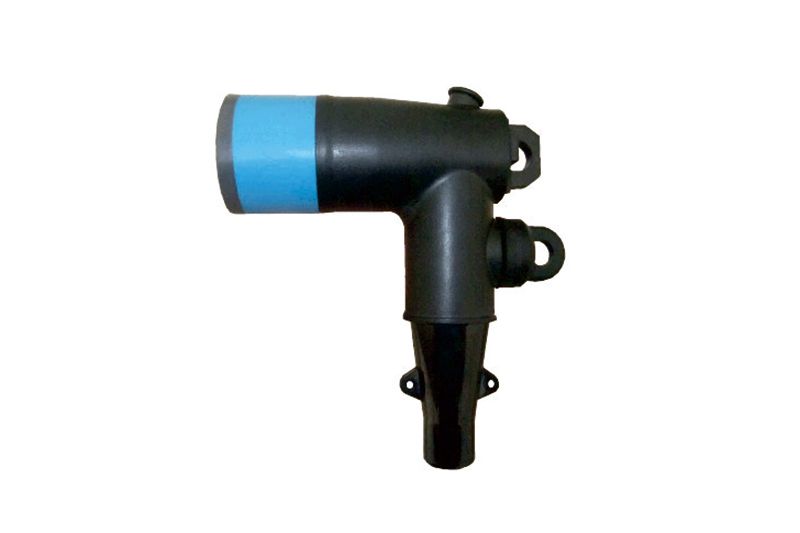

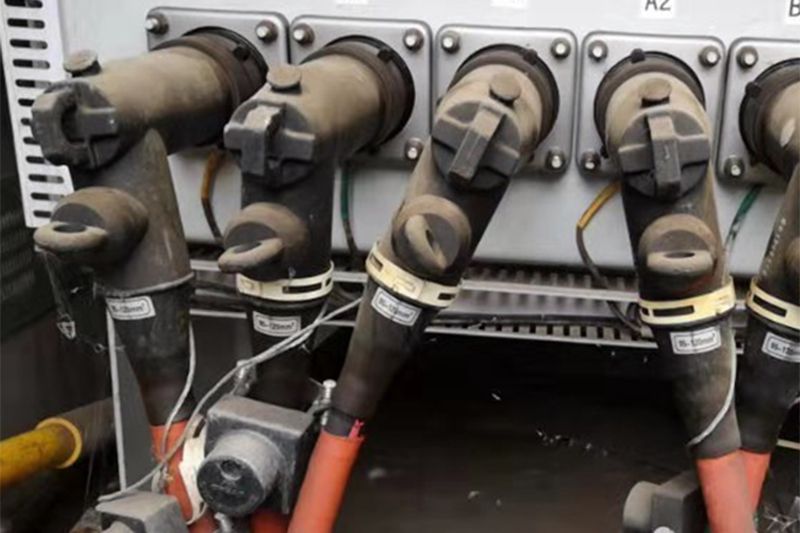

200A Loadbreak Elbow Connector

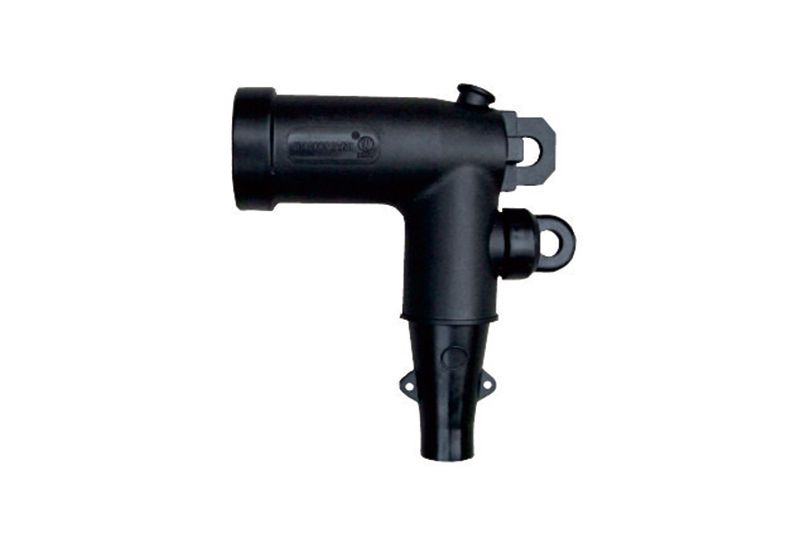

250A Plug-in Elbow Connector
  • 250A Plug-in Elbow Connector
  • 250A Plug-in Elbow Connector

    • American 200A elbow connector is suitable for 200A electrical systems in the United States. It is widely used in American pad-mounted transformers, ring main units, cable branch boxes, underground transformers, and high-voltage electrical connections with other electrical equipment. Compatible jointing devices include single feed-thru bushing, dual feed-thru bushing, 200A interface for bus bar, 200A interface for etc. Product interfaces are in compliance with the design standard of 200A bushing in IEEE 386.

    Request a Quote
    Features
    • The loadbreak elbow connectors feature high quality in their EPDM rubber raw material, which ensures strong insulation and protection with powerful mechanical properties.
    • It offers fully insulating, sealing, and shielding solutions.
    • The well-compressed appliance guarantees the reliability of the application and more compact size compared to other configurations.
    • The testing point can be installed with a electriferous display or fault indicator to show the charged and fault status.
    • The conductive rod connector is equipped with arc extinguishing function as a load switch to conduct or cut 200A current, except for cutting current during a malfunction.
    • Design of the inner and external screens of the shielding-type plug optimizes the electric field structure and uniforms the exterior shielding layer, with grounding resistance of less than 5000Ω, so as to effectively keep the electric potential of the outer surface of the cable connector at zero to ensure the safety of the maintenance operator.
    • The cold shrink tubing compression sealing between the plug end and the cable prevents cable moisture intrusion. It meets the requirement of industrial IEEE 386-2006 standard.
    Voltage Class 15kV 24kV
    Continuous Current 200A 200A
    AC Withstand Voltage 42kV/5min 54kV/5min
    Partial Discharge 15kV, ≤ 10pC 26.8kV, ≤ 10pC
    Impulse Withstand Voltage (10 times for each polarity) 95kV 125kV
    Switching Current 14.4kV, 200A,10 times 26.3kV, 200A, 10 times
    Screen Resistance 5000Ω 5000Ω
    Cable Cross Section 25-120mm² 25-120mm²
    15kV 200A Loadbreak Elbow Connector

    15kV 200A Loadbreak Elbow Connector

    Request a Quote
    Download
    25kV 200A Loadbreak Elbow Connector

    25kV 200A Loadbreak Elbow Connector

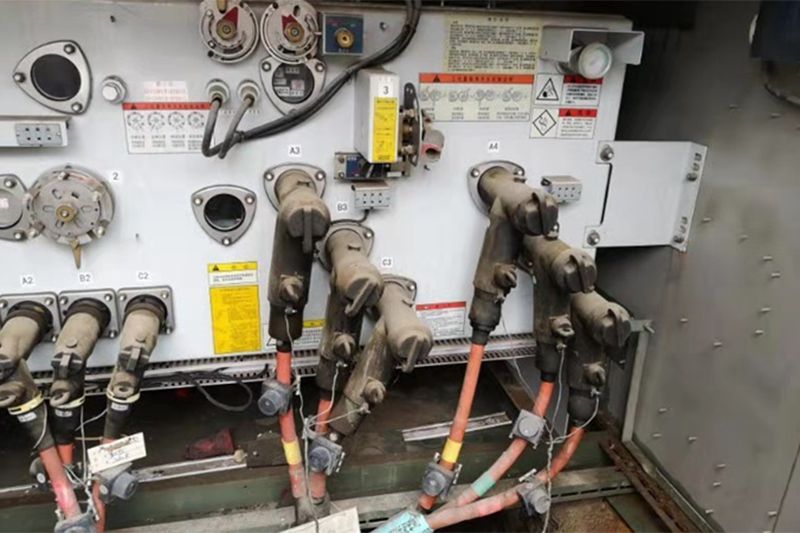

    Applications
    The 25kV 200A loadbreak elbow connector is suitable for power systems at 25kV and below under American standards. It is used to connect cables and electrical equipment, such as ring main units, cable branch boxes, transformers, switchgear, etc., to achieve a fully insulated electrical connection between cables and equipment and build a ring network system.

    Request a Quote
    Download

    Standard and Dimensions
    It meets the requirements of IEEE386 in the Americas.

    Technical Data
    Rated Voltage (U0/U) 15.2/26.3kV
    Continuous Current 200A
    AC Withstand Voltage 40kV for 1min
    Partial Discharge 19kV,≤3pC
    Impulse Withstand Voltage (10 times for each polarity) 125kV
    Switching Current 26.3kV, 200A, 10 times
    Screen Resistance ≤5000Ω
    Features

    Made of high quality EPDM rubber material, the product can provide fully shielded separable connection when mated with proper epoxy bushing products. Besides, it enjoys excellent mechanical properties. OEM customized service is available such as laser printing of the client company name on the product surface. Fully tested and approved by the factory, the product is directly supplied by the factory to offer you the best performance at the lowest price. The shorter delivery period saves you time and energy.

    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
