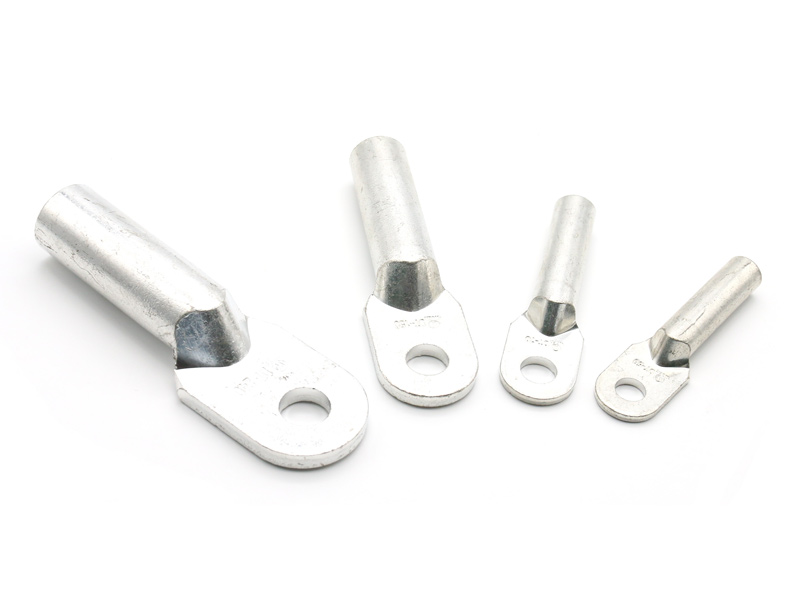

Copper Lug (with barrier), DTM Series

Copper Lug (with barrier)

DTM series copper lug can be used to connect the electric wire, the power cable and the electrical equipment of a power distribution. It can also be used with cold and heat shrink outdoor termination kits.

Request a Quote
Download
Product Manual
Test Report of Model DTM-95
Test Report of Model DTM-120
Test Report of Model DTM-400
Features

The cable lug is made of quality T3 copper rods, with a copper content ≥99.7% and good conductivity performance (conductivity rate ≥86% IACS). The raw copper material meets the national standard of GB/T 5231-2001.

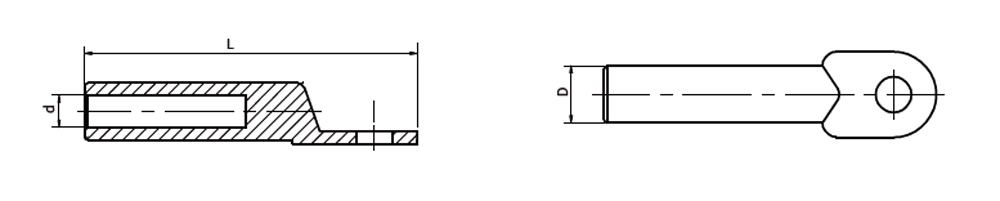

Structure Chart
Copper Lug (with barrier)
Specifications
Model Main dimensions
Outer diameter D Inner diameter d Length L
DTM-10 9 5.5 66
DTM-16 10 6.0 67
DTM-25 11 7.0 70
DTM-35 12 8.5 79
DTM-50 14 9.6 87
DTM-70 16 12.0 95
DTM-95 18 13.0 105
DTM-120 20 15.0 112
DTM-150 22 16.0 118
DTM-185 25 18.0 125
DTM-240 27 20.0 136
DTM-300 30 23.0 160
DTM-400 34 26.0 165
DTM-500 38 29.0 190
DTM-630 45 34.0 220
