Cross Bonding Link Box

Cross Bonding Link Box
  • Cross Bonding Link Box
  • Cross Bonding Link Box
    • Request a Quote
    • Model: WJC
    Features

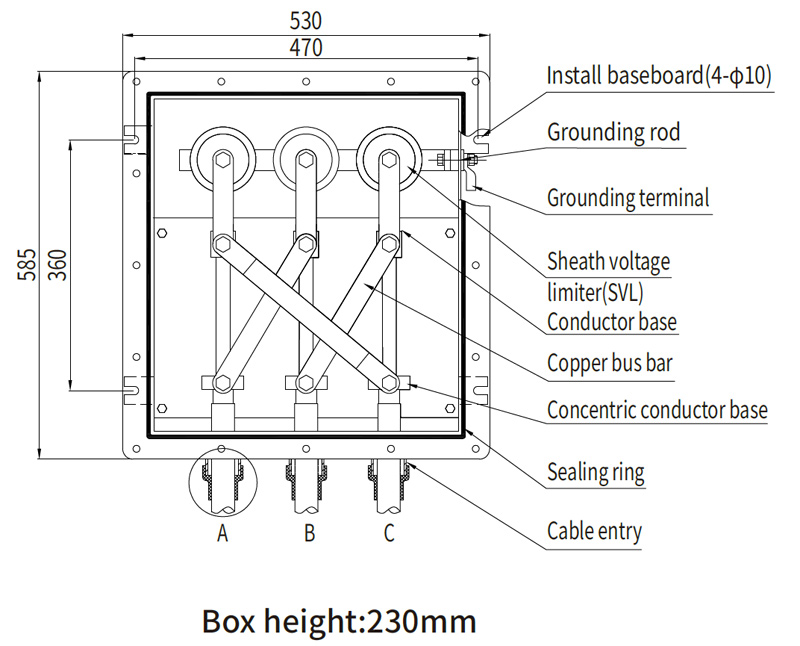

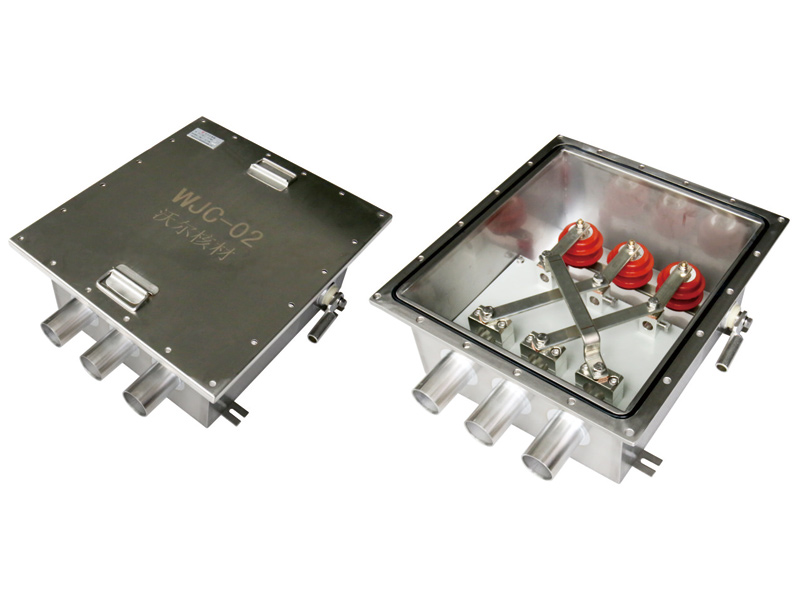

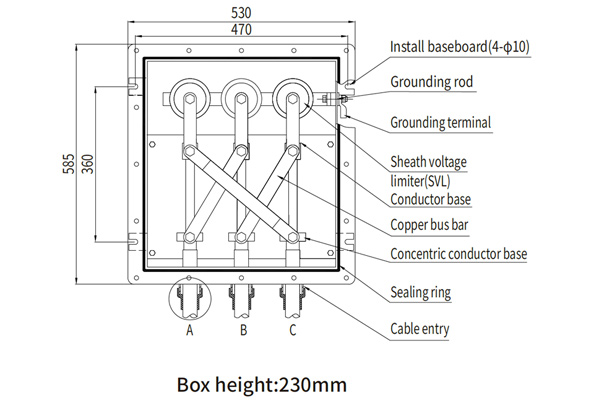

    • This link box is used for the cross bonding of the metal sheath of the single-core cable by limiting the surge overvoltage on both sides of the insulation segment of the metal sheath and the insulation joint, controlling the induced voltage of the metal sheath, and lowering (or eliminating) the eddy current on the sheath layer. This can prevent the breakdown of the cable outer sheath and make sure the safe operation of the cable;
    • The sheath is made of 304 stainless steel, the interior of which can be filled with resin;
    • Small volume, light, easy to install and the sheath protector can be replaced.
    Download
    Test Report
    Product Manual
    Electrical Performance
    Test Item Technical Requirements
    DC voltage withstand test Neither breakdown nor flashover shall occur at 20kV for 1 min
    Impulse voltage test Neither breakdown nor flashover shall occur at 10 positive and 10 negative impulse of 40kV (peak value)
    Insulation resistance test between copper bar and housing Not less than 20MΩ
    Contact resistance test of copper bar Nor more than 20μΩ
    Main Electrical Performance of SVL (sheath voltage limiter)
    Test item BHQ-7/600 BHQ-10/600
    DC 1mA reference voltage 40kV 5.8kV
    Rectangular wave capacity 600A 600A
    Residual voltage ratio K≤2 K≤2
    Current capacity 100kA 100kA
    Rated voltage 2.8kV 4kV
    Residual voltage of nominal discharge ≤7kV ≤10kV
    Ordering information: (For all HV cable accessories)
    • Cable configuration and the cross-sectional area of earth wire shall be provided when ordering.
    • Welcome to contact our sales manager for any special requirements before placing your order.
