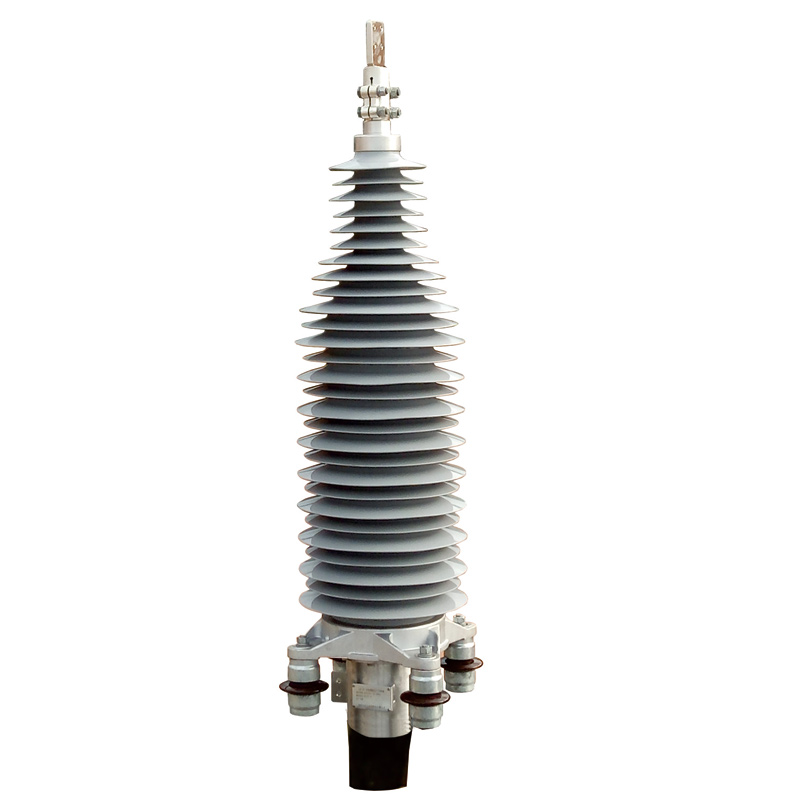

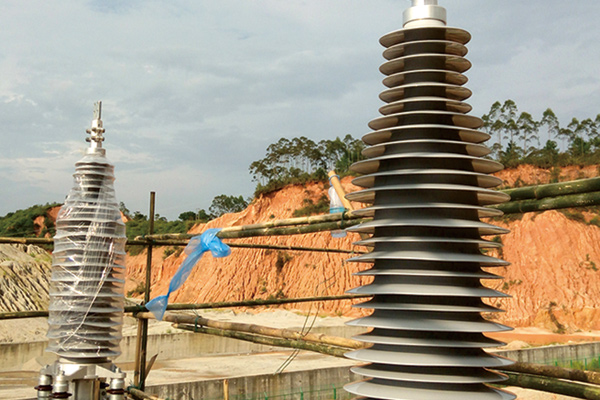

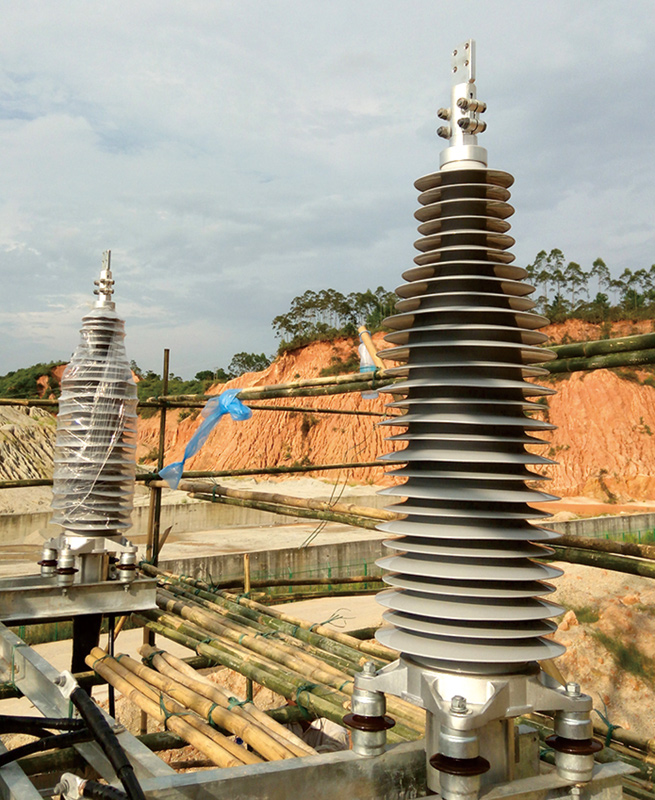

Dry Plug-in Composite Termination, 72.5kV-126kV

Dry Plug-in Composite Termination, 72.5kV-126kV
  • Dry Plug-in Composite Termination, 72.5kV-126kV
  • Dry Plug-in Composite Termination, 72.5kV-126kV
    • Scope of Application
    • Model: WYJZWFGC4
    • Suitable for outdoor environment with pollution class of IV
    • Rated voltage: 72.5kV (applicable to 120-800mm²)
      126kV (applicable to 240-800mm²)
    Request a Quote
    Download
    Features
    • The termination connects the cable in a plug-in connection method, simplifying the installation and maintenance;
    • The termination’s exterior is protected by silicon rubber rain sheds, offering excellent protection against pollution, ultraviolet ray, aging, and explosion;
    • The cable preparation length is one third of common outdoor termination, drastically reducing installation time;
    • The termination is free from insulating fluids, avoiding any leakage;
    • Test standard of IEC 60840 and GB/T 11017
    Cable Lug Specifications
    Max. system voltage Cable nominal cross-section Lug hole distance C (mm) Connecting hole of lug Q (mm) Palm width of cable lug D (mm) Palm length of cable lug L (mm)
    72.5kV 120 mm2-400 mm2 35 14 63 80
    500 mm2-800 mm2 45 14 80 100
    126kV 240 mm2-400 mm2 35 14 63 80
    500 mm2-800 mm2 45 14 80 100

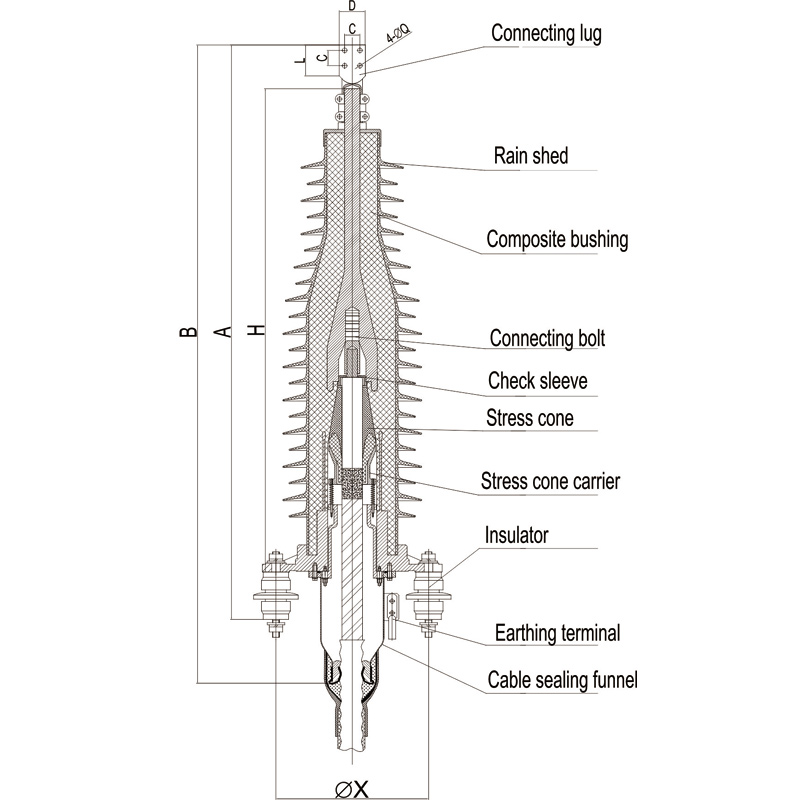

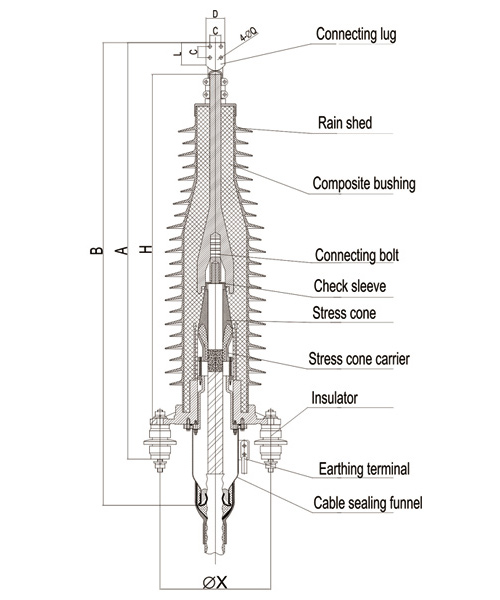

    Termination Dimensions
    Dry Plug-in Composite Termination, 72.5kV-126kV
    Max. system Voltage 72.5kV 126kV
    H (mm) 1420 1420
    A (mm) 1715 1715
    B (mm) 1930 1930

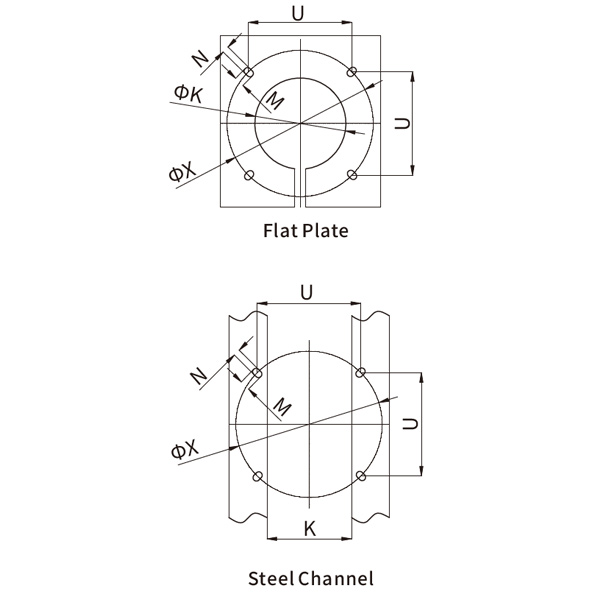

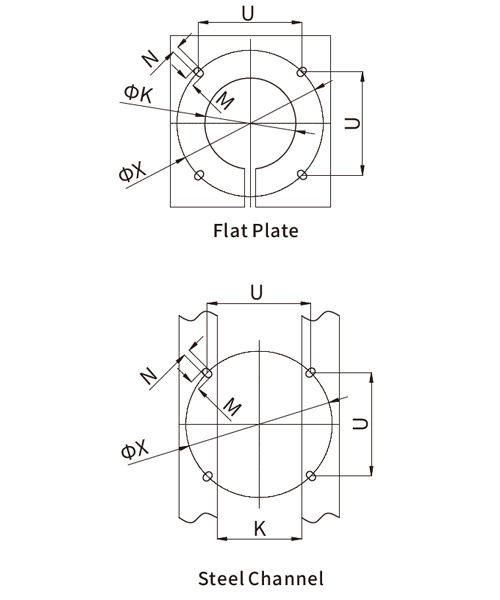

    Base Plate Mounting Dimensions
    Dry Plug-in Composite Termination, 72.5kV-126kV
    Max. system voltage 72.5kV-126kV
    N (mm) 21
    M (mm) 30
    K (mm) 270
    U (mm) 318
    X (mm) 450
    Notice When Ordering:
    • Cable configuration and the cross-sectional area of earth wire shall be provided when ordering.
    • Welcome to contact our sales manager for any special requirements before placing your order.
