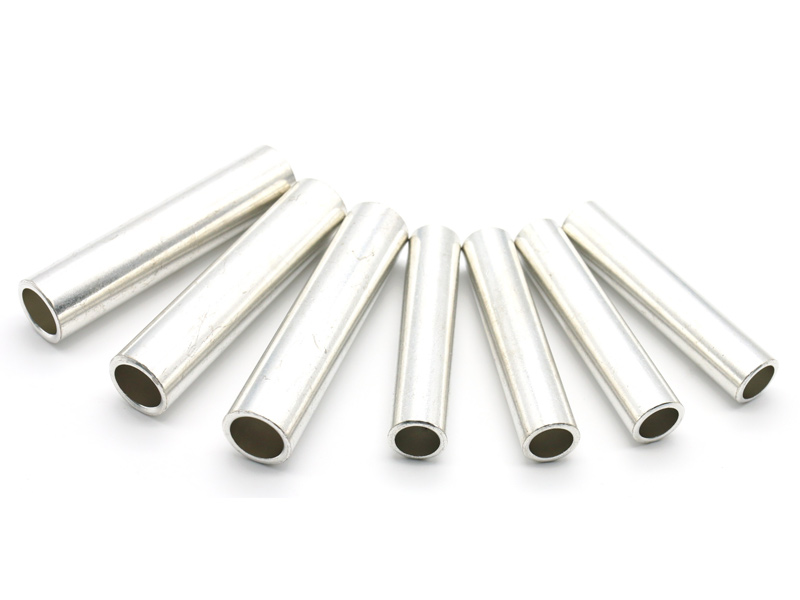

Copper Connector (with barrier), GT Series

Copper Connector (with barrier)

This cable connector is suitable for connecting power cables, especially in heat and cold shrink joint kits.

Request a Quote
Download
Product Manual
Test Report
Features

The connector is made of quality T2 copper rods, with a copper content ≥99.0% and good conductivity performance (conductivity rate ≥97% IACS). The raw copper material meets the national standard of GB/T 5231-2001.

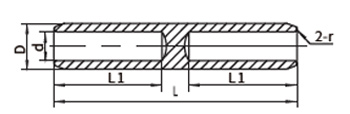

Structure Chart
Copper Connector (with barrier)
Specifications
Model D d L L1 r
GT-10 9 5 62 28 0.7
GT-16 10 6 65 30 0.7
GT-25 11 7 70 32 0.7
GT-35 12 8.5 75 34 0.7
GT-50 14 9.6 80 35 1
GT-70 16 12 90 41 1
GT-95 18 13 95 43 1
GT-120 20 15 100 46 1
GT-150 22 16 105 48 1.2
GT-185 25 18 110 50 1.2
GT-240 27 20 120 55 1.5
GT-300 30 23 130 60 1.5
GT-400 34 26 140 64 1.8
GT-500 38 29 155 70 1.8
GT-630 45 34 170 80 2
Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
