Y Branch Cable Joint, 72.5kV-145kV

Y Branch Cable Joint
  • Y Branch Cable Joint
  • Y Branch Cable Joint
    • Scope of Application
    • Model: WYJJFG
    • Suitable for outdoor environment with pollution class of IV
    • Rated voltage: 72.5kV (applicable to 120-1600mm²)
      126kV (applicable to 240-1600mm²)
      145kV (applicable to 240-1600mm²)
    Request a Quote
    Download
    Test Report
    Product Manual
    Features
    • The main body of the Y branch cable joint is an integrated part. The outer enclosure is made of metal that has resistance to water, damp, and mechanical stress damage, ensuring that the cable joint can function normally under various installation environments;
    • The main body is made through vacuum injection using thermosetting resin and its completely dry structure can avoid any oil leakage;

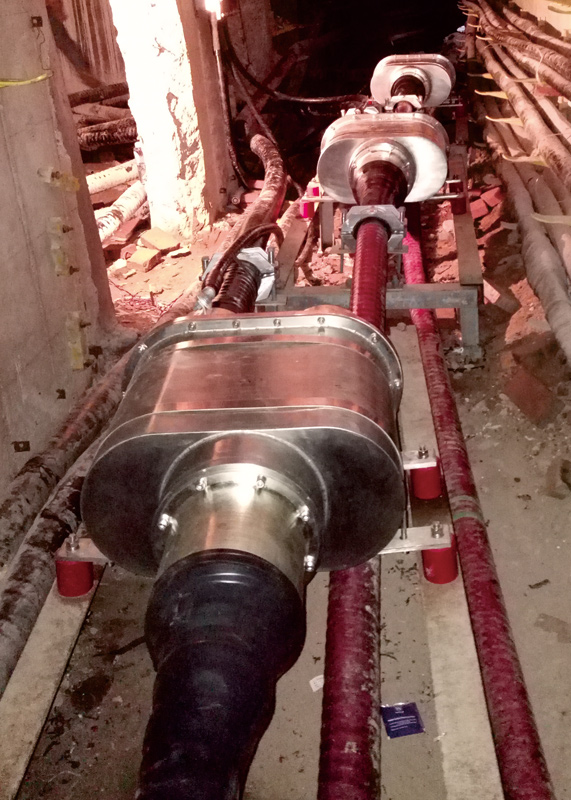

    • This cable joint can be installed in electric cable wells or cable ducts or directly buried because of its compact structure and small volume which require small installation space;
    • The body part is pre-manufactured in the factory so that all that is needed is to insert the prepared cable into the joint during on-site installation; There is no need for maintenance during operation since there is no filler or insulation gas in the cable joint;
    • Test of IEC 60840, GB/T 11017.

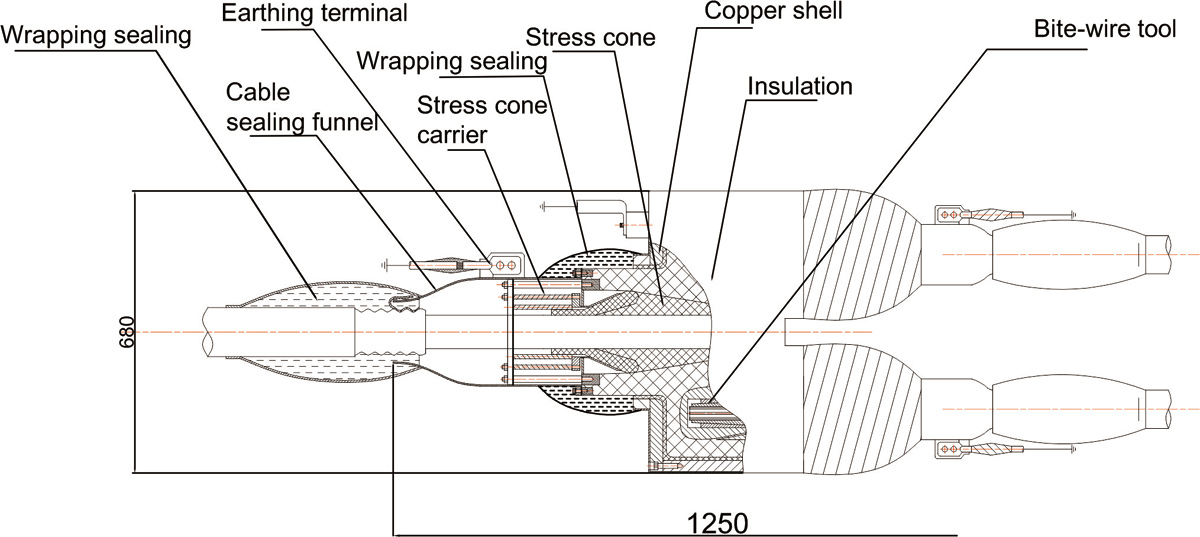

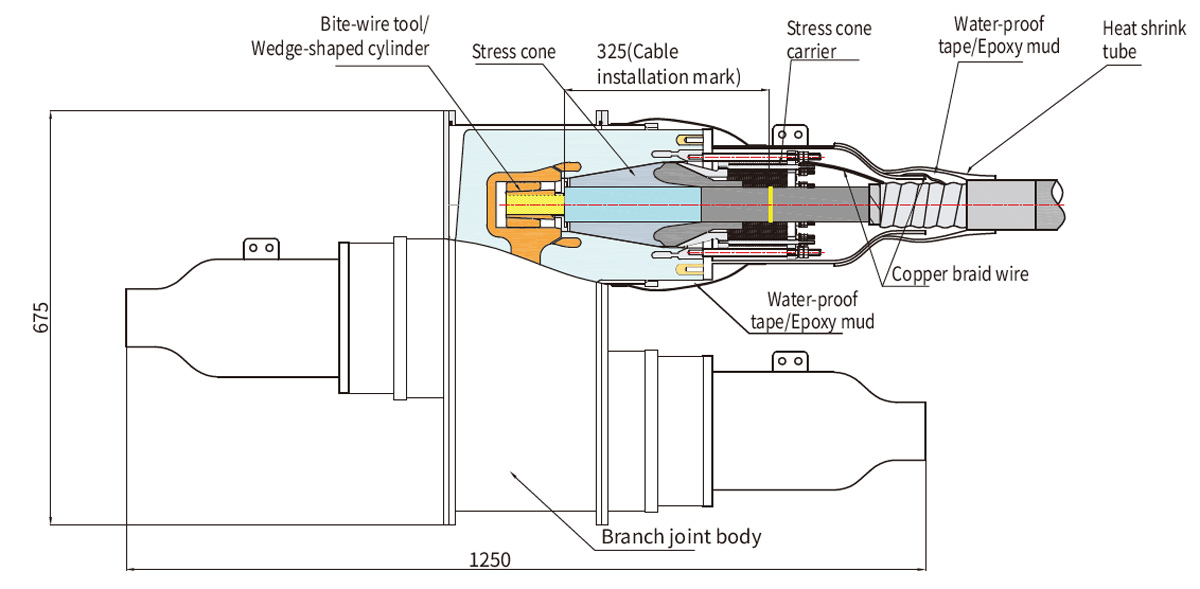

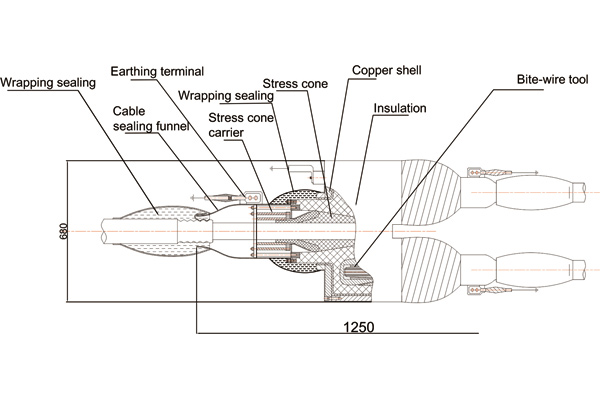

    Structure Diagram
    Y Branch Cable Joint
    Notice When Ordering:
    • Cable configuration and the cross-sectional area of earth wire shall be provided when ordering.
    • Welcome to contact our sales manager for any special requirements before placing your order.
