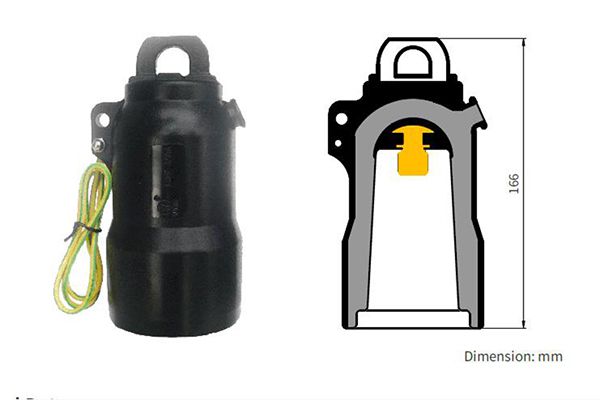

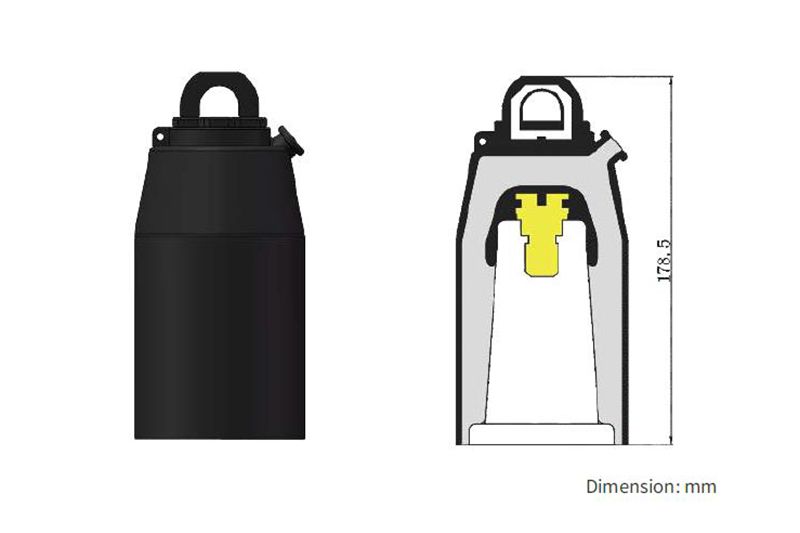

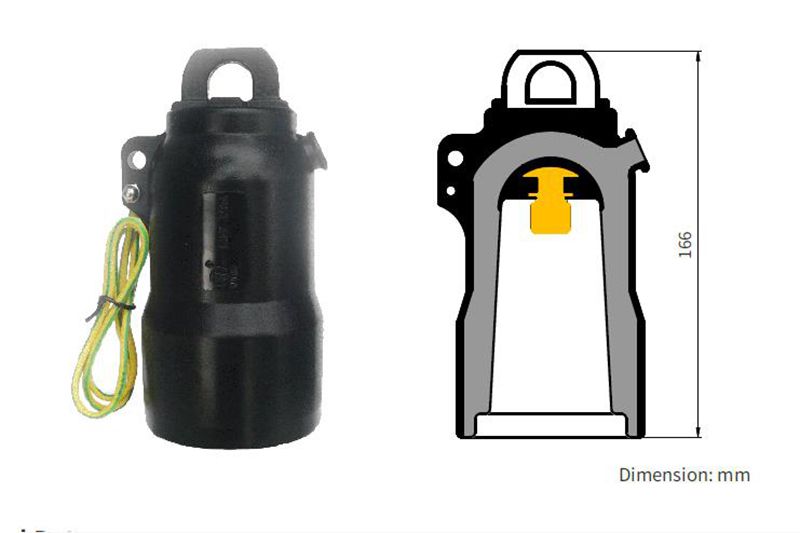

Insulating Cap

Insulating Cap
  • Insulating Cap
  • Insulating Cap

    • Insulating Cap
    Applications

    The insulating cap is used on the bushing interface reserved or to seal the bushing without a T connector during the examination. As an affiliated component of the bushing, it provides fully insulated and shielded protection for electriferous bushing and anti-dust and moisture-proof protection to the de-energized bushing.

    Request a Quote
    Download
    Selection Table 1
    Selection Table 2
    Selection Table 3
    Selection Table 4
    Features
    • The insulating cap meets the design standards of EN50180&50181 or IEEE386. The high-quality EPDM rubber material not only achieves excellent electrical performance but also advantages in strong tear resistance, ozone resistance, oxidation resistance, corrosion resistance and powerful mechanical strength.
    • The globally advanced three-layer injection technique effectively ensures outstanding boundary performance, avoids interlayer gaps and minimizes partial discharge.
    • Design of the inner and external screens optimizes the electric field structure and uniforms the exterior shielding layer, with grounding resistance of less than 5000Ω, so as to effectively keep the electric potential of the outer surface of the cable connector at zero to ensure the safety of the maintenance operator.
    • It is superb in thermal stability and thermodynamic properties. Furthermore, the great sealing quality allows submersible operation.
    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
