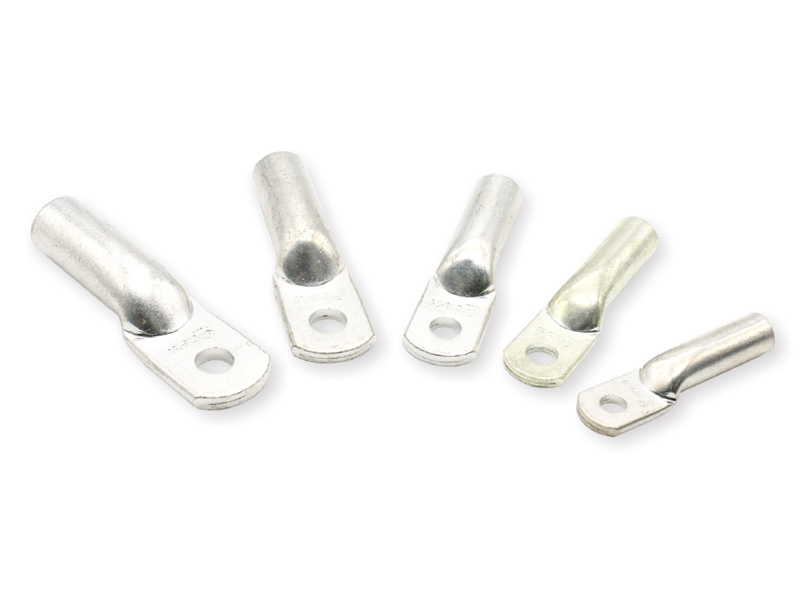

Copper Lug (without barrier), DT Series

Copper Lug (without barrier)

DT series copper lug can be used to connect the electric wire, the power cable and the electrical equipment of a power distribution. It can also be used with cold and heat shrink outdoor termination kits.

Request a Quote
Download
Product Manual
Test Report
Features

The lug is made of quality T2 copper rods, with a copper content ≥99.0% and good conductivity performance (conductivity rate ≥98% IACS). The raw copper material meets the national standard of GB/T 5231-2001.

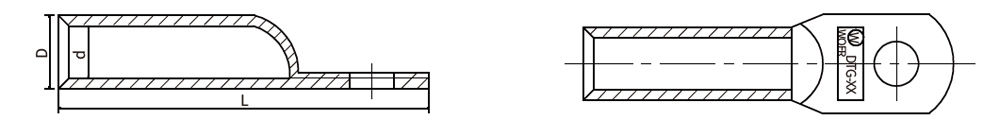

Structure Chart
Copper Lug (without barrier)
Specifications
Model Main dimensions
Out dimension D Inner dimension d Length L
DT-10 9 5.0 50
DT-16 10 6.0 56
DT-25 11 7.0 60
DT-35 12 8.0 65
DT-50 14 10.0 71
DT-70 16 12.0 80
DT-95 18 13.0 86
DT-120 20 15.0 95
DT-150 22 16.0 103
DT-185 25 18.0 115
DT-240 27 20.0 120
DT-300 30 24.0 135
DT-400 34 26.0 150
DT-500 38 30.0 170
DT-630 45 35.0 210
Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
