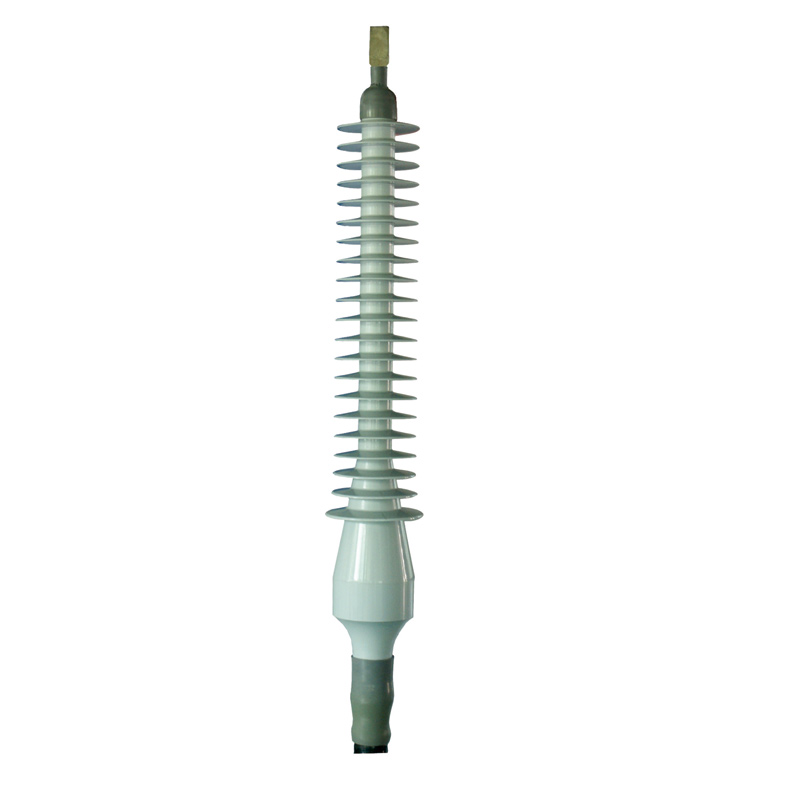

Prefabricated One-piece Outdoor Termination, 72.5kV-145kV

Prefabricated One-piece Outdoor Termination
  • Prefabricated One-piece Outdoor Termination
  • Prefabricated One-piece Outdoor Termination
    • Scope of Application
    • Model: WYJZWG4

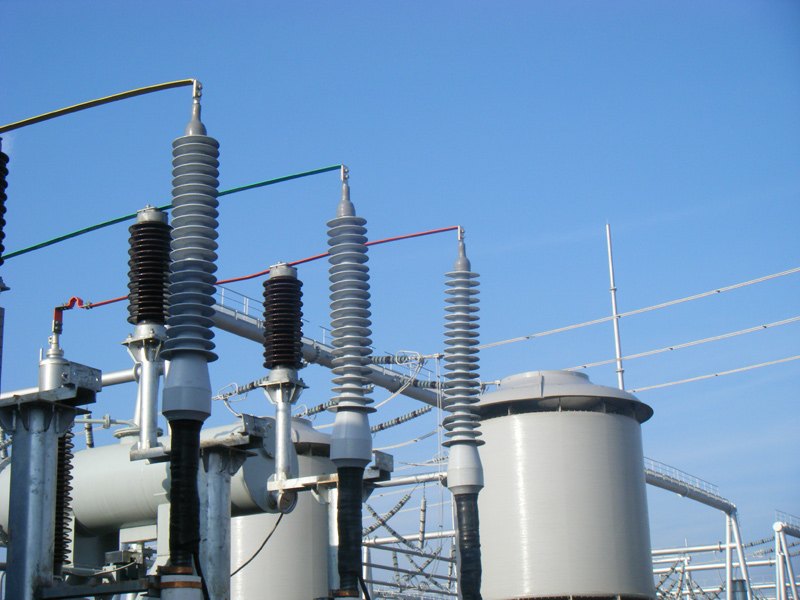

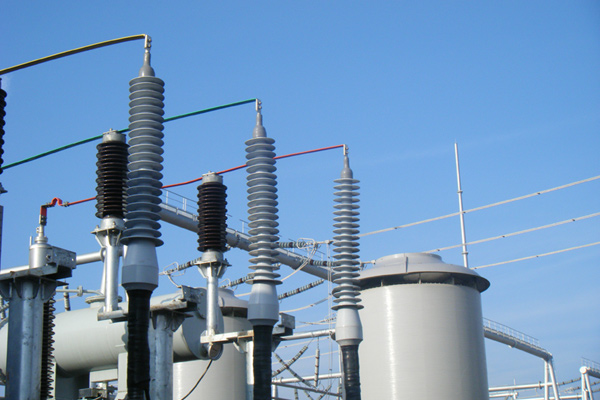

    • Suitable for outdoor environment with pollution class of IV
    • Rated voltage: 72.5kV (applicable to 120-1600mm²)
      126kV (applicable to 240-1600mm²)
      145kV (applicable to 240-1600mm²)
    Request a Quote
    Download
    Test Report
    Product Manual
    Features
    • Made with seamless one-piece termination body, greatly increasing the mechanical and electrical performance of the termination surface;
    • Easy to install and only one-eighth to one-tenth of the weight of porcelain terminations of the same voltage;
    • Good explosion-proof property, efficiently avoiding the risk of work accidents;
    • Dry structure avoids any leakage;
    • Flexibility in terms of position and orientation during installation; Fit for inclined installation and inverted installation;
    • Properties of weatherability, anti-electric tracking, electrochemical erosion resistance, water repellency, and anti-pollution flashover, providing stable and safe performance in extreme weather conditions and highly-polluted areas;
    • Test standard of IEC 60840 and GB/T 11017;
    Cable Lug Specifications
    Cable nominal cross-section D (mm) C (mm) ØQ (mm) Hole Nos.
    150 mm2 50 35 13 2
    185 mm2 50 35 13 2
    240 mm2 50 35 13 2
    300 mm2 60 35 13 2
    400 mm2 60 35 13 2
    500 mm2 80 45 13 4
    630 mm2 80 45 13 4
    800 mm2 90 45 17 4
    1000 mm2 100 50 17 4
    1200 mm2 100 50 17 4
    1400 mm2 120 50 17 4
    1600 mm2 120 50 17 4

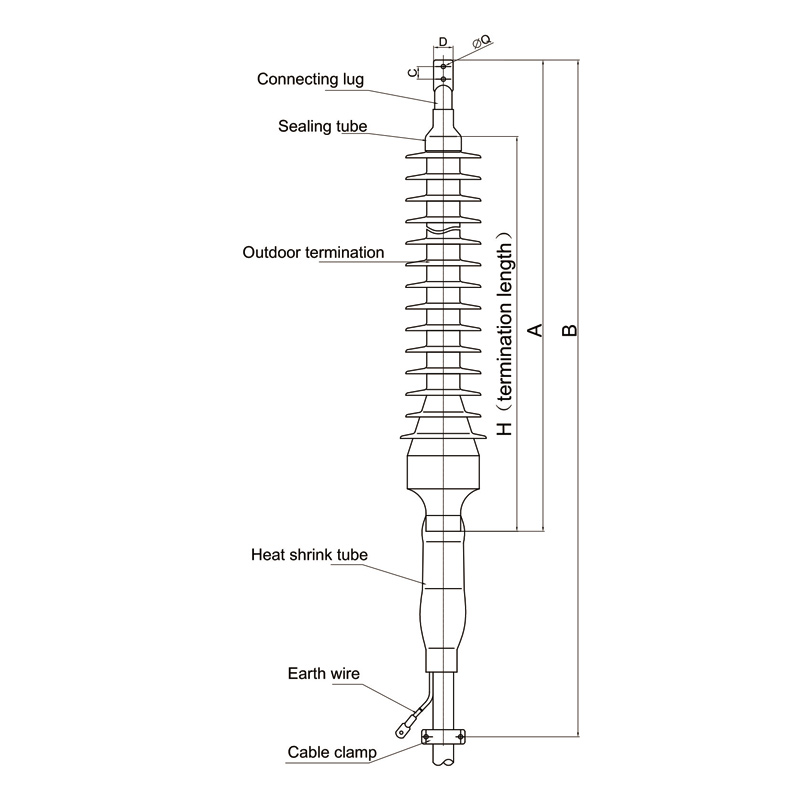

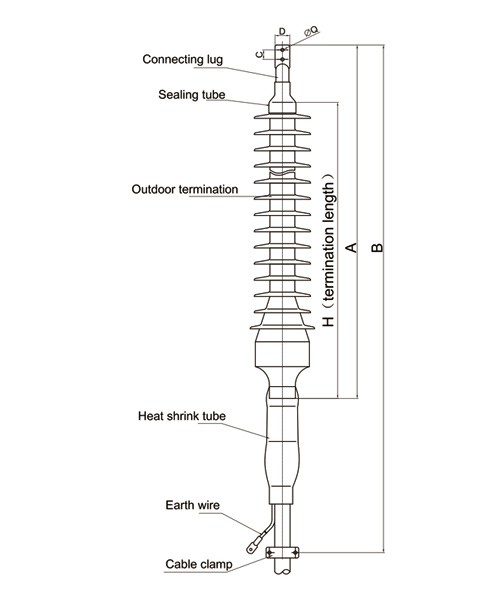

    Termination Dimensions
    Prefabricated One-piece Outdoor Termination
    Max. system Voltage 72.5kV 126kV 145kV
    Type WYJZWG4 WYJZWG4 WYJZWG4
    H (mm) 1050 1510 1510
    A (mm) 1400 1800 1800
    B (mm) 2000 2500 2500
    Creepage Distance (mm) ≥2248 ≥4500 ≥4500
    Notice When Ordering:
    • Cable configuration and the cross-sectional area of earth wire shall be provided when ordering.
    • Welcome to contact our sales manager for any special requirements before placing your order.
