Heat Shrink Semi-Conductive Tube

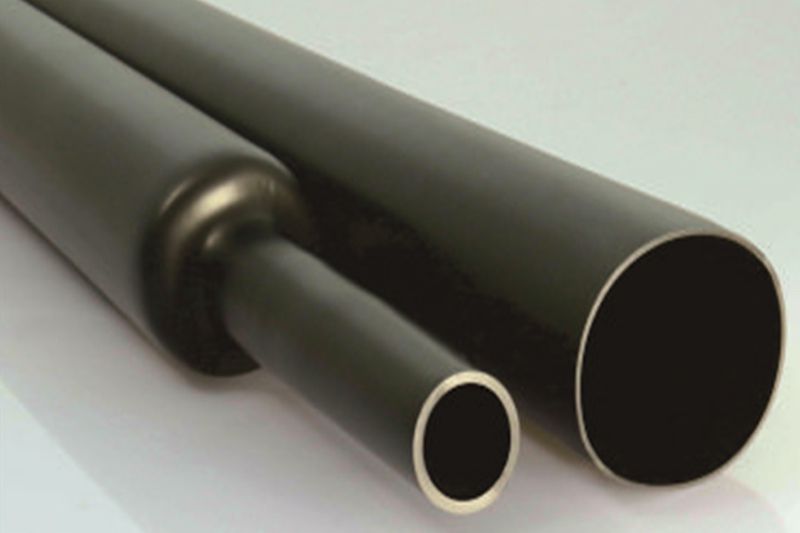

This heat shrink tube is made of cross-linked semi-conductive polyolefin and is aimed to protect electricity cables. It starts shrinking when the ambient temperature reaches 90 ℃ and finishes shrinking when the temperature rises to 130℃. To fully meet your production demands, customization services are provided, for instance, the laser engraving of your company’s logo on the surface of the tubes. After you make a purchase, we will carry out production at full steam to ensure swift delivery of the products.

Download
Selection Table
Specification
Features
  • Customization service;
  • Excellent insulation performance;
  • Easy installation;
  • Complete range of specifications;
Technical Data
Property Test Method Standard Value
Tensile Strength ASTM-D-638 ≥ 10MPa
Elongation at Break ASTM-D-638 ≥350%
Tensile Strength After Heat Aging (130℃×168h) ASTM-D-5510 ≤±20%
Elongation at Break After Heat Aging (130℃×168h) ASTM-D-5510 ≤±20%
Volume Resistivity IEC 60093 ≥1x Ω.cm
Hardness (Shore A) ISO 868 ≥80
Heat Shock 160℃, 4h No Crack
Brittle Temperature ISO 974 -40℃
Longitudinal Shrinkage ASTM-D-2671 ≤10%
Eccentricity ASTM-D-2671 ≤30%
Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
