Roll-On Sealing Sleeve

Roll-On Sealing Sleeve
  • Roll-On Sealing Sleeve
  • Roll-On Sealing Sleeve

    • Roll-On Sealing Sleeve

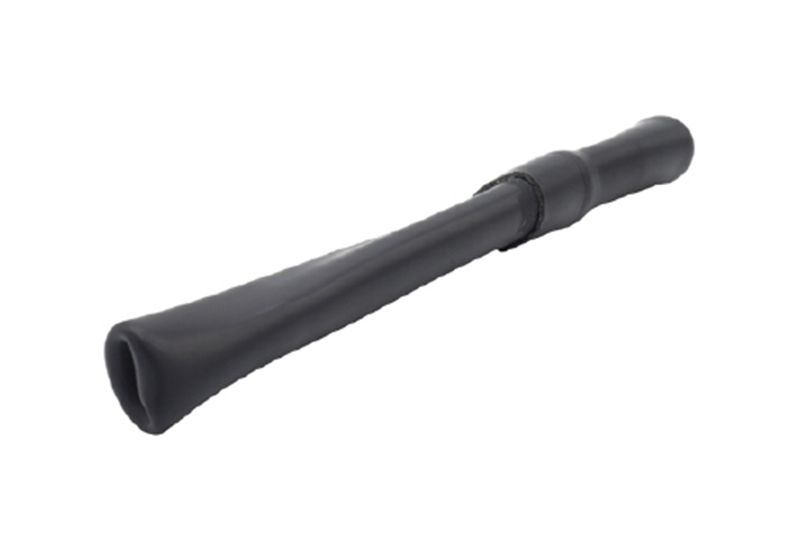

    Our roll-on sealing sleeve is RoHS compliant, which is made of EPDM rubber material. The sleeve is filled with special lubricant at the inner side, making it easier to install.

    Request a Quote
    Download
    Applications

    The roll-on sealing sleeve is used for insulation and sealing, which is to provide protections from salt spray and water moisture. This can also be used for protection from electrical contacts during the periodic inspection, such as the joint protection of mine cables or cables for offshore wind turbines.

    Features
    • Our product is reusable and recyclable, which can be installed and removed repeatedly, hence, can provide material cost savings.

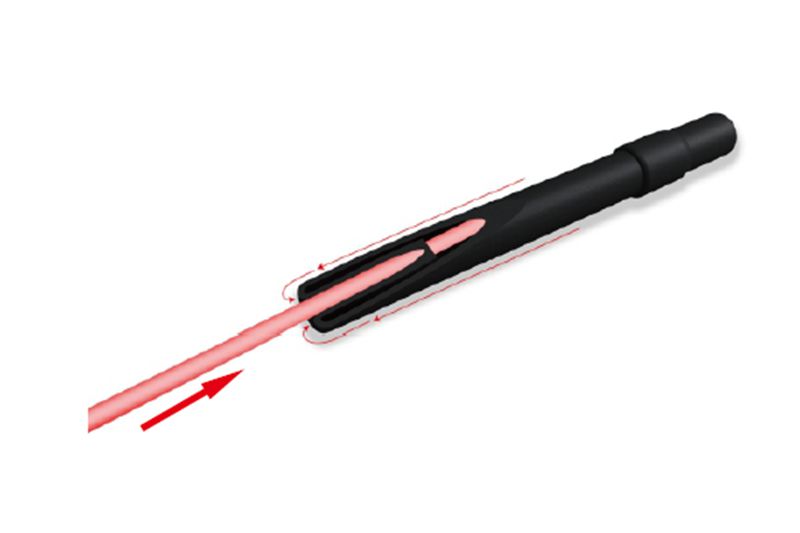

    • The sleeves are heatless sealing products that do not require torches or any heat sources during the installation. The installing process is quick and simple, which is to just roll the sleeve over the area to be protected.
    Technical Data
    Property Test Method Standard Value
    Ultimate Tensile ISO 37 ≥8.1MPa
    Ultimate Elongation ISO 34 ≥8.1MPa
    Ultimate Tensile after 136℃×168h ISO 37 9.5Mpa
    Ultimate Tensile after 136℃×168h ISO 34 719.89
    Water Absorption ISO 62 0.3%
    Dielectric Strength IEC 60243 8kV (mm)
    Volume Resistivity ASTM-D-2303 1.3x1015
    Environmental Testing RoHS Meet the RoHS
    Salt Spray Test GB2423 No crack with ultimate elongation 770% certified by SGS
    Ozone Test GB7762 No crack certified by SGS.
    Low Temperature Ultimate Elongation -60 ℃x4h 391.4%
    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
