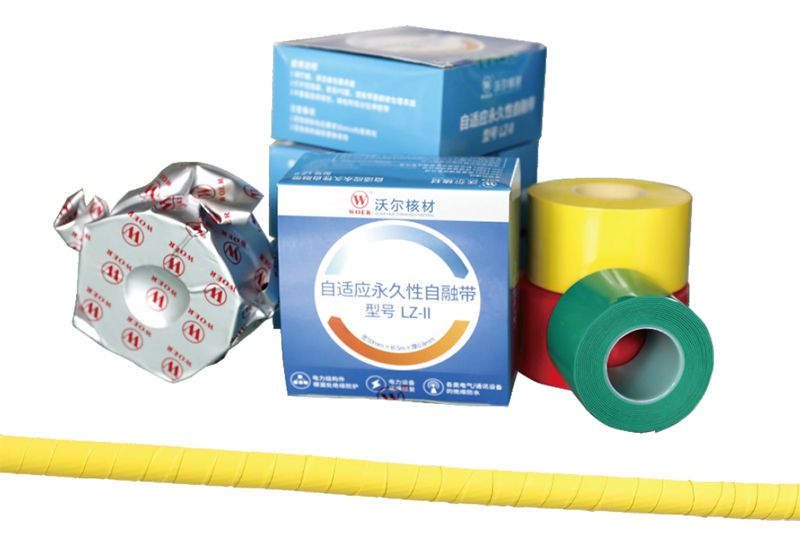

Self-Adaptive Permanent Self-Fusing Tape

Self-Adaptive Permanent Self-Fusing Tape
  • Self-Adaptive Permanent Self-Fusing Tape
  • Self-Adaptive Permanent Self-Fusing Tape
  • Self-Adaptive Permanent Self-Fusing Tape
    • Best Time of Use After Unpacking Within 1 hour
    • Fully Cured Time 7 days
    • Product Status Tape
    • Shelf Life 1 year
    Request a Quote
    Download
    Applications

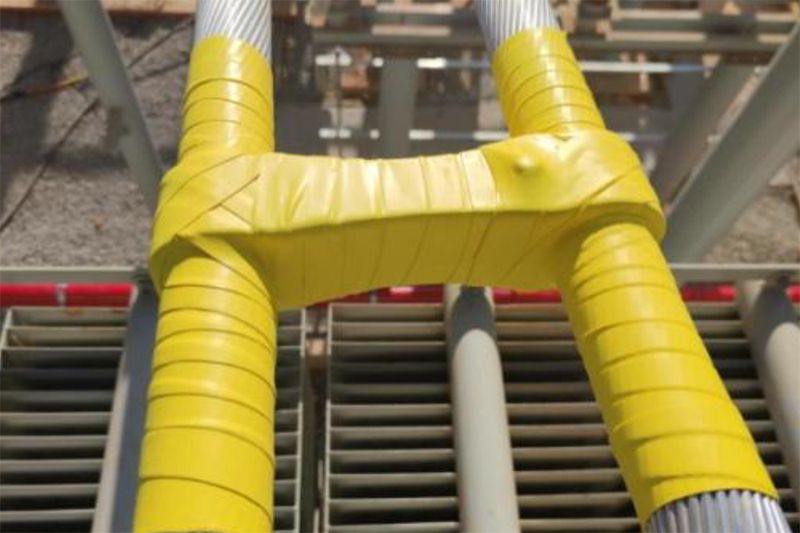

    • Our self-fusing tape is used for the sealing, insulating, and repairing overhead line clamps or cable terminal accessories. Also, it can insulate the dangerous overhead lines due to insufficient safety distance.

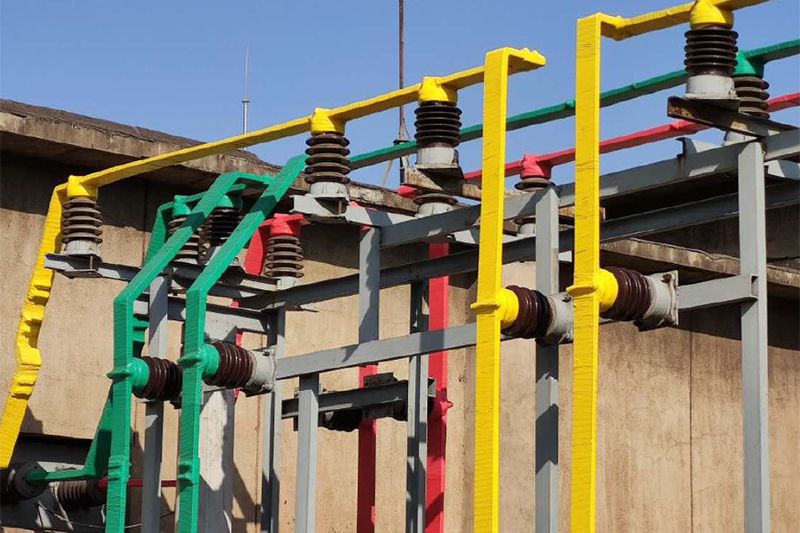

    • The product can be used for insulating the exposed metal positions of power conductors and switchgear, as well as high-voltage substations like busbars, soft connection and electric reactors.
    • The self-fusing tape can be used to insulate 380V~330kV outdoor power transmission equipment, such as high-voltage transmission lines or outdoor 10kV busbar bridges in substations. It can also be used for sealing the electrical cable gland.
    • Also, the tape can be used in high-speed rail, ships, and other fields related to electricity and waterproofing.
    Features
    • When the self-fusing tape encounters water vapor in the air, it will solidify. After stretching, the product has fast self-fusing and flame-retardant performance, which can ensure self-extinguishing when away from fire.
    • The installation is simple, which do not require any kinds of special training and tools. Also, due to simple and quick installing process, it makes easier for users who works at heights.
    • Our high-quality product has excellent UV aging resistance, and it has reliable bonding with high waterproof performance. The tape has the function of color identification, and it will not fade in long-term outdoor use. This proves that our tape is made of fine and uniform material; hence, it can perform excellent insulation.
    • The product is both heat-resistant and cold-resistant. Generally, it can perform long-term, stable operation in the temperature range of -60~200°C. Besides from extreme temperature, our tape can perform perfect insulation under high electric field.
    • Long service life, no fall-off up to 10 years. With this period of time, the product can perform strong insulation strength to meet the needs of use.
    • The surface of the tape is not coated with any adhesive glue, and still, it will not fall off due to loss of viscosity in long-term operation.
    Technical Data
    Property Basic Value
    Best Time of Use After Unpacking Within 1 hour
    Fully Cured Time 7 days
    Product Status Tape
    Shelf Life 1 year
    Physicochemical Typical Value Before Cured After Cured
    Hardness (A) 8 49
    Tensile Strength (MPa) 0.9 4.47
    Elongation at Break (%) 1120 500
    Dielectric Strength (kV/mm) 33.62 41.66
    Volume Resistivity (Ω·cm) 1.4×1012 3×1016
    Relative Permittivity 4.7 2.79
    Dielectric Loss 0.05 0.006
    Adhesion Pass \
    Thermal stresses and cracking resistance Pass \
    Flame Retardant Grade \ vo
    IPX8 Waterproofness Test \ Pass
    Waterproof and Voltage Withstanding Test (20kV,4h) \ Pass
    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
