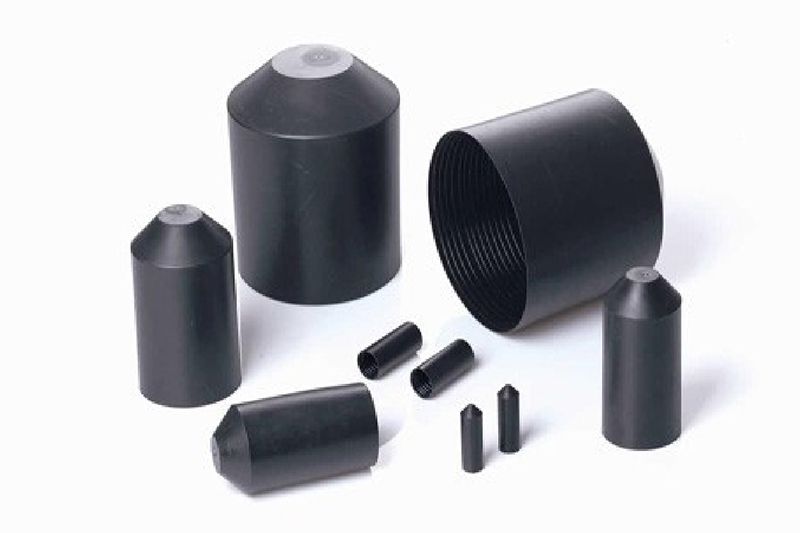

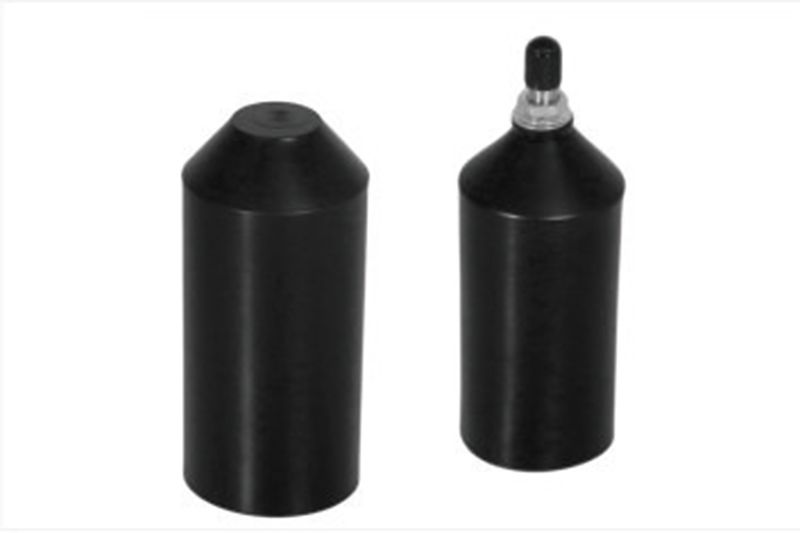

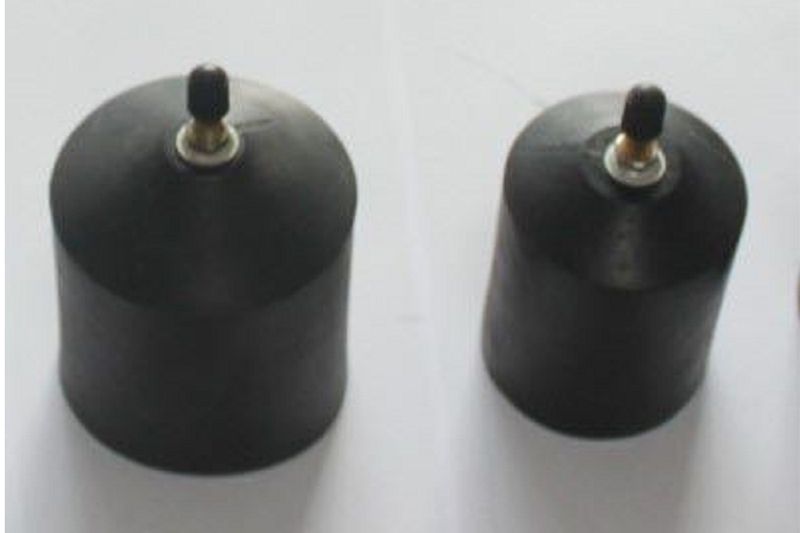

    Heat shrink cable end cap provides protection to cable ends. In WOER, two types of heat shrink end caps are provided. One is the traditional end cap with adhesive lining that achieves extraordinary environmental insulation and sealing, which, when being heated, helps make a safe and watertight bond with cables. The other is cable end cap with valves that also has adhesive lining while allowing you to inject noble gases to achieve even greater insulation and protection.

    Request a Quote
    Technical Data
    Property Test Method Standard Value
    Tensile Strength ASTM-D-638 ≥12MPa
    Elongation at Break ASTM-D-638 ≥300%
    Volume Resistivity IEC 60093 ≥1× Ω.cm
    Dielectric Strength IEC 60243 ≥15kV (mm)
    Brittle Temperature ISO 974 -40℃
    Heat Shock 160℃, 4h No Crack
    Water Absorption
    (23±2)℃ 24h     		ISO 62 ≤0.1%
    Hardness (Shore A) ISO 868 ≥80
    Dimensions
    Spec. As Supplied (mm) After Recovered (mm)
    Inner Diameter
    Min     		Wall Thickness
    (±20%)     		Height
    (±5)     		Inner Diameter Max Wall Thickness
    (±10%)
    WRSFM-12 12 1.0 45 5 2.5
    WRSFM-16 16 1.0 70 8.5 2.5
    WRSFM-20 20 1.0 70 8.5 2.5
    WRSFM-25 25 1.0 80 11 2.5
    WRSFM-30 30 1.3 95 16 2.8
    WRSFM-35 35 1.0 95 18 2.6
    WRSFM-40 40 1.1 95 18 2.6
    WRSFM-55 55 1.0 125 26 2.7
    WRSFM-75 75 1.3 145 31 3.2
    WRSFM-100 97 1.3 140 40 5.2
    WRSFM-120 117 1.3 155 57 4.0
    WRSFM-140 140 1.3 185 63 4.0
    WRSFM-160 158 2.1 270 95 4.0
    WRSFM-180 180 2.1 270 95 4.0
    WRSFM-200 200 1.5 270 95 4.0
    WRSFM-250 245 1.5 270 95 4.0
    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
