Heat Shrink Anode Cap

Heat Shrink Anode Cap
  • Heat Shrink Anode Cap
  • Heat Shrink Anode Cap

    • Heat Shrink Anode Cap

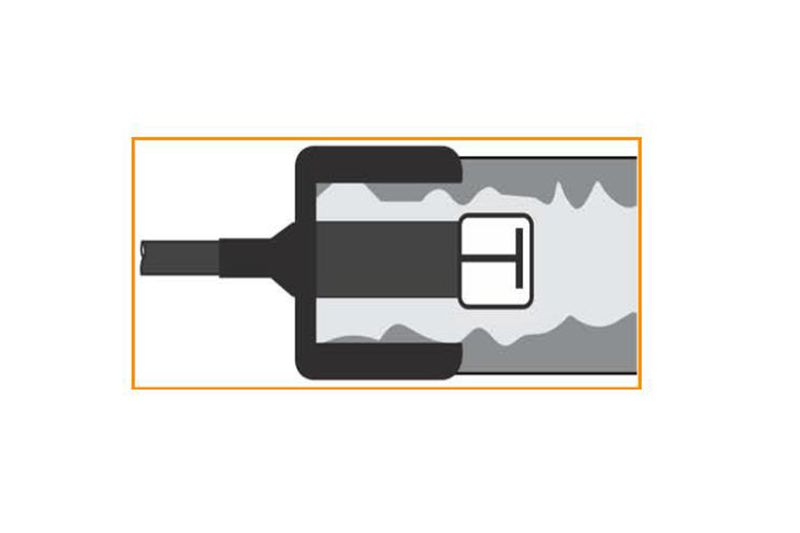

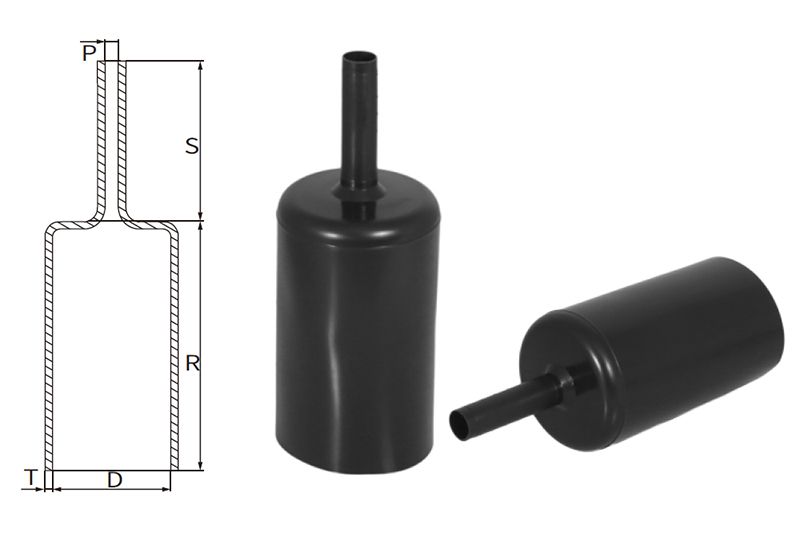

    This heat shrink anode cap protects and insulates the lead wire and anode. It is made of cross-linked polyolefin and has adhesive lining that can make a safe and watertight bond with cables. Apart from these advantages, this cable anode cap is resistant to different weathers, salt spray and moisture.

    Request a Quote
    Download
    Technical Data
    Property Test Method Standard Value
    Tensile Strength ASTM-D-638 ≥12MPa
    Elongation at Break ASTM-D-638 ≥300%
    Volume Resistivity IEC 60093 ≥1× Ω.cm
    Dielectric Strength IEC 60243 ≥15kV (mm)
    Brittle Temperature ISO 974 -40℃
    Hardness (Shore A) ISO 868 ≥80
    Water Absorption (23±2)℃ 24h ISO 62 ≤0.1%
    Heat Shock 160℃, 4h No Crack
    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
