Outdoor Composite Cable Termination, 72.5kV-252kV

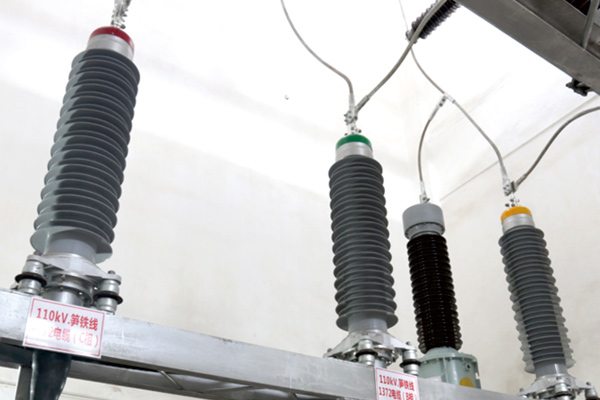

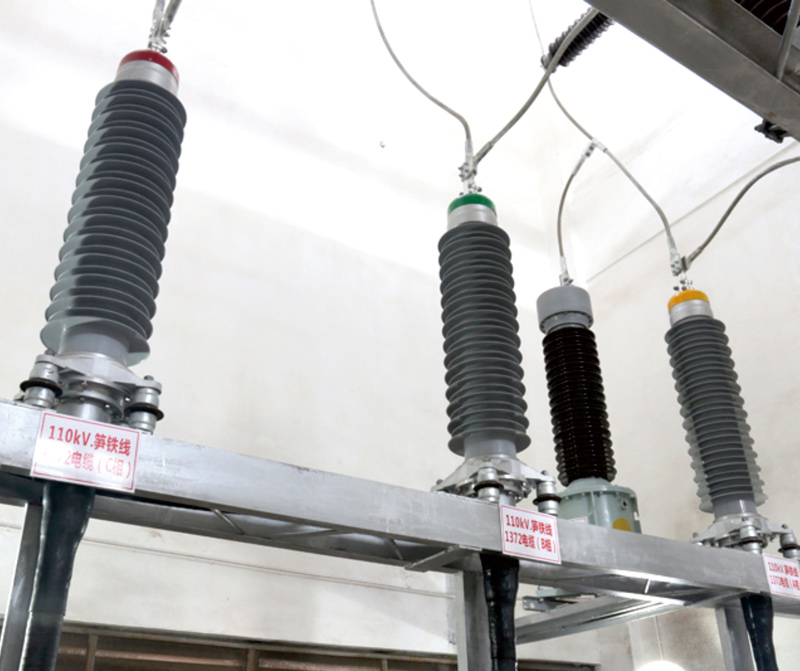

Outdoor Composite Cable Termination
  • Outdoor Composite Cable Termination
  • Outdoor Composite Cable Termination
    • Scope of Application
    • Model: WYJZWFY4
    • Suitable for outdoor environment with pollution class of IV
    • Rated voltage: 72.5kV (applicable to 120-1600mm²)
      126kV (applicable to 240-1600mm²)
      145kV (applicable to 240-1600mm²)
      252kV (applicable to 400-2500mm²)
    Request a Quote
    Download
    Test Report
    Product Manual
    Features
    • The stress cone in the cable termination is made of imported EPDM through rubber injection molding, and is held in place by a spring cone to address problems caused by aging-induced relaxation; the cover of the stress cone isolates the cone from the insulating filler, ensuring good contact between the stress cone and the out semi-conducting layer of the cable. This guarantees the long-term and stable operation of the cable termination;
    • The cable termination is made using multilayer sealing structure to avoid water seepage and oil leakage during operation;
    • The outer insulator of the cable termination has rain sheds of different sizes, which help minimize the possibility of pollution and flashovers;
    • The outer insulator with silicone rubber rain sheds has the properties of anti-ultraviolet ray, anti-aging, and anti-explosion, and whose weight is less than half of the porcelain termination;
    • Test standard of IEC 60840, GB/T 11017, IEC 620607, and GB/T 18890;
    Cable Lug Specifications
    Max. system voltage Cable nominal cross-section Lug hole distance C (mm) Connecting hole of lug Q (mm) Palm width of cable lug D (mm) Palm length of cable lug L (mm)
    72.5kV 120 mm2-400 mm2 35 14 63 80
    500 mm2-800 mm2 45 14 80 100
    1000 mm2-1600 mm2 50 17 100 110
    126kV-145kV 240 mm2-400 mm2 35 14 63 80
    500 mm2-800 mm2 45 14 80 100
    1000 mm2-1600 mm2 50 17 100 110
    252kV 400 mm2-800 mm2 45 14 80 100
    1000 mm2-1600 mm2 50 17 100 110
    2000 mm2-2500 mm2 50 18 125 140

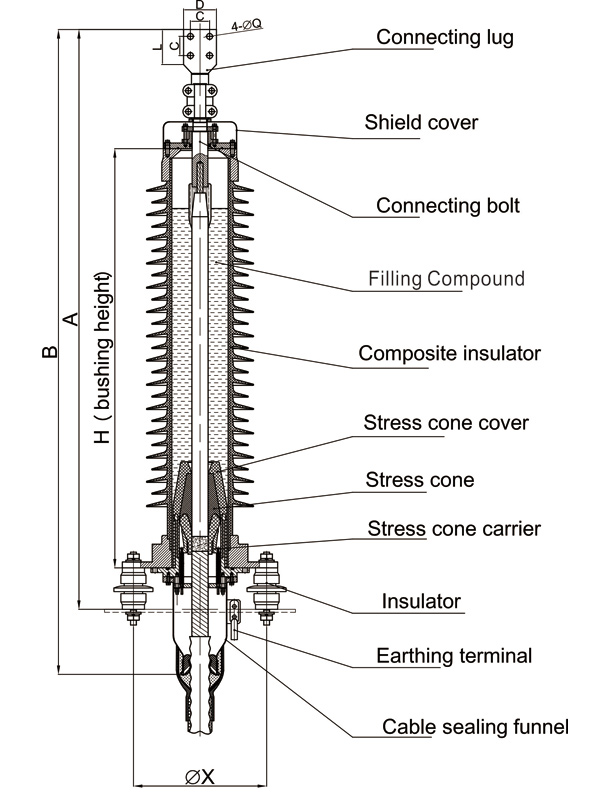

    Termination Dimensions

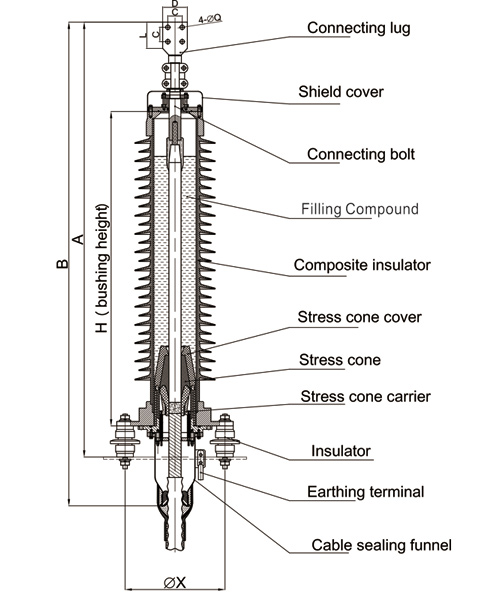

    Termination Dimensions
    Max. system Voltage 72.5kV 126kV 145kV 252kV
    H (mm) 1100 1400 1580 2700
    A (mm) 1600 1900 2080 3210
    B (mm) 1820 2120 2300 3395

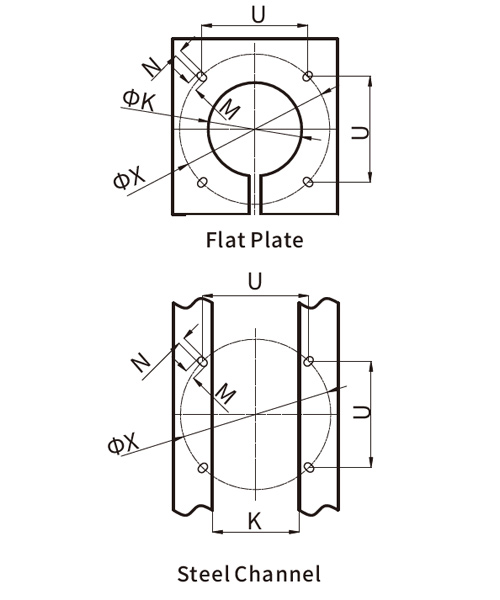

    Base Plate Mounting Dimensions

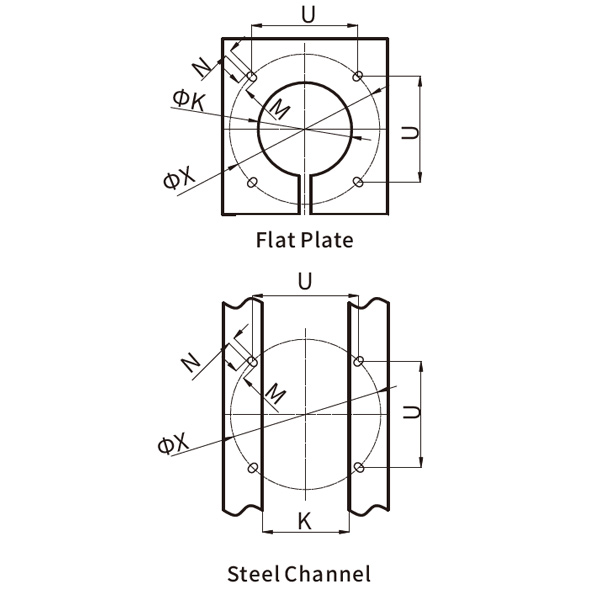

    Base Plate Mounting Dimensions
    Max. system voltage 72.5kV-145kV 252kV
    N (mm) 21 32
    M (mm) 30 40
    K (mm) 270 450
    U (mm) 318 566
    X (mm) 450 800
    Notice When Ordering:
    • Cable configuration and the cross-sectional area of earth wire shall be provided when ordering.
    • Cable configuration and the cross-sectional area of earth wire shall be provided when ordering.
