Interface C Separable Connector
(630A, European Standard)

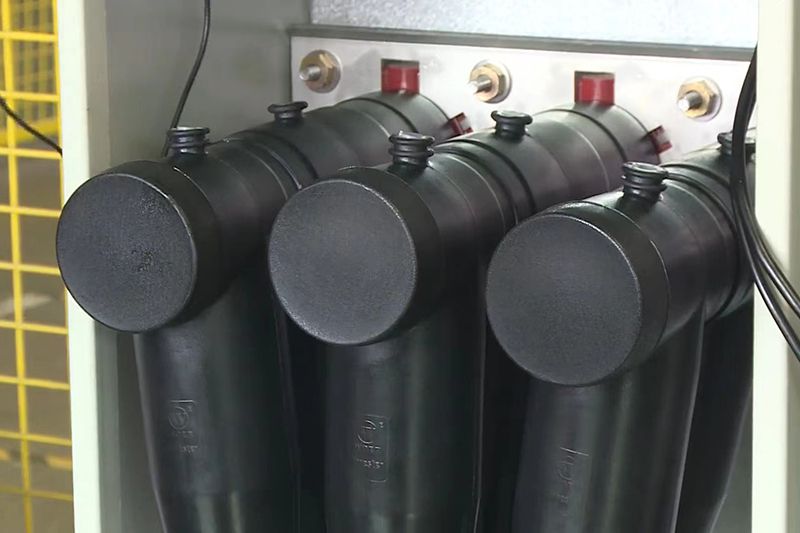

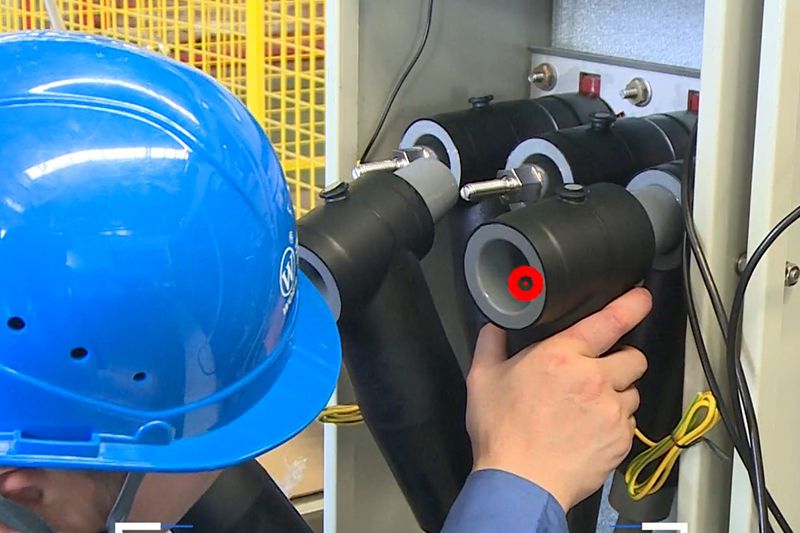

This connector set includes a separable connector that links cables to interface C bushings, like transformers and switchgears, and a rear connector to work as a connector extension. It is made of EPDM and an insulation layer will be moulded between the insert and the jacket after being connected to epoxy-resin-coated cables.
- Pass all our factory tests;
- Meet the requirements of IEC60502-4 and HD629.1 standards;

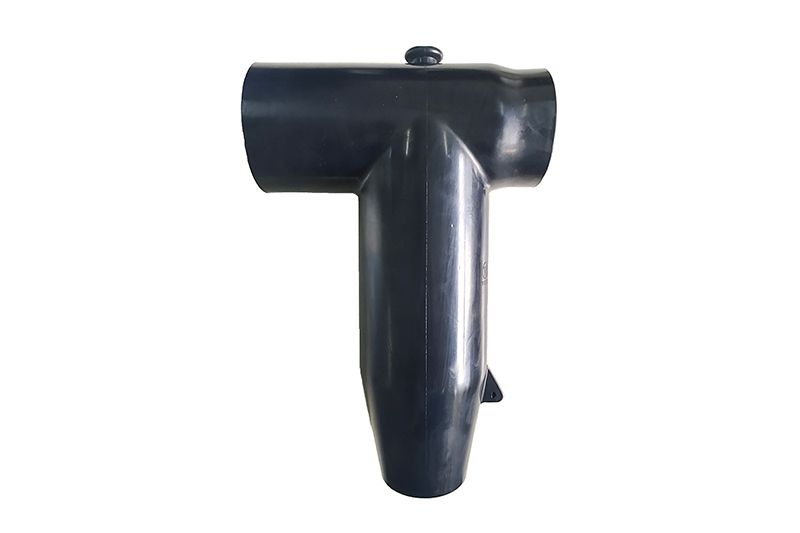

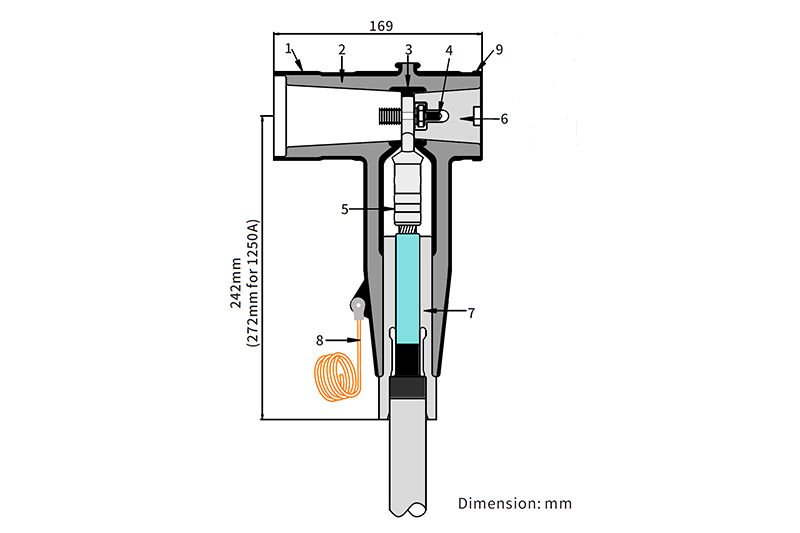

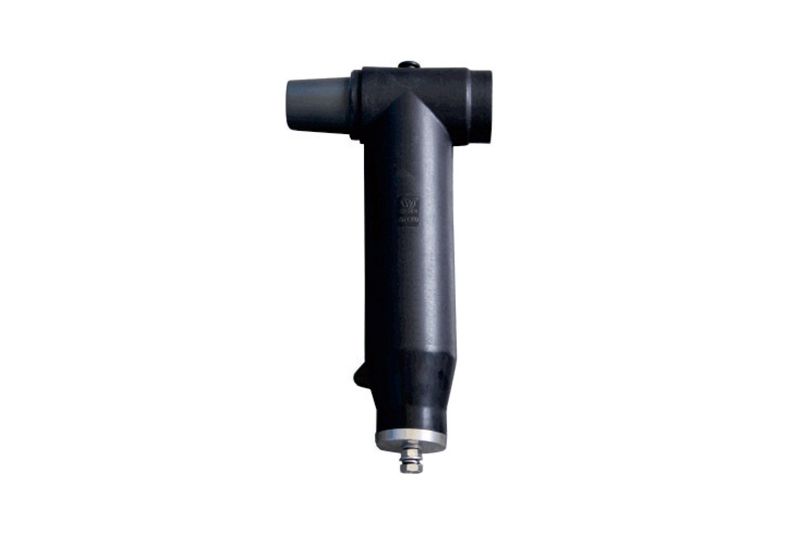

15kV 630A Bolted Separable Tee Connector

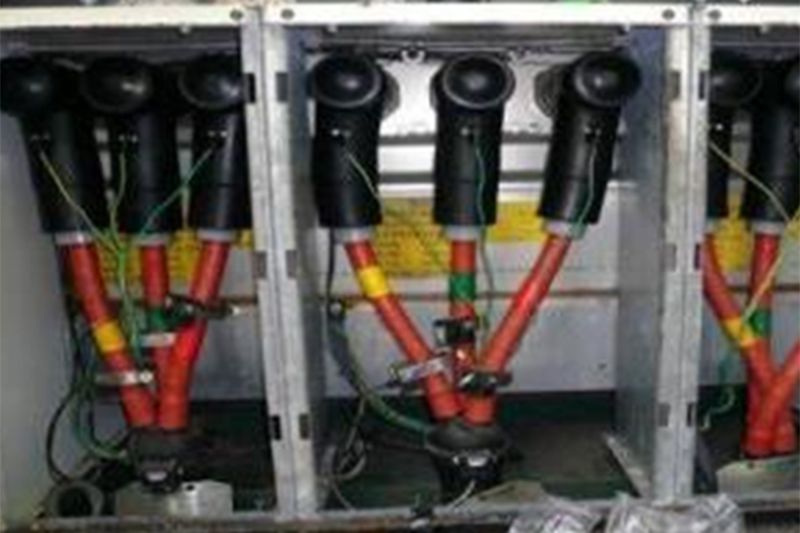

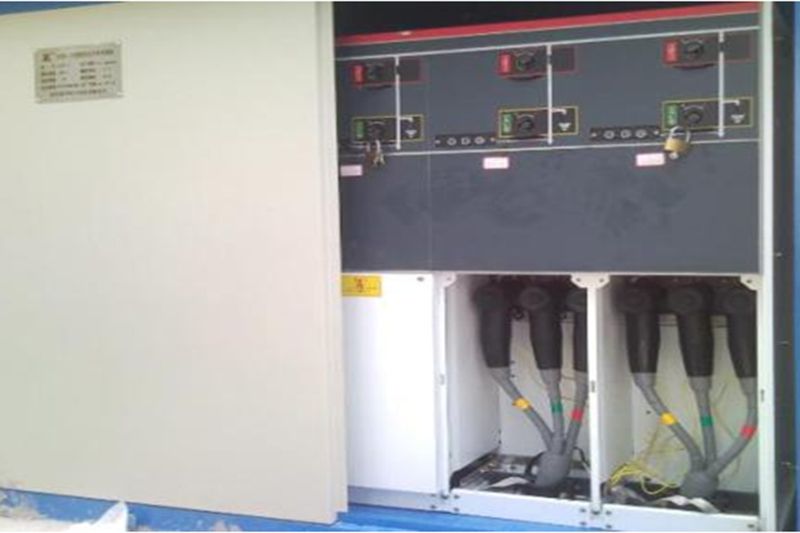

This bolted separable tee connector allows cables to be connected together. It is suitable for electrical system rated 8.7/15(17.5)kV. The tee connector links cables to interface C bushings, like ring main units, cable branch boxes, transformers and switchgears, which ensure insulation and form a ring power network. It is made of EPDM and an insulation layer will be moulded between the insert and the jacket after being connected to epoxy-resin-coated cables.
Apart from supplying quality separable tee connectors, customization services are provided, for instance, the laser engraving of your company’s logo on the surface of the connector. Once you have ordered, we will carry out production at full steam to ensure swift delivery of the products
- Pass all factory tests;
- Meet the requirements of GB/T12706.4, HD629.1 and IEC60502-4;
- Obtain a formal test report issued by a third-party laboratory;
| Voltage Class | 12kV | 17.5kV |
| Continuous Current | Up to 1250A | Up to 1250A |
| AC Withstand Voltage | 28.5kV for 5min | 39kV for 5min |
| Partial Discharge | 11kV, ≤10pC | 15kV, ≤10pC |
| Impulse Withstand Voltage (10 times for each polarity) | 95kV | 95kV |
| Screen Resistance | ≤5000Ω | ≤5000Ω |
Ordering instruction
The ordering formula as followed:
Step 1:
Choose the system voltage and current: 15/630
Step 2:
Select the range from Table D that fits the diameter over cable insulation
Step 3:
Select the conductor code from Table C for the conductor size and type
Step 4:
Select the package. 1: 1pc/kit; 3: 3pcs/kit.
Table D
Diameter over cable insulation
| Insulation Range Code | Diameter Over Cable Insulation Ø(mm) | |
| Min. | Max. | |
| A | 14 | 16 |
| B | 16 | 18 |
| C | 17 | 20 |
| D | 20 | 23 |
| E | 23 | 26 |
| F | 26 | 30 |
| G | 30 | 33 |
| H | 33 | 36 |
| I | 36 | 39 |
| J | 40 | 42 |
Table C
Conductor Code
| Conductor Cross-section ( ) | Lug Code | ||||
| Copper Lug (Hexagonal Compression) | Aluminum Lug (Mechanical Bolted) | ||||
| 25 | 01C | M1(AULZ25-95-16) | - | - | |
| 35 | 02C | - | - | ||
| 50 | 03C | - | - | ||
| 70 | 04C | M2(AULZ70-240-16) | - | ||
| 95 | 05C | - | |||
| 120 | 06C | - | - | ||
| 150 | 07C | - | - | ||
| 185 | 08C | - | M3(AULZ185-400-16) | ||
| 240 | 09C | - | |||
| 300 | 10C | - | - | ||
| 400 | 11C | - | - | ||
| 500 | 12C | - | - | - | |
| 630 | 13C | - | - | - | |
Ordering example
The cable is 15kV, 3-core 95mm^2 copper conductor with core insulation diameter of 22mm. Order WEBIII 15/630D05C3.
Note
Sealing or solderless grounding kits shall be ordered separately
Insulated plug with capacitive test point is available upon request.
Please add "-X" for cable with copper wire shield without armour, like WEBIII 15/630D05C3-X.
Feel free to contact us for detailed information.

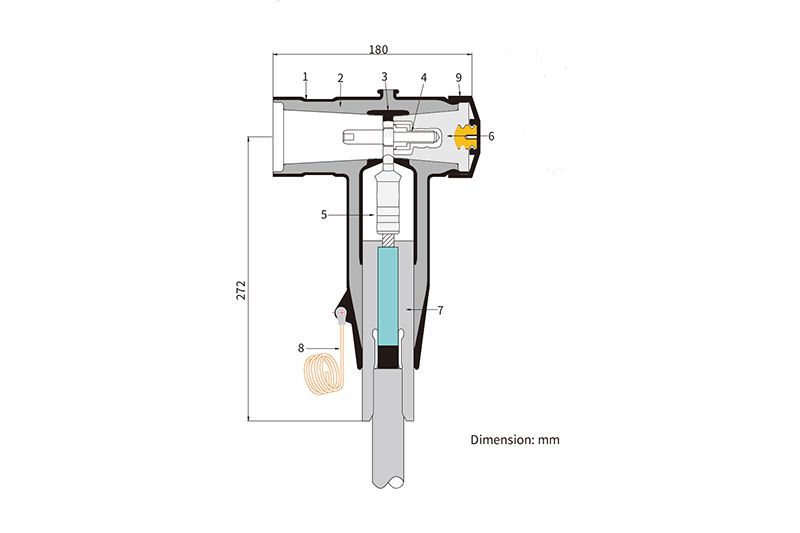

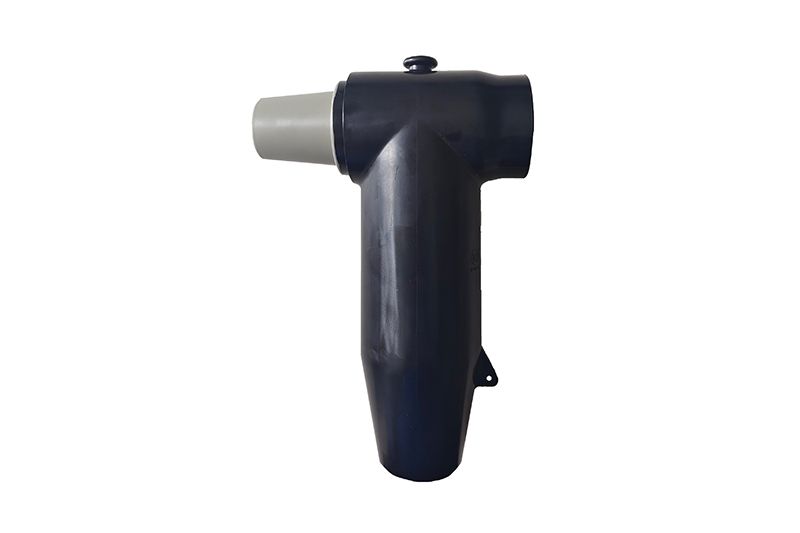

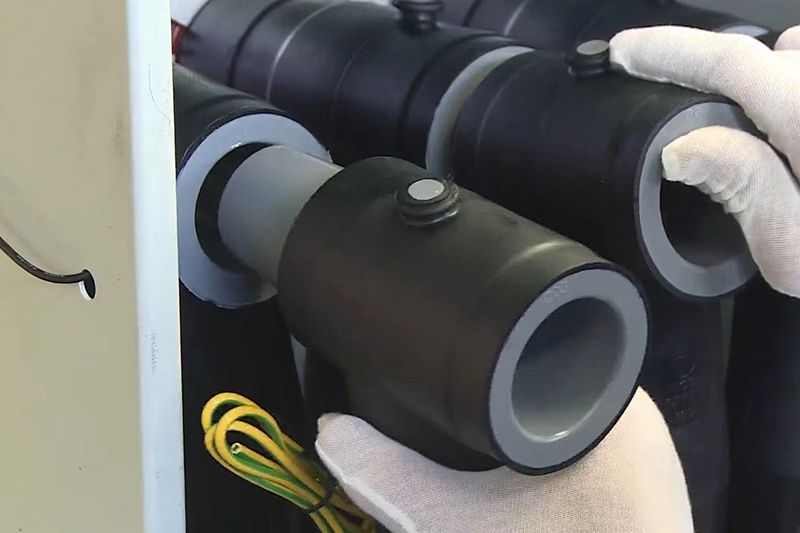

15kV 630A Bolted Separable Rear Connector

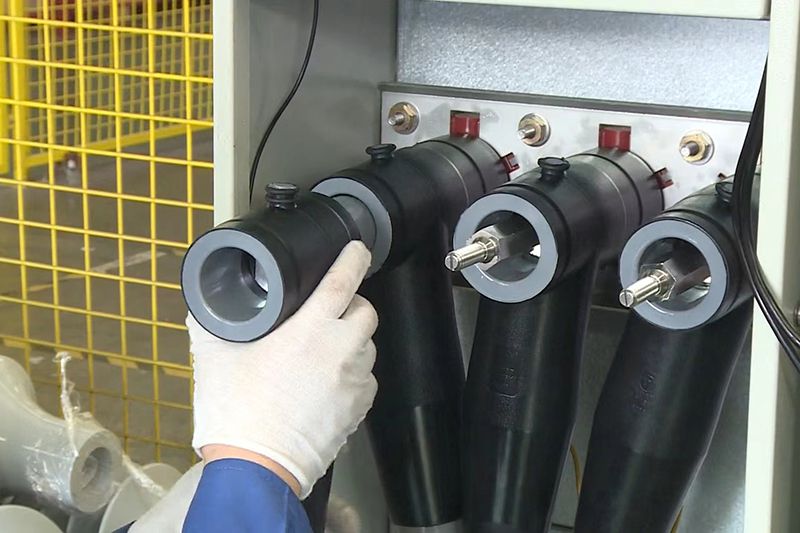

This bolted separable rear connector is suitable for electrical system rated 15kV with continuous current rated 630A. It cannot be directly connected with equipment or bushings. Instead, this rear connector works as a connector extension, operating in step with another one or the one with surge arrester.
- Compact design, 100 mm to another connector, suitable for small bushings;
- No earthing wire, insulation is achieved by rubber and air;
- This separable rear connector is made of premium EPDM that has excellent electrical properties and outstanding mechanical strength. It also features high resistance to tear, ozone gas, oxidation and corrosion;
- This bolted rear connector works with good thermal stability and delivers thermodynamic performance. Its marvelous sealing performance allows for underwater operation;
Rear surge arrester is used to provide over-voltage protection for electrical equipment. Its special design allows for timely minimization of over-voltage caused by lightning.

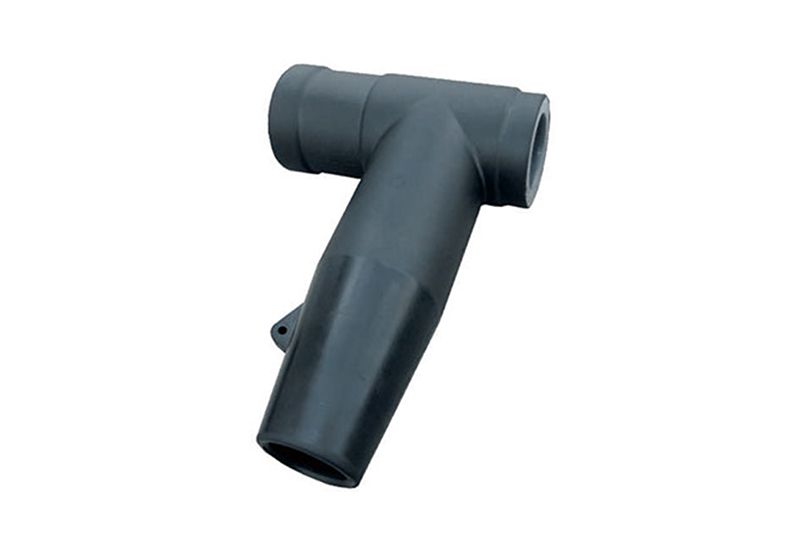

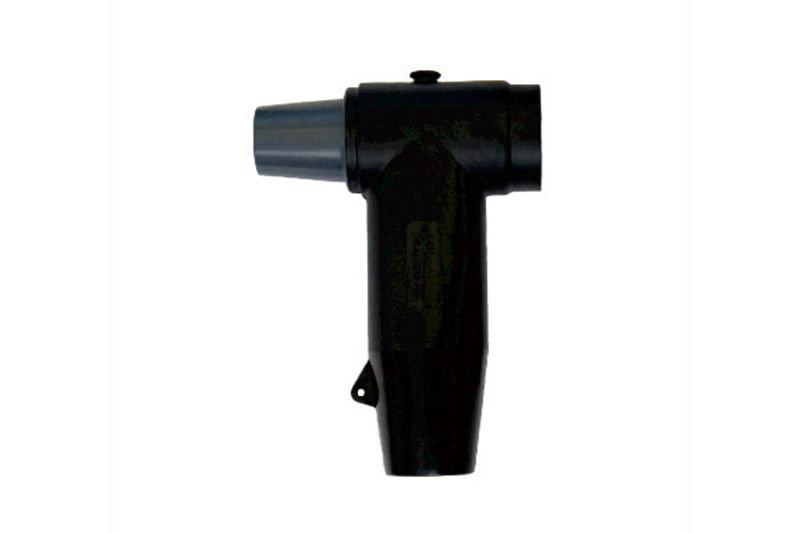

24kV 630A Bolted Separable Tee Connector
This bolted separable tee connector allows cables to be connected together. It is suitable for electrical system rated smaller than 24kV. The Tee connector links cables to interface C bushings, like ring main units, cable branch boxes, transformers and switchgears, which ensures insulation and forms a ring power network. It is made of EPDM and an insulation layer will be moulded between the insert and the jacket after being connected to epoxy-resin-coated cables.
Apart from supplying quality connectors, we will also provide customization services, for instance, the laser engraving of your company’s logo on the surface of the connector. Once you have ordered, we will carry out production at full steam to ensure swift delivery of the products
- Pass all factory tests;
- Meet the requirements of GB/T12706.4, HD629.1 and IEC60502-4;
- Obtain a formal test report issued by a third-party laboratory;
| Voltage Class | 24kV |
| Continuous Current | Up to 630A |
| AC Withstand Voltage | 54kV for 5min |
| Partial Discharge | 20kV,≤10pC |
| Impulse Withstand Voltage (10 times for each polarity) | 125kV |
| Screen Resistance | ≤5000Ω |
| Screen Fault Current Initiation | For solidly/unearthed /impedance earthed system |
24kV 630A Bolted Separable Rear Connector
This bolted separable rear connector is suitable for electrical system rated 24kV with continuous current rated 630A. It cannot be connected with equipment or bushings. Instead, this rear connector works as a connector extension, operating in step with another one or the one with surge arrester.
- Compact design, 100 mm to another connector, suitable for small bushings;
- No earthing wire, insulation achieved by rubber and air;
- This separable rear connector is made of premium EPDM that has excellent electrical properties and outstanding mechanical strength. It also features high resistance to tear, ozone gas, oxidation and corrosion;
- This bolted rear connector works with good thermal stability and delivers thermodynamic performance. Its marvelous sealing performance allows for underwater operation;
This rear surge arrester is used to provide over-voltage protection for electrical equipment. Its special design allows for timely minimization of over-voltage caused by lightning.

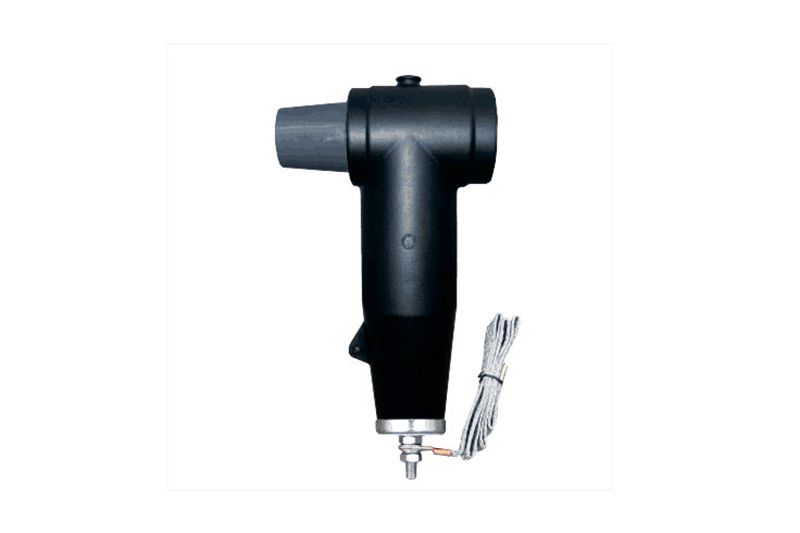

33kV 630A Bolted Separable Tee Connector
Separable Connectors Mated with EN50180&50181
Woer Electric produces a range of separable elbow, straight and tee connector kits.
Our separable connectors are widely used in switchgears, transformers, cabinets and other electrical equipments. This separable rear connector is made of EPDM or silicone rubber with integrated field control.
Woer Electric adopts advanced triple-layer (a conductive inner layer, an insulation layer and a conductive outer layer) injection technique to guarantee the interface property to avoid gaps between layers and decrease partial discharge maximally. Our separable connectors are mainly delivered in 3-phase kit. Each kit contains all the necessary accessories. Every Woer Electric product has been designed and test according to IEC and other industry standards.
| Standard | Description |
| EN 50181 | Plug-in type bushings above 1kV up to 52kV and from 250A to 2.5kA for equipment other than liquid filled transformers |
| EN 50180 | Bushings above 1kV up to 36kV and from 250A to 3.15kA for liquid filled transformers |
| HD629.1 | Test requirements on accessories for used on power cables of rated voltage from 3.6/6(7.2)kV up to 20.8/36(42)kV-Part 1:cables with extruded insulation |
| IEC 60502.4 | Power cable with extruded insulation and their accessories for rated voltages from 1kV(U=1.2kV) up to 30kV(U=36kV)-part 4: test requirements on accessories for cable with rated voltages from 6kV up to 30kV(U=36kV) |
| IEC 60099 | Metal oxide surge arresters without gaps for a.c. systems |
| JB/T 8952 | Polymer-housed metal oxide surge arresters without gaps for a.c. systems |
| Bushing Interface | Interface Description | Standard |
| 250A Series Apparatus Bushing | 250A Plug-in | EN50180&50181 Interface type A |
| 630A Series Apparatus Bushing | 630A Bolted | EN50180&50181 Interface type C |
| 630A outside cone bolted-type bushing | 630A Bolted | EN50180&50181 Interface type E |
33kV 630A Bolted Separable Rear Connector
Separable Connectors Mated with EN50180&50181
Woer Electric produces a range of separable elbow, straight and tee connector kits.
Our separable connectors are widely used in switchgears, transformers, cabinets and other electrical equipments. This separable rear connector is made of EPDM or silicone rubber with integrated field control.
Woer Electric adopts advanced triple-layer (a conductive inner layer, an insulation layer and a conductive outer layer) injection technique to guarantee the interface property to avoid gaps between layers and decrease partial discharge maximally. Our separable connectors are mainly delivered in 3-phase kit. Each kit contains all the necessary accessories. Every Woer Electric product has been designed and test according to IEC and other industry standards.
| Standard | Description |
| EN 50181 | Plug-in type bushings above 1kV up to 52kV and from 250A to 2.5kA for equipment other than liquid filled transformers |
| EN 50180 | Bushings above 1kV up to 36kV and from 250A to 3.15kA for liquid filled transformers |
| HD629.1 | Test requirements on accessories for used on power cables of rated voltage from 3.6/6(7.2)kV up to 20.8/36(42)kV-Part 1:cables with extruded insulation |
| IEC 60502.4 | Power cable with extruded insulation and their accessories for rated voltages from 1kV(U=1.2kV) up to 30kV(U=36kV)-part 4: test requirements on accessories for cable with rated voltages from 6kV up to 30kV(U=36kV) |
| IEC 60099 | Metal oxide surge arresters without gaps for a.c. systems |
| JB/T 8952 | Polymer-housed metal oxide surge arresters without gaps for a.c. systems |
| Bushing Interface | Interface Description | Standard |
| 250A Series Apparatus Bushing | 250A Plug-in | EN50180&50181 Interface type A |
| 630A Series Apparatus Bushing | 630A Bolted | EN50180&50181 Interface type C |
| 630A outside cone bolted-type bushing | 630A Bolted | EN50180&50181 Interface type E |
