Interface A Separable Connector

(250A, European Standard)

This separable connector is used for the connection of cables onto transformers and switchgears. It is made of EPDM and an insulation layer will be moulded between the insert and the jacket after being connected to epoxy-resin-coated cables.

Features
  • Malfunction indicator is optional;
  • Test point is enabled, easy checking of circuit status;
  • Pass all our factory tests;
  • Meet the requirements of IEC60502-4 standards;

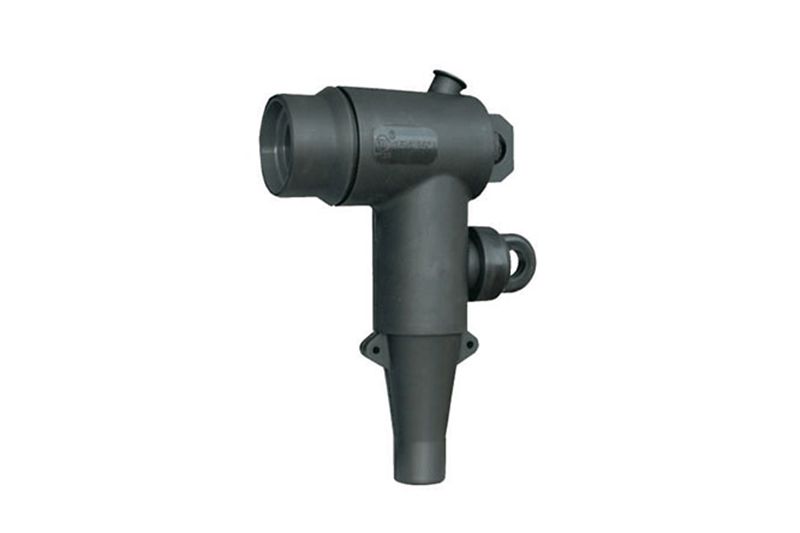

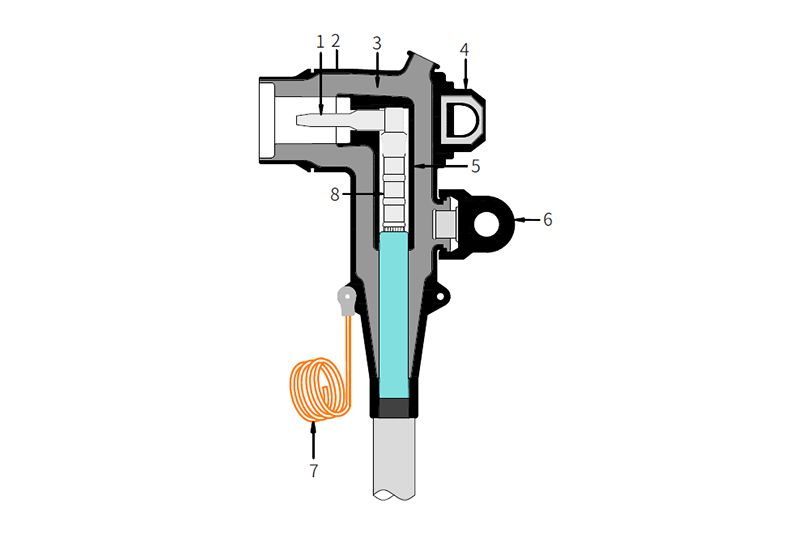

250A Plug-in Elbow Connector
  • 250A Plug-in Elbow Connector
  • 250A Plug-in Elbow Connector

    • 250A Plug-in Elbow Connector

    This plug-in elbow connector allows cables to be connected together. It is suitable for electrical system rated 24kV or 15kV with continuous current rated 250A. This elbow connector is especially applicable for connecting the 250A cables of ring main unit built in accordance with European standards or combined transformer that consists of the unit. The cross-sectional area range reaches 35-120mm2

    Request a Quote
    Download
    Selection Table
    Specification
    Features
    • This plug-in elbow connector is fully sealed and insulated. It is equipped with compression part to ensure steady and reliable performance;
    • Voltage test point can also be installed with a monitor or a malfunction indicator that allows for the display of electrical status and malfunction status;
    • Cold shrink tubes are used between the end of the plug and cables, which effectively avoids moisture ingress;
    • This elbow connector is suitable for interface A equipment;
    • It meets requirements of GB/T12706.4 and IEC60502-4 standards;
    Technical Data
    Voltage Class 12kV 17.5kV 24kV
    Continuous Current 250A 250A 250A
    AC Withstand Voltage 28.5kV for 5min 39kV for 5min 54kV for 5min
    Partial Discharge 11kV,≤10pC 15kV,≤10pC 20kV,≤10pC
    Impulse Withstand Voltage (10 times for each polarity) 95kV 95kV 125kV
    Screen Resistance ≤5000Ω ≤5000Ω ≤5000Ω

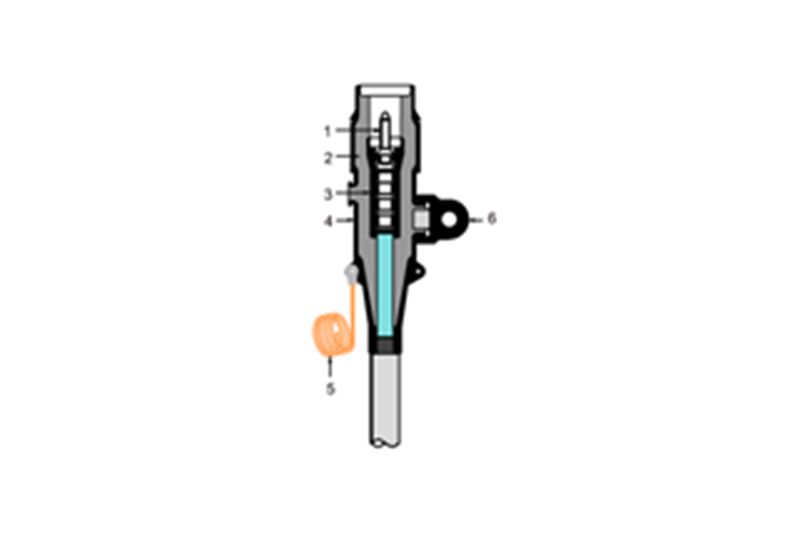

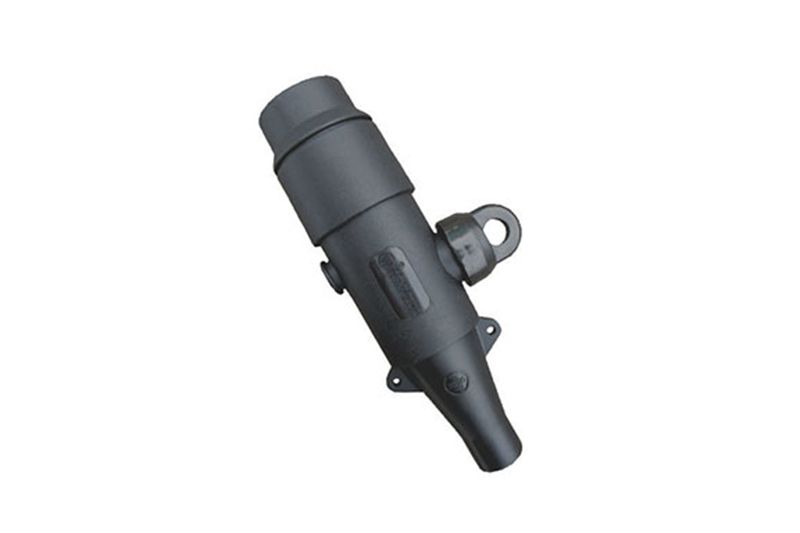

    250A Plug-in Straight Connector
  • Standard Cold Shrink Tube for Telecommunication
  • Standard Cold Shrink Tube for Telecommunication

    • 250A Plug-in Straight Connector

    This plug-in straight connector allows cables to be connected together. It is suitable for electrical system rated 24kV or 15kV with continuous current rated 250A. This elbow connector is especially applicable for connecting the 250A cables of ring main unit built in accordance with European standards or combined transformer that consists of the ring main unit. The cross-sectional area range reaches 35-120mm2

    Request a Quote
    Download
    Features
    • This plug-in straight connector is fully sealed and insulated. It is equipped with compression part to ensure steady and reliable performance;
    • Voltage test point can also be installed with a monitor or a malfunction indicator that allows for the display of electrical status and malfunction status;
    • This straight connector is suitable for interface A;
    • It meets requirements of GB/T12706.4 and IEC60502-4 standards;
    Technical Data
    Voltage Class 12kV 17.5kV 24kV
    Continuous Current 250A 250A 250A
    AC Withstand Voltage 28.5kV for 5min 39kV for 5min 54kV for 5min
    Partial Discharge 11kV, ≤10pC 15kV, ≤10pC 20kV, ≤10pC
    Impulse Withstand Voltage (10 times for each polarity) 95kV 95kV 125kV
    Screen Resistance ≤5000Ω ≤5000Ω ≤5000Ω
    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
