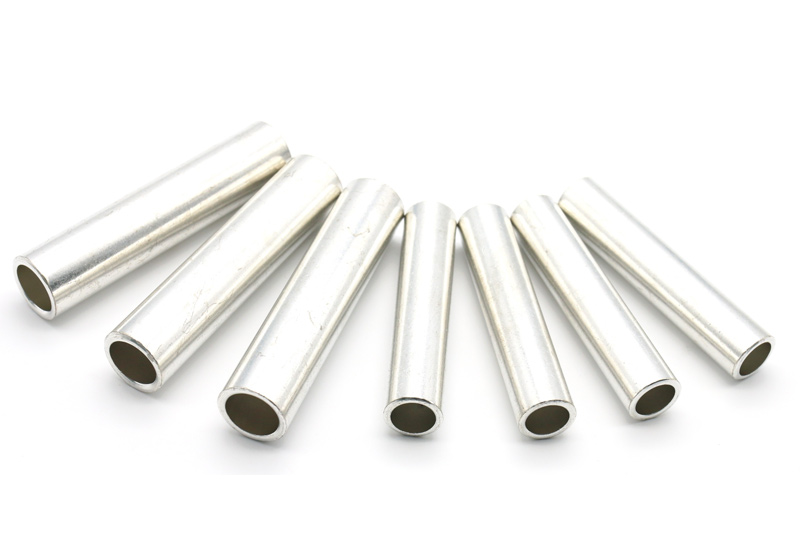

Copper Connector (without barrier), GT-G Series

Copper Connector (without barrier)

GT-G series copper cable lug (straight through lug) can be used to connect the electric wire, the power cable and the electrical equipment of a power distribution. It can also be used with cold and heat shrink outdoor termination kits.

Request a Quote
Download
Product Manual
Test Report of Model GT-G-400
Test Report of Model GT-G-95
Features

The cable lug is made of quality T2 copper rods, with a copper content ≥99.0% and good conductivity performance (conductivity rate ≥98% IACS). The raw copper material meets the national standard of GB/T 5231-2001.

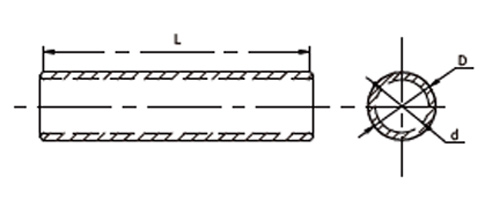

Structure Chart
Copper Connector (without barrier)
Specifications
Model Main dimensions
Outer dimension D Inner dimension d Length L
GT-G-10 8 5.0 50
GT-G-16 9 6.0 56
GT-G-25 10 7.0 60
GT-G-35 12 8.0 64
GT-G-50 14 10.0 72
GT-G-70 16 12.0 78
GT-G-95 18 13.0 85
GT-6-120 20 15.0 90
GT-G-150 22 16.0 94
GT-G-185 25 18.0 100
GT-G-240 27 20.0 110
GT-G-300 31 24.0 120
GT-G-400 34 26.0 135
GT-G-500 38 30.0 150
GT-G-630 45 35.0 170
Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
