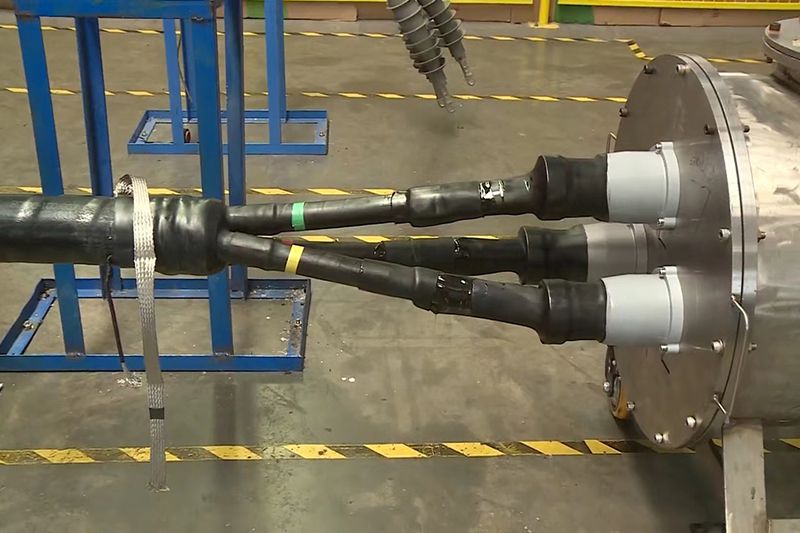

Inner Cone Plug-In Termination

250A Plug-in Elbow Connector
  • Inner Cone Plug-In Termination
  • Inner Cone Plug-In Termination
  • Inner Cone Plug-In Termination

    • Inner Cone Plug-In Termination
    Applications

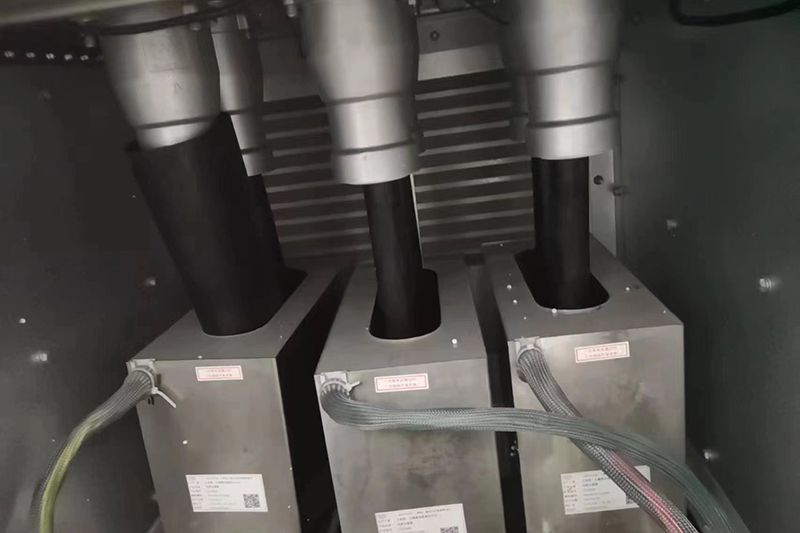

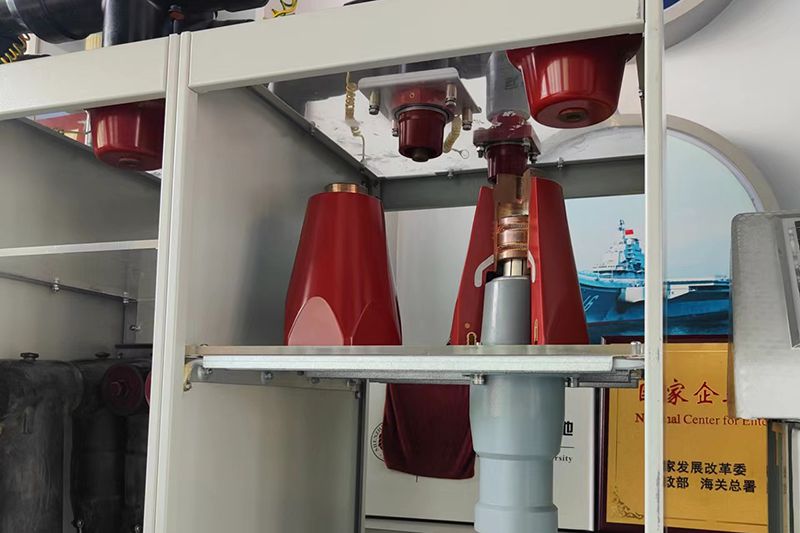

    Applied in 27.5kV traction power supply system, this inner cone plug-in termination is installed in 27.5kV single-phase AC cross-linked polyethylene insulating cable end which functions as 27.5kV C-GIS/GIS high-voltage switchgear inlet and outlet aiming to realize the electrical connection.

    Request a Quote
    Download
    Selection Table
    Test Report
    Features
    • The product dimensions fulfill EN-50181 design standard and the product performance is in compliance with GB/T28427-2012 standard.
    • The drop-in installation within the isolated equipment achieves the hot plugging function during maintenance.
    • The fitting adopts dual contact band design to allow a larger discharge capacity.
    • The insulating body is made of high-quality imported liquid silicone rubber as the base material and molded by high temperature and high-pressure injection technique. The product performs excellently in elasticity, tear resistance, aging resistance, corona resistance, creepage resistance and other aspects. The structure design is optimized and the installation process is outstanding to meet the requirements of the special power supply environment and operating characteristics of the railway electrification system.
    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
