600A Separable Tee Connector

250A Plug-in Elbow Connector
  • 250A Plug-in Elbow Connector
  • 250A Plug-in Elbow Connector
  • 250A Plug-in Elbow Connector

    • 600A Separable Tee Connector

    The separable tee connector is used to connect cables with the American 600A switchgear and electrical cabinet to ensure the power transmission and power system running.

    Request a Quote
    Features
    • When mated with the proper bushing, the separable tee connector made of quality EPDM rubber raw material achieves a fully shielded separable connection.
    • The built-in capacitance testing point makes your circuit status checking easier and it can be installed with a fault indicator.
    • Fully tested and approved by the factory, this product can be the perfect alternative to other products meeting the requirement of ANSI/IEEE 386-2006 standard.

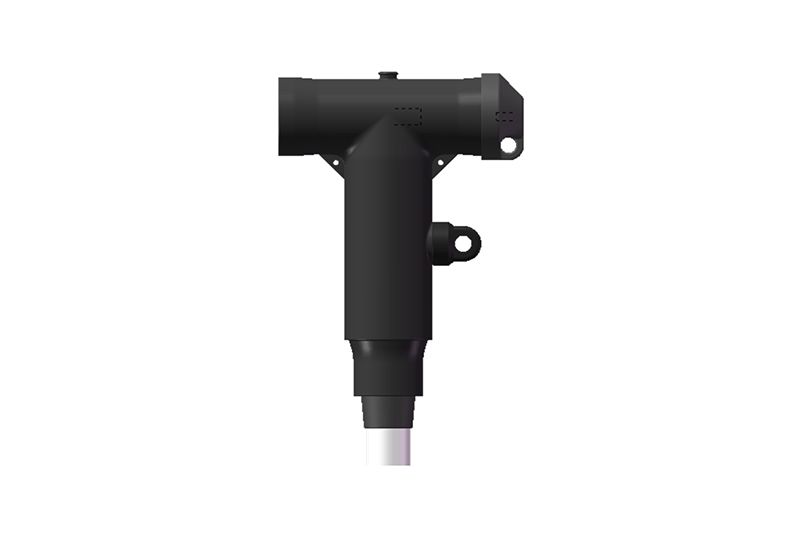

    25kV 600A Separable Tee Connector

    25kV 600A Separable Tee Connector

    Applications
    25kV 600A separable tee connector is applicable in power system at 25kV or below under American standards. It connects cables with electrical equipment, such as ring main unit, cable branch box, transformers, switchgear, etc., to achieve a fully insulated electrical connection between cables and equipment to build a ring network system.

    Request a Quote
    Download

    Meeting IEEE386 standard in the Americas, the separable tee connector features high quality EPDM rubber material to provide fully shielded separable connection after mating with proper epoxy bushing products. Besides, it enjoys excellent mechanical properties. OEM customized service is available such as laser printing of the client company name on the product surface. Fully tested and approved by the factory, the product is directly supplied by the factory to offer you the best performance at the lowest price. The shorter delivery period saves you time and energy.

    35kV 600A Separable Tee Connector

    35kV 600A Separable Tee Connector

    Applications
    35kV 600A Separable Elbow Connector is suitable for power systems at 35kV and below under American standards. It is used to connect cables and electrical equipment, such as ring main units, cable branch boxes, transformers, switchgear, etc., to achieve a fully insulated electrical connection between cables and equipment to build a ring network system.

    Request a Quote
    Download

    Meeting the requirements of IEEE386 standard in the Americas, this product features high quality EPDM rubber material to provide a fully shielded separable connection after mating with proper epoxy bushing products. Besides, it enjoys excellent mechanical properties. OEM customized service is available such as laser printing of the client company name on the product surface. Fully tested and approved by the factory, the product is directly supplied by the factory to offer you the best performance at the lowest price. The shorter delivery period saves you time and energy.

    Technical Data
    Voltage Class 35kV
    Continuous Current 600A
    AC Withstand Voltage 117kV for 5min
    Partial Discharge 45kV, ≤10pC
    Impulse Withstand Voltage (10 times for each polarity) 200kV
    Screen Resistance ≤5000Ω
    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
