Heat Shrink Insulation Tube

Heat Shrink Insulation Tube
  • Heat Shrink Insulation Tube
  • Heat Shrink Insulation Tube

    • Heat Shrink Insulation Tube

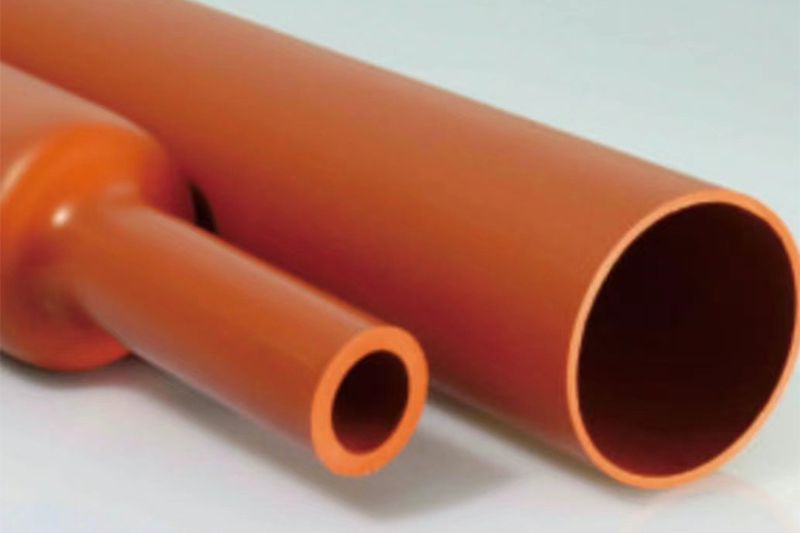

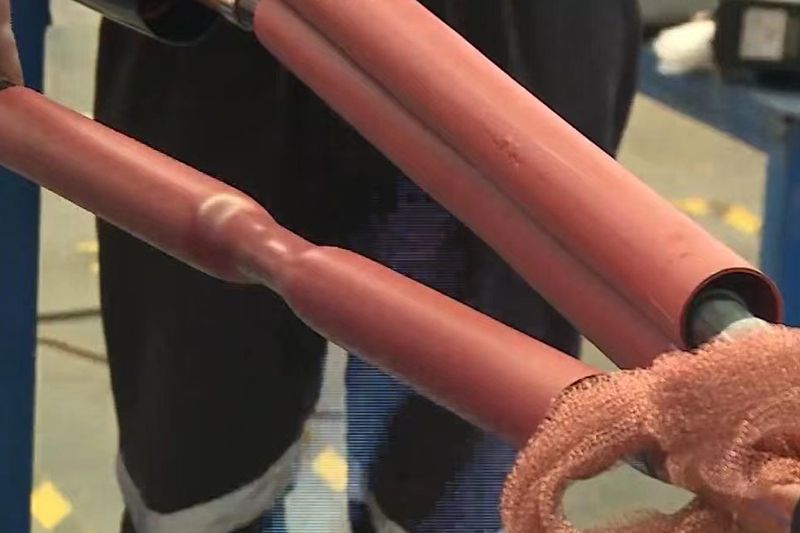

    This heat shrink insulation tube is used to link and protect cables up to 42kV. The insulation tube is made of radiation crosslinked polyolefin and serves as a great protective cover. It begins shrinking when the environmental temperature reaches 90 ℃ and completes the process when the temperature reaches 130℃.

    Request a Quote
    Download
    Technical Data
    Property Test Method Standard Value
    Tensile Strength ASTM-D-638 ≥10MPa
    Elongation at Break ASTM-D-638 ≥350%
    Tensile Strength After Heat Aging (130℃×168h) ASTM-D-5510 ≤±20%
    Elongation at Break After Heat Aging (130℃×168h) ASTM-D-5510 ≤±20%
    Volume Resistivity IEC 60093 ≥1× Ω.cm
    Dielectric Strength IEC 60243 ≥20kV (mm)
    Dielectric Constant IEC 60250 ≤4
    Brittle Temperature ISO 974 -40℃
    Hardness (Shore A) ISO 868 ≥80
    Heat Shock 160℃, 4h No Crack
    Longitudinal Shrinkage ASTM-D-2671 ≤10%
    Eccentricity ASTM-D-2671 ≤30%
    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
