Heat Shrink Anti-Tracking Insulation Tube

Heat Shrink Anti-Tracking Insulation Tube
  • Heat Shrink Anti-Tracking Insulation Tube
  • Heat Shrink Anti-Tracking Insulation Tube

    • Heat Shrink Anti-Tracking Insulation Tube

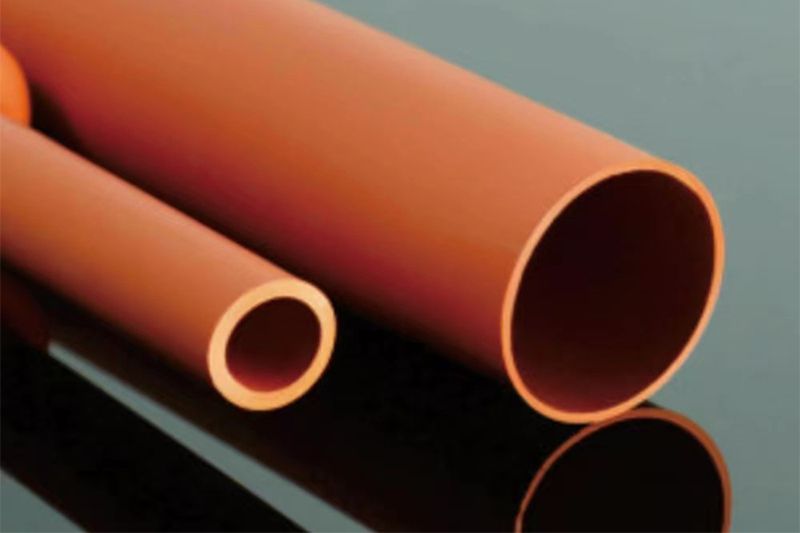

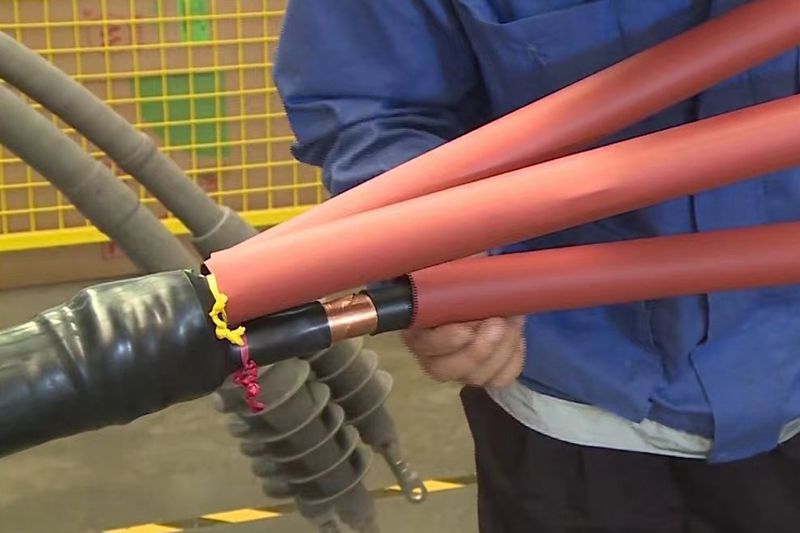

    This heat shrink anti-tracking insulation tube is made of cross-linked polyolefin (XLPO), with one end coated with adhesives. This heat shrinkable tube is applicable to cables up to 42kV. To be specific, it protects cables inside and avoids accidental flashover. The operating temperature ranges from 90℃ to 130℃.

    Request a Quote
    Download
    Technical Data
    Property Test Method Standard Value
    Tensile Strength ASTM-D-638 ≥8MPa
    Elongation at Break ASTM-D-638 ≥300%
    Tensile Strength After Heat Aging (130℃×168h) ASTM-D-5510 ≤±30%
    Elongation at Break After Heat Aging (130℃×168h) ASTM-D-5510 ≤±30%
    Volume Resistivity IEC 60093 ≥1× Ω.cm
    Dielectric Strength IEC 60243 ≥20kV (mm)
    Tracking Resistance IEC 60587 1A3.5
    Dielectric Constant IEC 60250 ≤5
    Heat Shock 160℃, 4h No Crack
    Water Absorption (23±2)℃ 24h ISO 62 ≤0.1%
    Hardness (Shore A) ISO 868 ≥80
    Brittle Temperature ISO 974 -40℃
    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
