Heat Shrink Boot

Heat Shrink Boot
  • Heat Shrink Boot
  • Heat Shrink Boot

    • Heat Shrink Boot

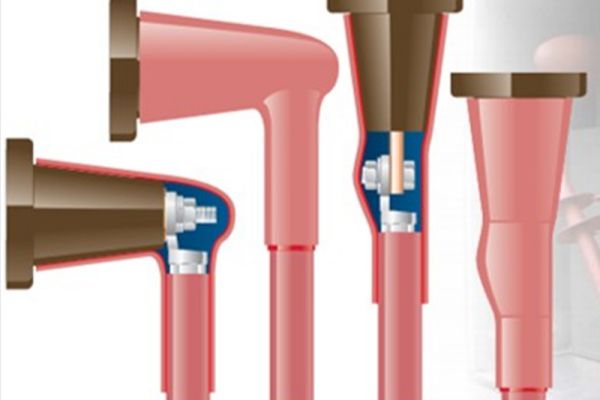

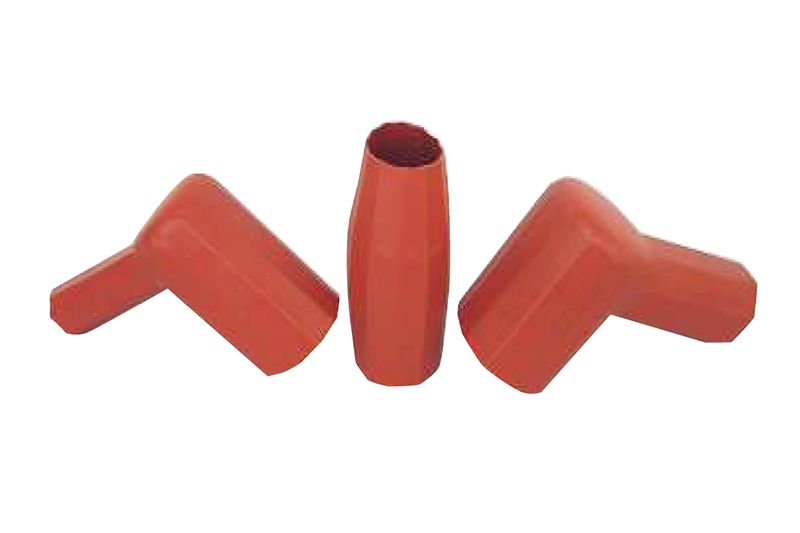

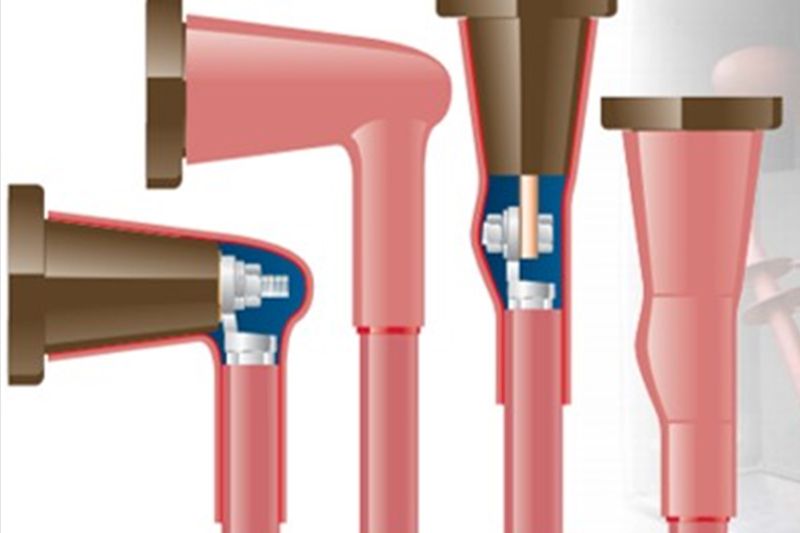

    This heat shrink boot is used for the insulation and sealing of joints linking cable terminations to equipment. It is made of light and non-toxic polyolefin that has prominent dielectric properties, brilliant insulation performance and outstanding resistance to chemical corrosion. In addition, non-toxic and flame-retardant adhesives are smeared on the end of the inner wall to make a close bond with the cables. Different shapes of components are supplied to meet a range of requirements.

    Request a Quote
    Download
    Selection Table
    Specification
    Technical Data
    Property Test Method Standard Value
    Tensile ASTM-D-638 ≥10MPa
    Elongation ASTM-D-638 ≥300%
    Tensile Strength After Heat Aging (130℃×168h) ASTM-D-5510 ≤±20%
    Elongation at Break After Heat Aging (130℃×168h) ASTM-D-5510 ≤±20%
    Volume Resistivity IEC 60093 ≥1x Ω.cm
    Dielectric Strength IEC 60243 ≥25kV (mm)
    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
