Busbar Insulating Shroud

Busbar Insulating Shroud
  • Busbar Insulating Shroud
  • Busbar Insulating Shroud
  • Busbar Insulating Shroud

    • Busbar Insulating Shroud

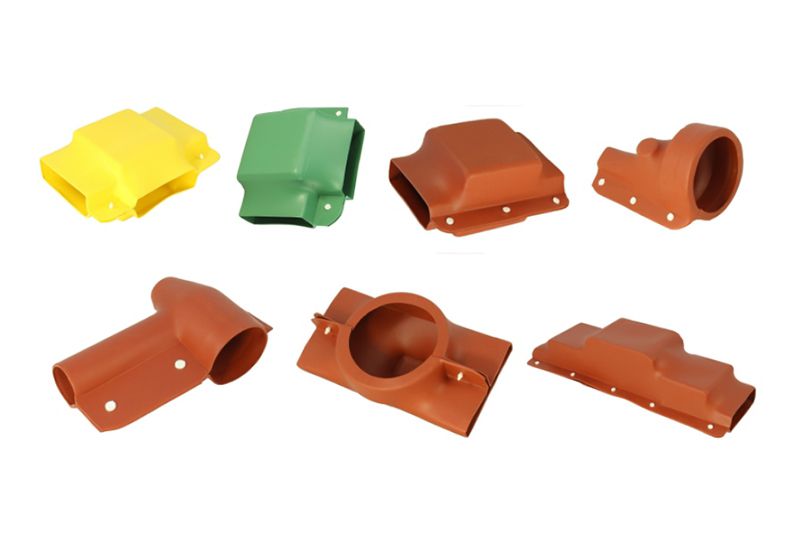

    Polyethylene protective insulating cover is widely used in the insulation of high and low voltage copper busbar connections in indoor and outdoor substations. Our product is heat-shrinkable, which can be used for conventional taping or tubing. The busbar insulating shroud can effectively prevent short-circuit faults, as well as personal injury or death caused by exposed electrical contacts.

    Request a Quote
    Download
    Applications

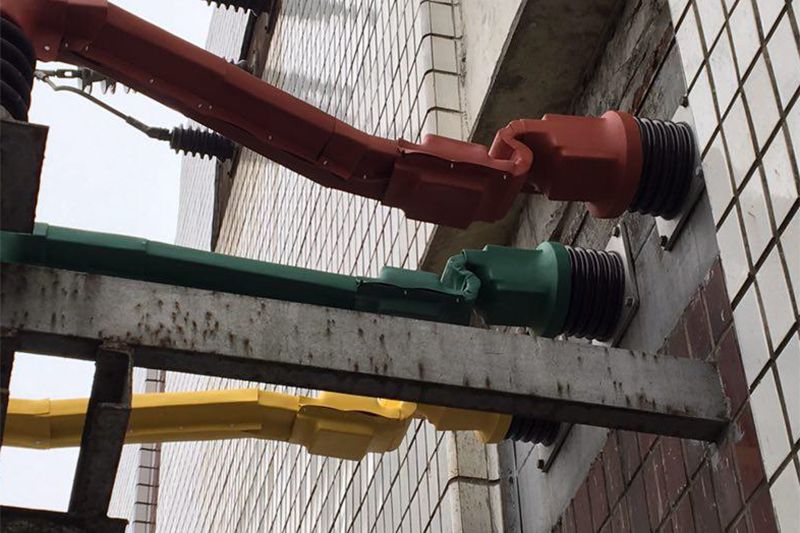

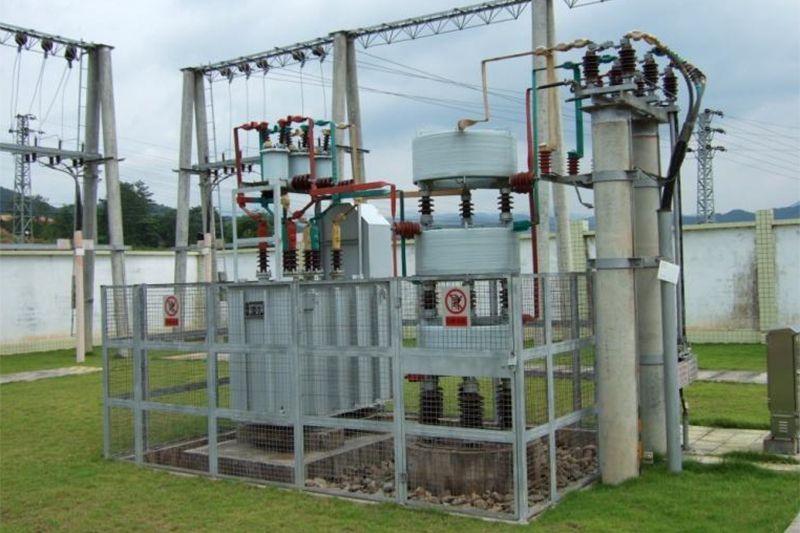

    Our busbar insulating shroud can be used for insulating busbar and switchgear joints like tees or elbows in electrical applications of panel boards, as well as overhead lines. Also, it is applicable for indoor and outdoor substations.

    Features
    • Our busbar insulating shroud has excellent insulation performance, which the polyethylene material has characteristics of leakage resistance, corrosion resistance, corona resistance, and tear resistance.
    • The product is both heat-resistant and cold-resistant. Generally, it can be used in the temperature range of -60~60°C.
    • Normally, we have color choices of red, yellow, green, and black, but other colors can also be customized.
    Technical Data
    Property Test Method Standard Value
    Heat Shock (160℃×4h) JB/T 7829 No Crack
    Tensile Strength GB/T 1040 ≥8MPa
    Elongation at Break GB/T 1040 ≥300%
    Tensile Strength After Heat Aging (130℃×168h) GB/T 7141 ≤±20%
    Elongation at Break After Heat Aging (130℃×168h) GB/T 7141 ≤±20%
    Flammability (Oxygen Index) GB/T 2406 ≥30%
    Hardness (Shore A) GB/T 2411 ≤90
    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
