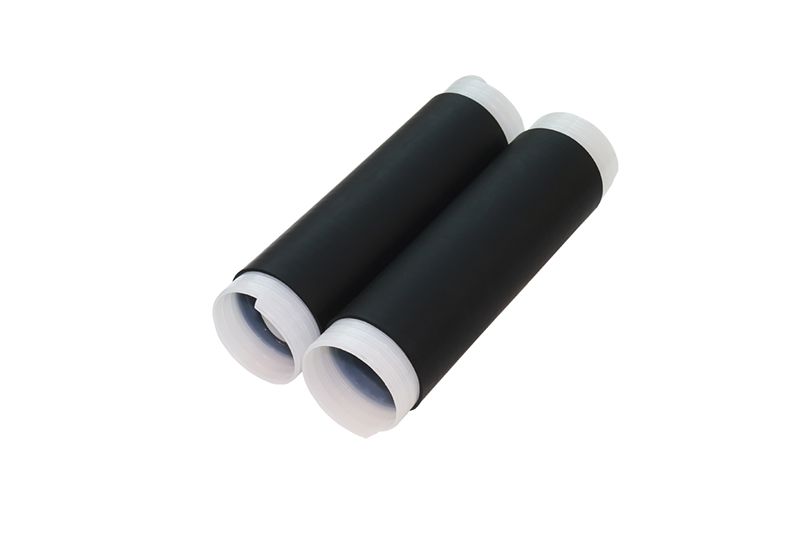

EPDM Cold Shrink Tube

This EPDM cold shrink tube is aimed to seal and protect against chemical corrosion communication cables, coaxial cables and LV&MV cables. It is easy to install and the shrinkage requires no flame nor heating.

Request a Quote

Download

Selection Table

Specification

Features

Complete range of specifications are available;

Customization services are provided；

Made of EPDM, resistant to extreme weathers, salt spray, mechanical force and wear&tear;

Technical Data

Material Property

Item	Unit	Typical Value	Test Method
Texture of Material	/	EPDM	/
Nominal Color	/	Black	/
Hardness	Shore A	38	ISO 7619
Tensile Strength	MPa	8.0	ISO 37
Elongation at Break	％	750	ISO 37
Tear Strength	KN/m	32	ISO 34
Electric Strength	KV (mm)	14	IEC 60243
Volume Resistivity	Ω.mm	1×	IEC 660093

Remark: Above result is based on test pieces

Product Reliability

Item	Property Index	Result
Seal and Protection Property at Environment Temperature	IP67	PASS
Service Temperature	-35~90℃

Remark: During the storage period, pay attention to prevent rain, sunshine, heavy pressure and sharp body.

Dimensions

Cold Shrink Tube of General EDPM
Product No.	Size	Application Range (mm/inch)	Length after Relaxed(mm/inch)	Material	Color
8320-L	Ø20	8~15/0.30~0.59	50~550/2~22	EPDM Rubber	Black
8325-L	Ø25	10~20/0.39~0.79	50~550/2~22	EPDM Rubber	Black
8335-L	Ø35	14~30/0.55~1.18	50~550/2~22	EPDM Rubber	Black
8340-L	Ø40	17.5~33/0.69~1.30	50~550/2~22	EPDM Rubber	Black
8353-L	Ø53	25~46/0.98~1.81	50~550/2~22	EPDM Rubber	Black
8370-L	Ø70	32~63/1.26~2.48	50-470/2~18	EPDM Rubber	Black
8104-L	Ø104	43~94/1.69~3.70	50-470/2~18	EPDM Rubber	Black
8125-L	Ø125	46~114/1.81~4.49	50-470/2~18	EPDM Rubber	Black
8150-L	Ø150	55~135/2.17~5.31	50-470/2~18	EPDM Rubber	Black
Cold Shrink Tube of General EDPM
Product No.	Size	Application Range (mm/inch)	Length after Relaxed(mm/inch)	Material	Color
8435-L	Ø35	12.5~30/0.49~1.18	50~550/2~22	EPDM Rubber	Black
8440-L	Ø40	14~33/0.55~1.30	50~550/2~22	EPDM Rubber	Black
8453-L	Ø53	19~46/0.75~1.81	50~550/2~22	EPDM Rubber	Black
8470-L	Ø70	25~63/0.98~2.48	50-470/2~18	EPDM Rubber	Black
8480-L	Ø80	27.4~70/1.08~2.75	50-470/2~18	EPDM Rubber	Black
