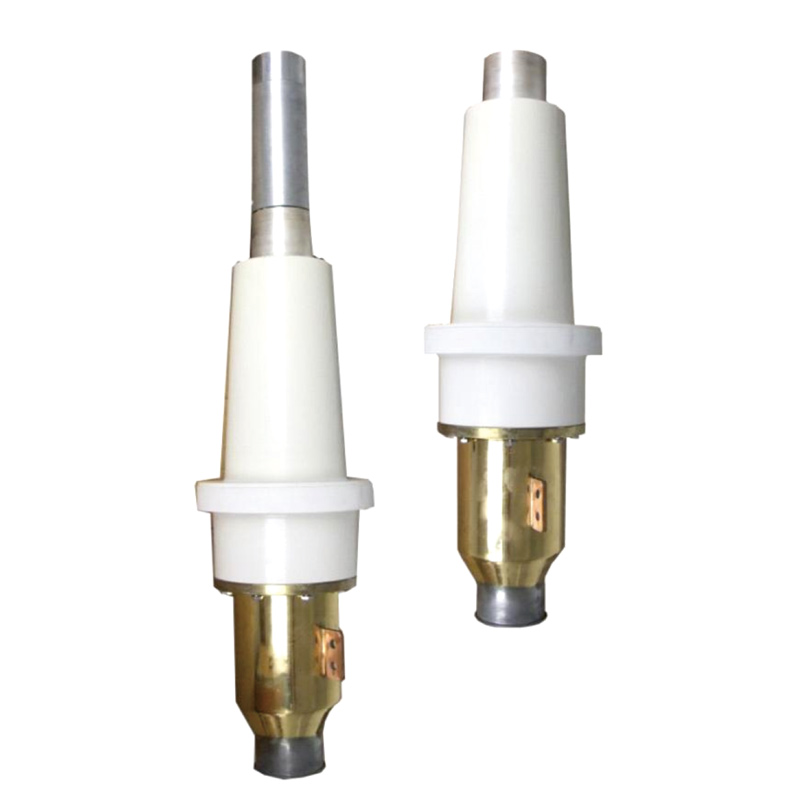

Dry Plug-in GIS Termination, 72.5kV-252kV

Dry Plug-in GIS Termination
Scope of Application
  • Model: WYJZGGC
  • Suitable for indoor use
  • Rated voltage: 72.5kV (applicable to 120-1600mm²)
    126kV (applicable to 240-1600mm²)
    145kV (applicable to 240-1600mm²)
    252kV (applicable to 400-2500mm²)
Request a Quote
Download
Test Report
Product Manual
Features
  • The termination connects the cable in a plug-in style, simplifying the installation and maintenance;
  • Compact structure, light weight, and small volume, greatly reducing the installation space;
  • The stress cone of the cable termination is made of imported EPDM through rubber injection molding, and is secured into the epoxy insulator by a spring cone;
  • In terms of the stress cone surface, measures have been taken to solve the problems caused by aging-induced relaxation and poor contact between the stress cone and the out semi-conducting layer of the cable, ensuring the long-term and stable operation of the cable termination;
  • Dry structure avoids any leakage;
  • This cable termination can be used to connect the power cable with the transformer;
  • After adding an extension rod, the short-type plug-in GIS terminal can be used in conjunction with GIS equipment that is compatible with the long-type GIS termination;
  • Test standard of IEC 60840, IEC 62067, and GB/T 18890;

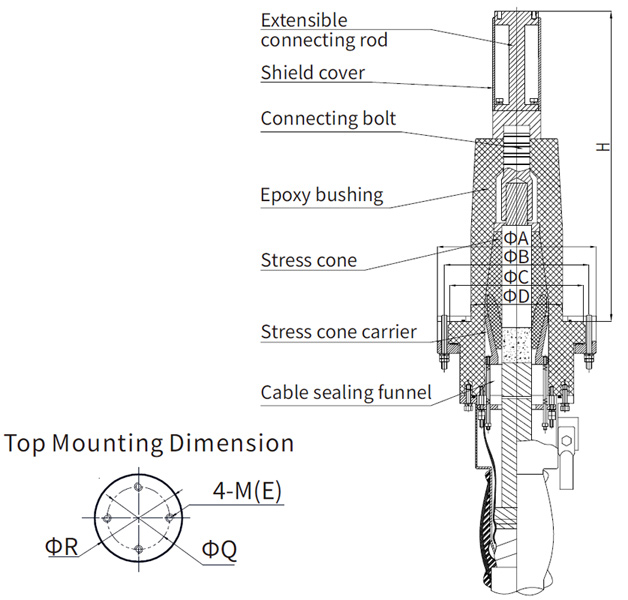

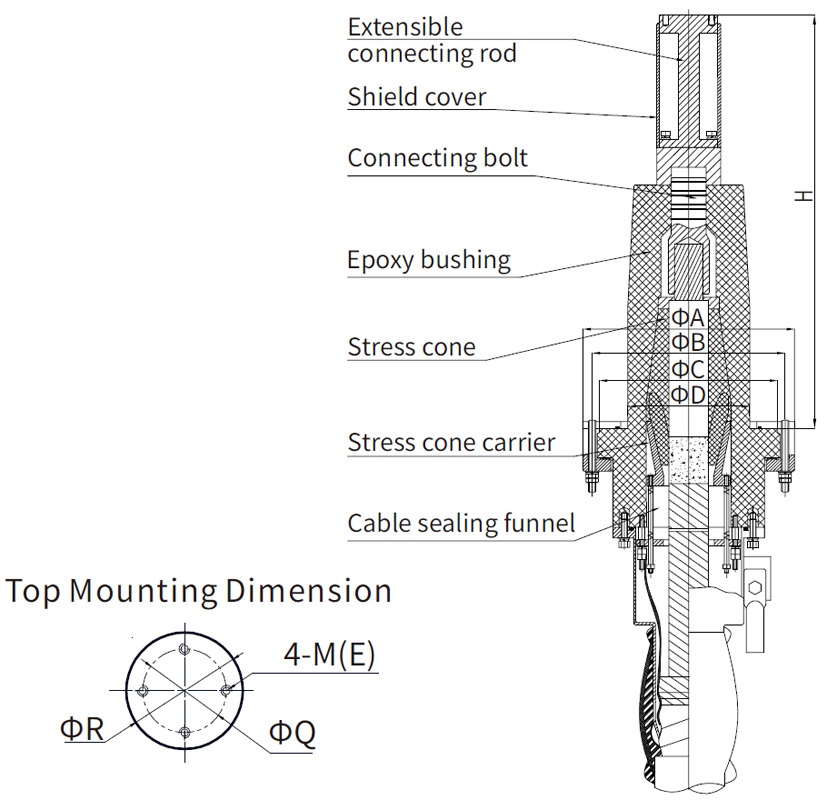

Termination Dimensions
Termination Dimensions
Max. system Voltage 72.5kV 126kV 145kV 252kV 252kV
A (mm) 300 350 350 500 620
B (mm) 270 320 320 475 582
C (mm) 245 298 298 454 559
D (mm) 185 210 210 340 340
E (mm) 10 10 10 12 12
H (mm) 310/583 470/757 470/757 620 920
Q (mm) 80 80 80 110 110
R (mm) 110 110 110 160 200
Notice When Ordering:
  • Cable configuration and the cross-sectional area of earth wire shall be provided when ordering.
  • All GIS termination and GIS composite apparatus produced by our company are strictly comply with IEC 62271-209 and GB/T 22381.When placing an order, please provide the necessary information, such as the executive standards and interface height or assembly drawing of the GIS composite apparatus, to ensure that the corresponding dimensions match up.
Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
