Straight Through Joint & Shield-Break Joint, 72.5kV-252kV

Straight Through Joint & Shield-Break Joint
  • Straight Through Joint & Shield-Break Joint
  • Straight Through Joint & Shield-Break Joint
    • Scope of Application

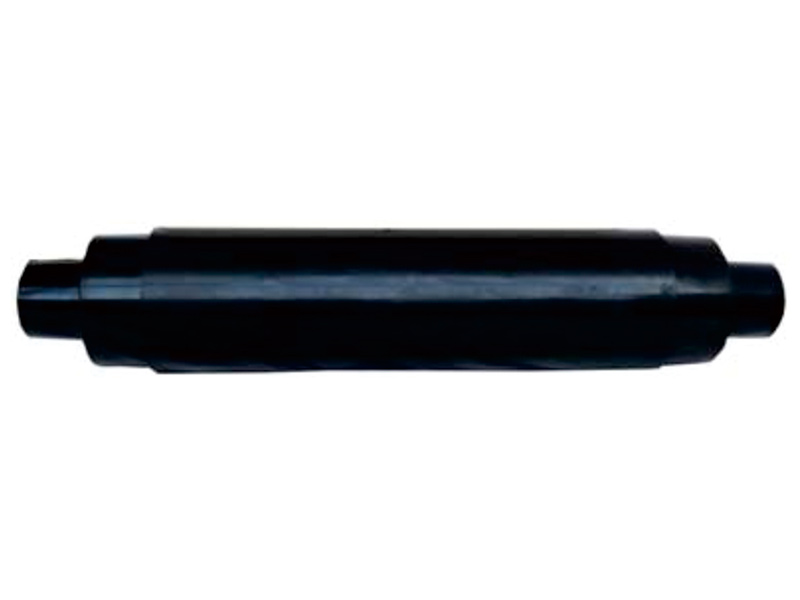

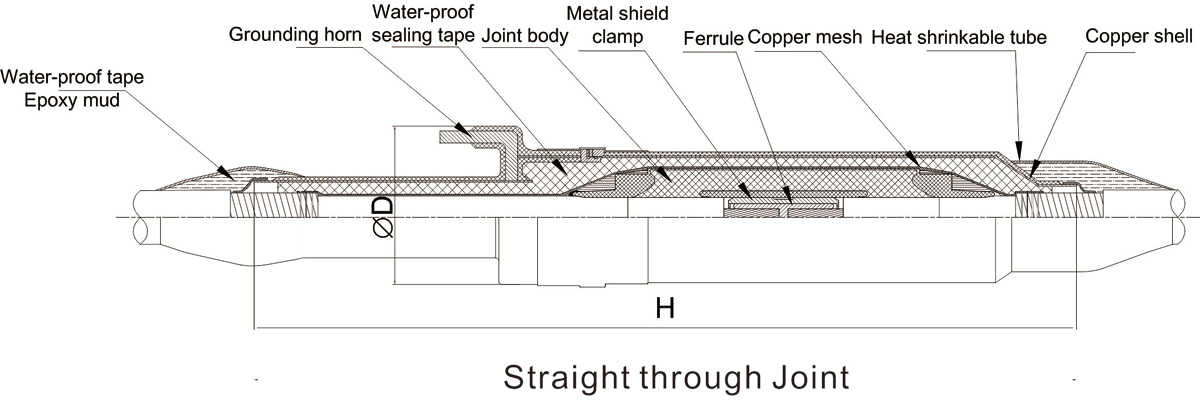

    • Straight through joint: WYJJTI

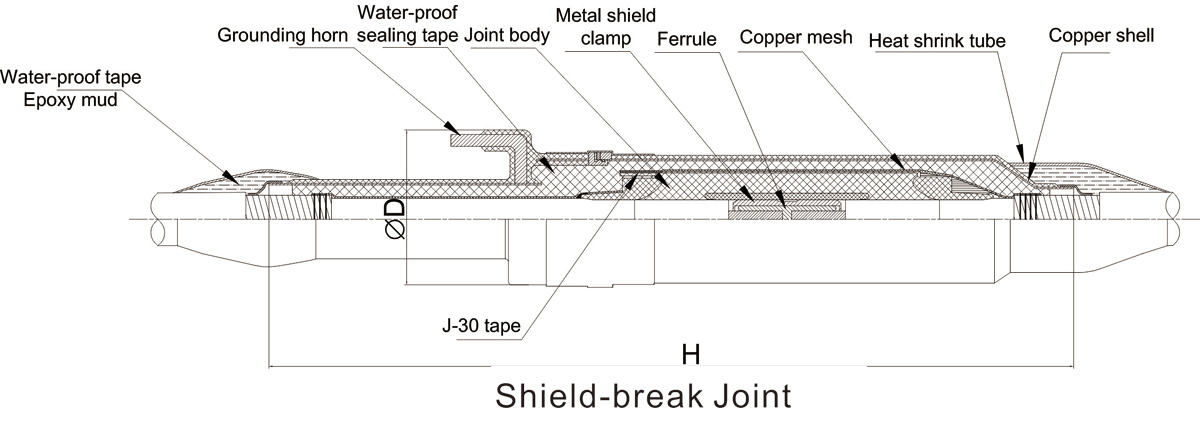

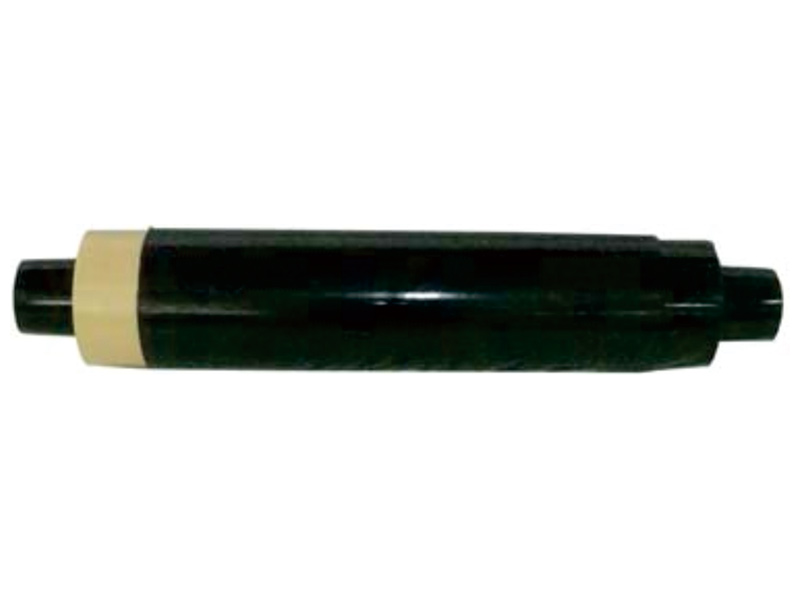

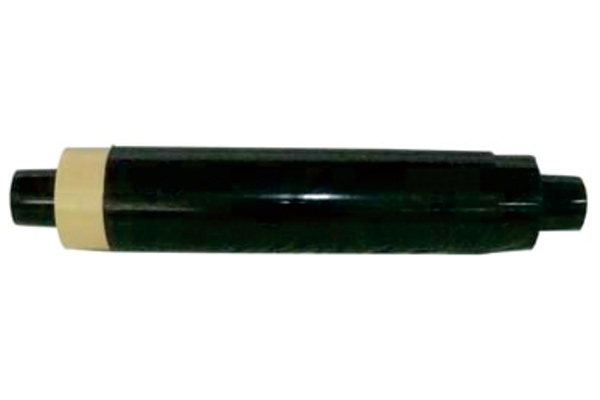

    • Shield-break joint: WYJJJI
    • Rated voltage: 72.5kV (applicable to 120-1600mm²)
      126kV (applicable to 240-1600mm²)
      145kV (applicable to 240-1600mm²)
      252kV (applicable to 400-2500mm²)
    Request a Quote
    Download
    Test Report
    Test Report
    Product Manual
    Features
    • The external protection layer adopts a high-strength protective shell and a waterproof and insulation sealing structure, which has good mechanical and sealing properties and excellent corrosion resistance, ensuring long-term and safe running under harsh environments;
    • The joint is compact and easy to install, the creepage distance inside the rubber insulation is long and the design margin is large, guaranteeing long-term operation, especially in a particularly damp area.
    • Good explosion-proof performance, which prevents fragmentation from accidents and endangers personal and equipment safety.
    • The outmost layer is protected by a GRP enclosure and the interior is painted with waterproof adhesives to strengthen the resistance to water and explosion.
    • Type tested according to IEC 60840, GB/T 11017, IEC 62067, and GB/T 18890.
    Straight Through Joint & Shield-Break Joint
    Straight Through Joint & Shield-Break Joint
    Dimensions
    Max. system voltage H (mm) D (mm)
    72.5-145kV 1600 270
    252kV 2100 370
    Notice When Ordering:
    • Cable configuration and the cross-sectional area of earth wire shall be provided when ordering.
    • Welcome to contact our sales manager for any special requirements before placing your order.
