Cold Applied Insulation Boot

Cold Applied Insulation Boot
  • Cold Applied Insulation Boot
  • Cold Applied Insulation Boot

    • Cold Applied Insulation Boot

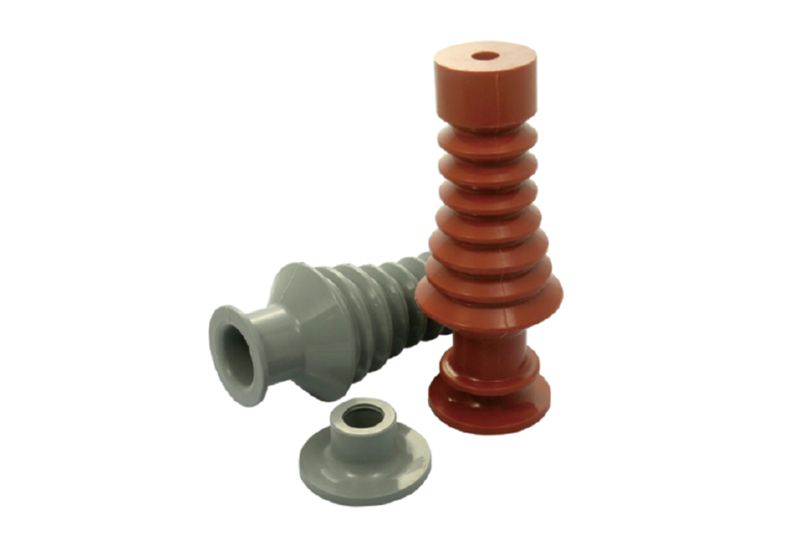

    Silicone rubber insulating boots are also called cold application insulating boots. The product can be used in switchgear and transformers with insufficient clearance to operate in air or to prevent flashovers due to rodents or extreme humidity.

    Request a Quote
    Download
    Applications

    The highly elastic insulating boots made of silicone can be installed between the cable lug and the bushing to prevent the metal parts, such as terminals, from being oxidized and corroded. Moreover, the insulating boots are also used to ensure the insulation between the phases.

    Features
    • The insulating boots are quick and easy to be installed, removed and replaced. During the installation, no special tools are required.
    • The product has unlimited shelf life.

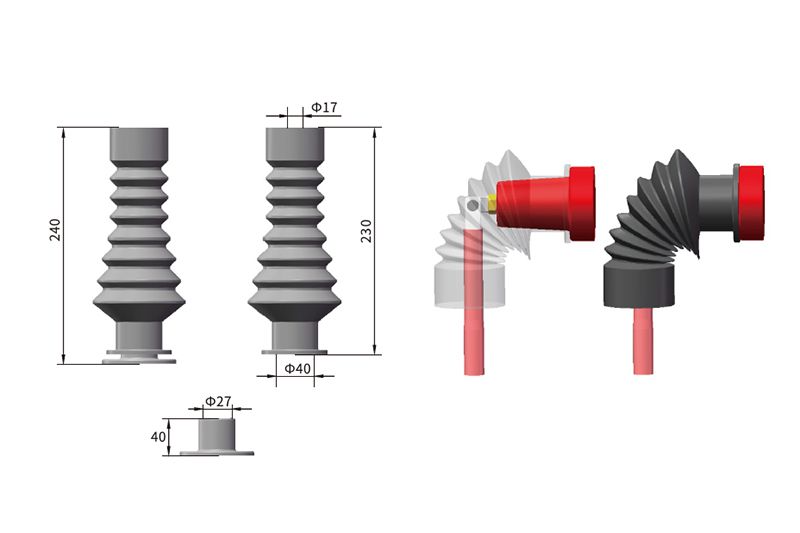

    • One product can be used for either straight or right-angled configuration.
    • The specific requirements for size and color can be customized.
    Technical Data
    Maximum System Voltage 17.5kV
    Basic Impulse Level 95kV
    Collar Size 27mm
    Bushing Diameter 31-45mm
    Bushing Types 250A/630A
    Cable Cross Section 35-400mm2
    Woer Electric has been engaged for 20 years in the development, manufacture and market of power cable accessories and shrinkable tubing products. We can custom-manufacture heat shrink accessories and cold shrinkable accessories to match your unique requirements for cable terminating and jointing applications. Our wide range of shrinkable tubing products includes cable jointing kits, heat shrink cable joints, cold shrink moulded shapes, heat shrink termination kits and many other types of telecommunication cable accessories and power cable tubing. Choosing the right cable accessories among the many that are offered on the market is challenging. Our team of cable accessories experts is happy to assist if you are having a trouble finding the suitable cable accessories for your cable types.
